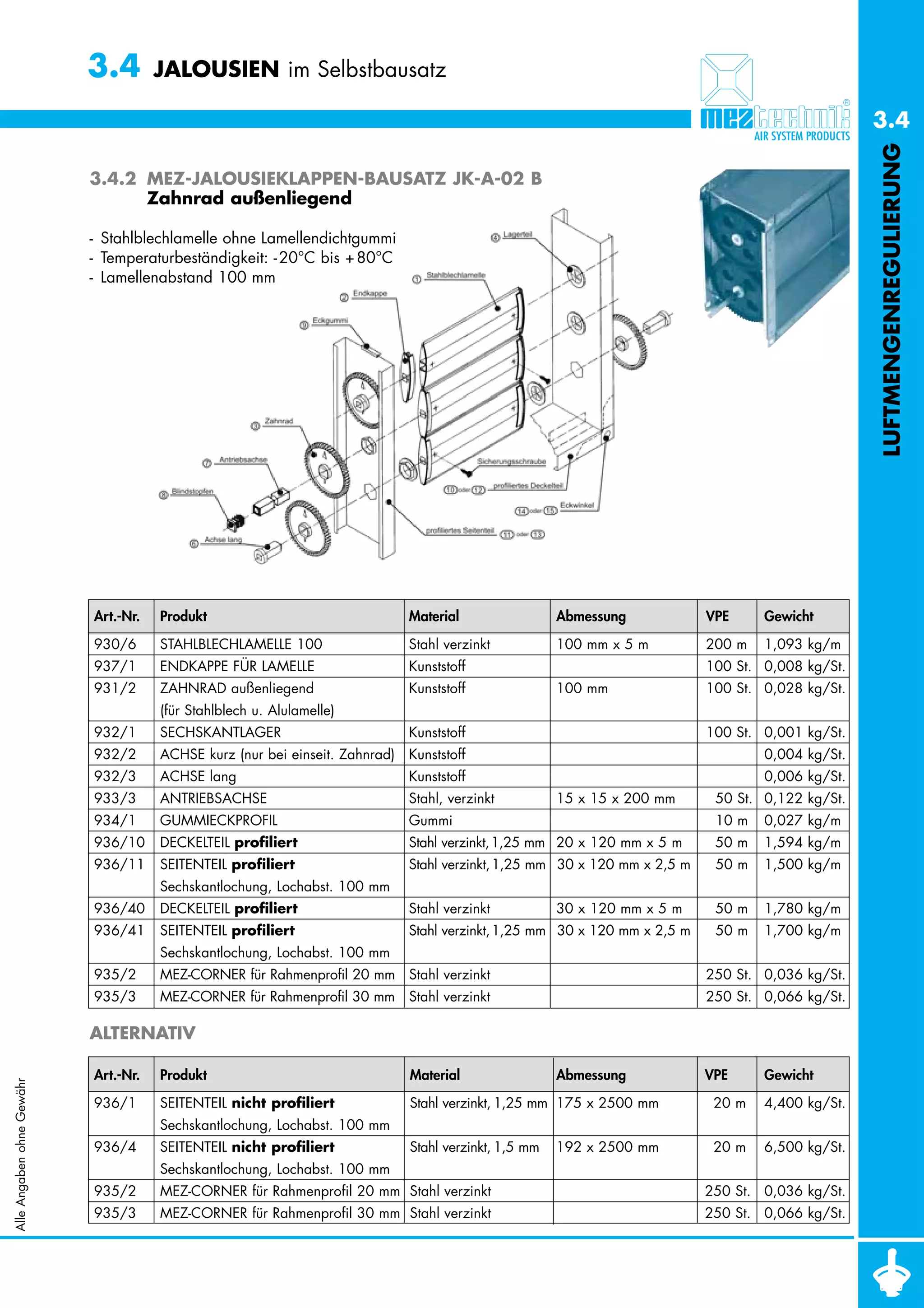

1. 3.4 JALOUSIEN im Selbstbausatz
3.4
LUFTMENGENREGULIERUNG
3.4.2 MEZ-JALOUSIEKLAPPEN-BAUSATZ JK-A-02 B
Zahnrad außenliegend
- Stahlblechlamelle ohne Lamellendichtgummi
- Temperaturbeständigkeit: - 20°C bis + 80°C
- Lamellenabstand 100 mm
Art.-Nr. Produkt Material Abmessung VPE Gewicht
930/6 STAHLBLECHLAMELLE 100 Stahl verzinkt 100 mm x 5 m 200 m 1,093 kg/m
937/1 ENDKAPPE FÜR LAMELLE Kunststoff 100 St. 0,008 kg/St.
931/2 ZAHNRAD außenliegend Kunststoff 100 mm 100 St. 0,028 kg/St.
(für Stahlblech u. Alulamelle)
932/1 SECHSKANTLAGER Kunststoff 100 St. 0,001 kg/St.
932/2 ACHSE kurz (nur bei einseit. Zahnrad) Kunststoff 0,004 kg/St.
932/3 ACHSE lang Kunststoff 0,006 kg/St.
933/3 ANTRIEBSACHSE Stahl, verzinkt 15 x 15 x 200 mm 50 St. 0,122 kg/St.
934/1 GUMMIECKPROFIL Gummi 10 m 0,027 kg/m
936/10 DECKELTEIL profiliert Stahl verzinkt, 1,25 mm 20 x 120 mm x 5 m 50 m 1,594 kg/m
936/11 SEITENTEIL profiliert Stahl verzinkt, 1,25 mm 30 x 120 mm x 2,5 m 50 m 1,500 kg/m
Sechskantlochung, Lochabst. 100 mm
936/40 DECKELTEIL profiliert Stahl verzinkt 30 x 120 mm x 5 m 50 m 1,780 kg/m
936/41 SEITENTEIL profiliert Stahl verzinkt, 1,25 mm 30 x 120 mm x 2,5 m 50 m 1,700 kg/m
Sechskantlochung, Lochabst. 100 mm
935/2 MEZ-CORNER für Rahmenprofil 20 mm Stahl verzinkt 250 St. 0,036 kg/St.
935/3 MEZ-CORNER für Rahmenprofil 30 mm Stahl verzinkt 250 St. 0,066 kg/St.
ALTERNATIV
Art.-Nr. Produkt Material Abmessung VPE Gewicht
Alle Angaben ohne Gewähr
936/1 SEITENTEIL nicht profiliert Stahl verzinkt, 1,25 mm 175 x 2500 mm 020 m 4,400 kg/St.
Sechskantlochung, Lochabst. 100 mm
936/4 SEITENTEIL nicht profiliert Stahl verzinkt, 1,5 mm 192 x 2500 mm 020 m 6,500 kg/St.
Sechskantlochung, Lochabst. 100 mm
935/2 MEZ-CORNER für Rahmenprofil 20 mm Stahl verzinkt 250 St. 0,036 kg/St.
935/3 MEZ-CORNER für Rahmenprofil 30 mm Stahl verzinkt 250 St. 0,066 kg/St.

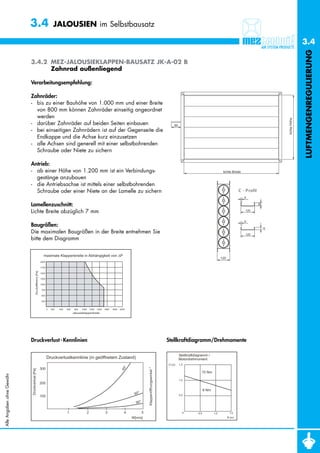

2. 3.4 JALOUSIEN im Selbstbausatz
3.4
LUFTMENGENREGULIERUNG
3.4.2 MEZ-JALOUSIEKLAPPEN-BAUSATZ JK-A-02 B
Zahnrad außenliegend
Verarbeitungsempfehlung:
Zahnräder:
- bis zu einer Bauhöhe von 1.000 mm und einer Breite
von 800 mm können Zahnräder einseitig angeordnet
werden
lichte Höhe
- darüber Zahnräder auf beiden Seiten einbauen 90
- bei einseitigen Zahnrädern ist auf der Gegenseite die
Endkappe und die Achse kurz einzusetzen
- alle Achsen sind generell mit einer selbstbohrenden
Schraube oder Niete zu sichern
Antrieb:
- ab einer Höhe von 1.200 mm ist ein Verbindungs- lichte Breite
gestänge anzubauen
- die Antriebsachse ist mittels einer selbstbohrenden
Schraube oder einer Niete an der Lamelle zu sichern C - P rofil
6
Lamellenzuschnitt:
30
Lichte Breite abzüglich 7 mm 120
6
Baugrößen:
20
Die maximalen Baugrößen in der Breite entnehmen Sie 120
bitte dem Diagramm
maximale Klappenbreite in Abhängigkeit von ∆P
120
2000
1750
Druckdifferenz [Pa]
1500
1250
1000
750
500
250
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Jalousieklappenbreite
Druckverlust - Kennlinien Stellkraftdiagramm/Drehmomente
Stellkraftdiagramm /
Druckverlustkennlinie (in geöffnetem Zustand) Motordrehmoment
H (m) 1,5
°
300
Klappenöffnungswinkel °
45
Druckverlust [Pa]
15 Nm
Alle Angaben ohne Gewähr
1,0
200
8 Nm
60° 0,5
100
90°
1 2 3 4 5 0 0,5 1,0 1,5
W[m/s] B (m)
