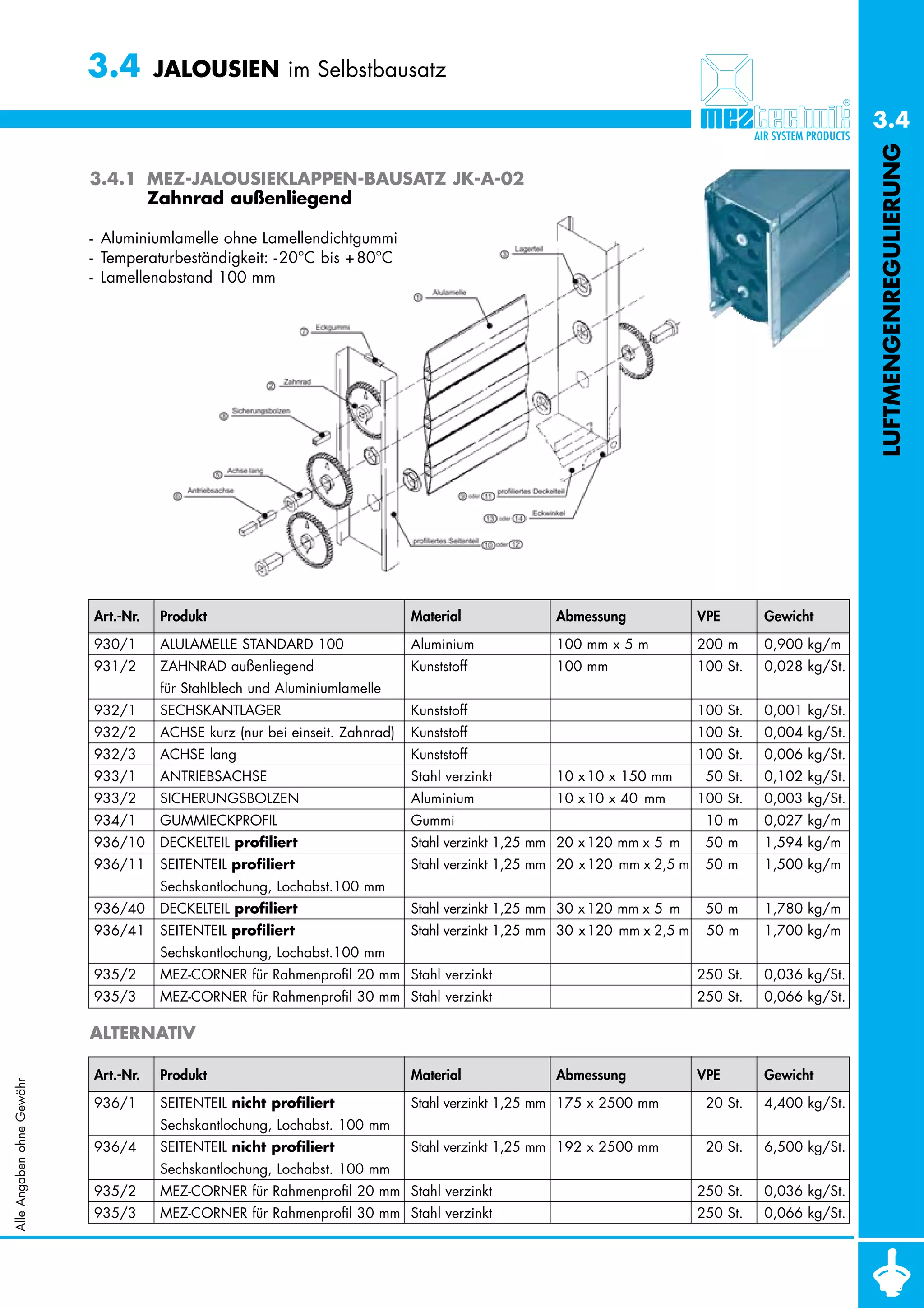

1. 3.4 JALOUSIEN im Selbstbausatz
3.4
LUFTMENGENREGULIERUNG
3.4.1 MEZ-JALOUSIEKLAPPEN-BAUSATZ JK-A-02
Zahnrad außenliegend
- Aluminiumlamelle ohne Lamellendichtgummi
- Temperaturbeständigkeit: - 20°C bis + 80°C
- Lamellenabstand 100 mm
Art.-Nr. Produkt Material Abmessung VPE Gewicht
930/1 ALULAMELLE STANDARD 100 Aluminium 100 mm x 5 m 200 m 0,900 kg/m
931/2 ZAHNRAD außenliegend Kunststoff 100 mm 100 St. 0,028 kg/St.
für Stahlblech und Aluminiumlamelle
932/1 SECHSKANTLAGER Kunststoff 100 St. 0,001 kg/St.
932/2 ACHSE kurz (nur bei einseit. Zahnrad) Kunststoff 100 St. 0,004 kg/St.
932/3 ACHSE lang Kunststoff 100 St. 0,006 kg/St.
933/1 ANTRIEBSACHSE Stahl verzinkt 10 x 10 x 150 mm 050 St. 0,102 kg/St.
933/2 SICHERUNGSBOLZEN Aluminium 10 x 10 x 40 mm 100 St. 0,003 kg/St.
934/1 GUMMIECKPROFIL Gummi 010 m 0,027 kg/m
936/10 DECKELTEIL profiliert Stahl verzinkt 1,25 mm 20 x 120 mm x 5 m 050 m 1,594 kg/m
936/11 SEITENTEIL profiliert Stahl verzinkt 1,25 mm 20 x 120 mm x 2,5 m 050 m 1,500 kg/m
Sechskantlochung, Lochabst.100 mm
936/40 DECKELTEIL profiliert Stahl verzinkt 1,25 mm 30 x 120 mm x 5 m 050 m 1,780 kg/m
936/41 SEITENTEIL profiliert Stahl verzinkt 1,25 mm 30 x 120 mm x 2,5 m 50 m 1,700 kg/m
Sechskantlochung, Lochabst.100 mm
935/2 MEZ-CORNER für Rahmenprofil 20 mm Stahl verzinkt 250 St. 0,036 kg/St.
935/3 MEZ-CORNER für Rahmenprofil 30 mm Stahl verzinkt 250 St. 0,066 kg/St.
ALTERNATIV
Art.-Nr. Produkt Material Abmessung VPE Gewicht
Alle Angaben ohne Gewähr
936/1 SEITENTEIL nicht profiliert Stahl verzinkt 1,25 mm 175 x 2500 mm 020 St. 4,400 kg/St.
Sechskantlochung, Lochabst. 100 mm
936/4 SEITENTEIL nicht profiliert Stahl verzinkt 1,25 mm 192 x 2500 mm 020 St. 6,500 kg/St.
Sechskantlochung, Lochabst. 100 mm
935/2 MEZ-CORNER für Rahmenprofil 20 mm Stahl verzinkt 250 St. 0,036 kg/St.
935/3 MEZ-CORNER für Rahmenprofil 30 mm Stahl verzinkt 250 St. 0,066 kg/St.

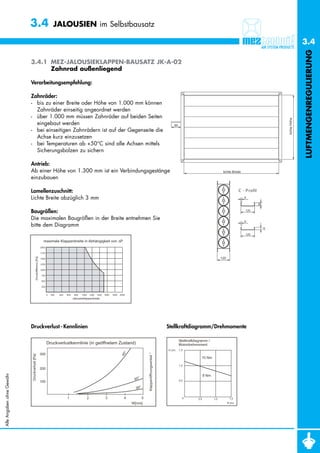

2. 3.4 JALOUSIEN im Selbstbausatz
3.4
LUFTMENGENREGULIERUNG
3.4.1 MEZ-JALOUSIEKLAPPEN-BAUSATZ JK-A-02
Zahnrad außenliegend
Verarbeitungsempfehlung:
Zahnräder:
- bis zu einer Breite oder Höhe von 1.000 mm können
Zahnräder einseitig angeordnet werden
- über 1.000 mm müssen Zahnräder auf beiden Seiten
lichte Höhe
eingebaut werden 90
- bei einseitigen Zahnrädern ist auf der Gegenseite die
Achse kurz einzusetzen
- bei Temperaturen ab +50°C sind alle Achsen mittels
Sicherungsbolzen zu sichern
Antrieb:
Ab einer Höhe von 1.300 mm ist ein Verbindungsgestänge lichte Breite
einzubauen
Lamellenzuschnitt: C - P rofil
Lichte Breite abzüglich 3 mm 6
30
Baugrößen: 120
Die maximalen Baugrößen in der Breite entnehmen Sie 6
bitte dem Diagramm
20
120
maximale Klappenbreite in Abhängigkeit von ∆P
2000
1750
120
Druckdifferenz [Pa]
1500
1250
1000
750
500
250
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Jalousieklappenbreite
Druckverlust - Kennlinien Stellkraftdiagramm/Drehmomente
Stellkraftdiagramm /
Druckverlustkennlinie (in geöffnetem Zustand) Motordrehmoment
H (m) 1,5
°
300
Klappenöffnungswinkel °
45
Druckverlust [Pa]
15 Nm
1,0
200
Alle Angaben ohne Gewähr
8 Nm
60° 0,5
100
90°
1 2 3 4 5 0 0,5 1,0 1,5
W[m/s] B (m)
