1. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences

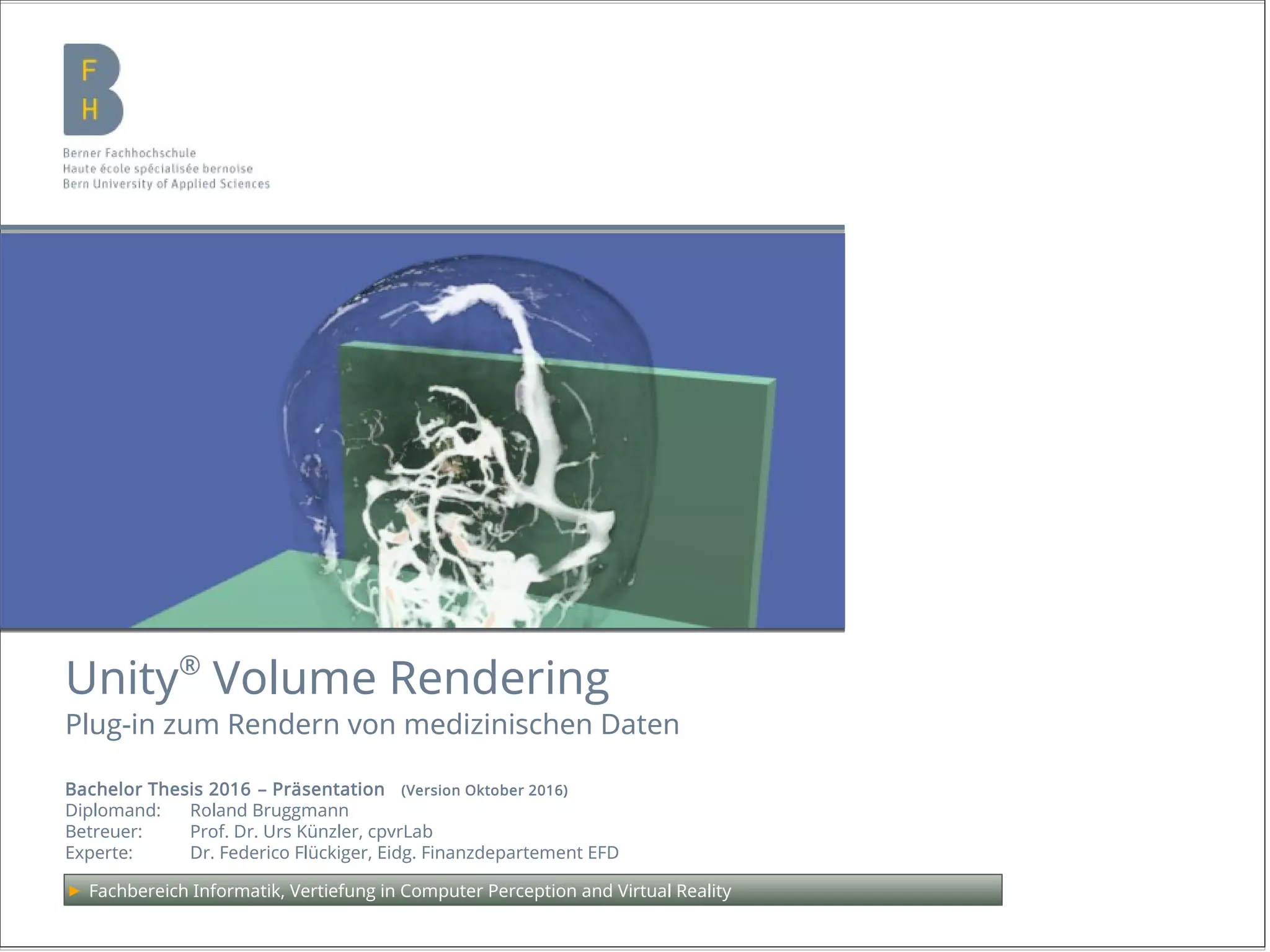

Unity®
Volume Rendering
Plug-in zum Rendern von medizinischen Daten
Bachelor Thesis 2016 – Präsentation (Version Oktober 2016)
Diplomand: Roland Bruggmann
Betreuer: Prof. Dr. Urs Künzler, cpvrLab
Experte: Dr. Federico Flückiger, Eidg. Finanzdepartement EFD
▶ Fachbereich Informatik, Vertiefung in Computer Perception and Virtual Reality
2. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Ausgangslage
3. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Ausgangslage
Cave Automatic Virtual Environment (CAVE)
4. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Ausgangslage
Rendern der Stereobilder mit Unity
5. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Ausgangslage
Simulation Operationssaal als Serious Game
6. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Ausgangslage
Volumengrafik einbinden
7. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Problemstellung
8. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Problemstellung
Medizinische Daten als Volumengrafik
9. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Problemstellung
Plug-in für Unity
10. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Problemstellung
Berechnung auf den Grafikprozessoren
11. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Grundlagen
12. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Grundlagen – Direct Volume Rendering DVR
Rekonstruktion und Volumengrafik
4 Kanäle rgba (Farbe & Transparenz)1 Kanal s (Graustufen)
13. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Grundlagen – Direct Volume Rendering DVR
Transferfunktion: „Malen mit Zahlen“
Transferfunktion mit
256 Farbwerten
Rekonstruktion mit
256 Grauwerten
14. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Grundlagen – Unity: Engine und Editor
Namespace UnityEngine Namespace UnityEditor
GameObject2
GameObject2
Component Pattern
Scenegraph
15. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Grundlagen – Unity: Scripting API
Namespace UnityEngine Namespace UnityEditor
GameObject2
GameObject2
Eigene
Komponenten
17. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Konzept
18. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Konzept – User Story
Actors und Systemgrenzen
Offstage OffstageSupporting SupportingSystem
Game Developer
als
Primary Actor
Operator, Patient,
MRT / CT,
DICOM-Daten
GPUs, Serious Game
im CAVE, Training von
OP-Personal
20. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Konzept – Requirements Workshop
DVR mit Region of Interest ROI
21. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Konzept – Use Cases Model
22. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Design
23. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Design – Paketdiagramm Menu und Utility
- Import DICOM Dataset
- Create Reconstruction (Texture3D)
- Create GO Volume with ROI
24. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Design – Klassendiagramm GO Volume und ROI
26. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
P.rgb = (0.0, 0.0, 0.0)
P.a = 0.0
Design – Pixel Shader
P
Akkumulation von Farbe und Transparenz per Raycaster
Projektionsebene
Kamera
Rekonstruktion mit ROIFür jedes Pixel P ein Sichtstrahl.
27. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
P.rgb += T(s1
).rgb * T(s1
).a
P.a += T(s1
).a
T(s1
)
Design – Pixel Shader
s1
P
Akkumulation von Farbe und Transparenz per Raycaster
28. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
P.rgb += T(s2
).rgb * T(s2
).a
P.a += T(s2
).a
P
s2
Akkumulation von Farbe und Transparenz per Raycaster
Design – Pixel Shader
T(s2
)
29. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
T(s3
)
P.rgb += T(s3
).rgb * T(s3
).a
P.a += T(s3
).a
P
s3
Akkumulation von Farbe und Transparenz per Raycaster
Design – Pixel Shader
30. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
T(s3
)
P.rgb += T(s3
).rgb * T(s3
).a
P.a += T(s3
).a
P
s3
Akkumulation von Farbe und Transparenz per Raycaster
Design – Pixel Shader
Stopp wenn
- P.a grösser als Alpha-Threshold
oder
- s ausserhalb ROI
31. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Für jede Zeile ...
Design – Pixel Shader
Akkumulation von Farbe und Transparenz per Raycaster
32. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Design – Pixel Shader
Texture mapping
… ergibt 2D-Texturen,
welche auf die ROI
gemappt werden.
ROI als Volumengrafik
33. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Umsetzung
34. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Umsetzung
Volume Rendering im Unity Editor
35. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Umsetzung
Material und Shader-GUI
36. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Volume
Rendering
Unity
Demo
37. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
Danke für Ihre Aufmerksamkeit.
38. Berner Fachhochschule | Haute école spécialisée bernoise | Bern University of Applied Sciences
„Haptic CAVE“. In: cpvrLab Wiki. Institute for Human Centered Engineering HuCE, BFH-TI, 23. Jan. 2011. URL:
https://www.cpvrlab.ti.bfh.ch/wiki/huce:cpvrlab:cave:start
„Quadro Desktop Grafikkarten“. In: Website von NVIDIA GmbH, Würselen. URL:
http://www.nvidia.de/object/quadro-desktop-gpus-de.html
„3D Virtual Operating Room (3D-VOR)“. In: Serious Game Classification. URL:
http://serious.gameclassification.com/EN/games/43921-3D-Virtual-Operating-Room-3D-VOR/index.html
Rezk-Salama, Christof u. a.: „Real-Time Volume Graphics“. 1. Aufl. Wellesley, Mass: A K Peters, 2006. URL:
http://www.real-time-volume-graphics.org/
Hudritsch, Markus: „Game Development mit Unity3D“. Skript. Modul BTI7527 Game Development. Feb. 2016.
„MAGNETOM Skyra“. In: Website von SIEMENS Helathineers, Schweiz. URL:
http://www.healthcare.siemens.ch/magnetic-resonance-imaging/3t-mri-scanner/magnetom-skyra
DICOM – Digital Imaging and Communications in Medicine, URL: http://dicom.nema.org/
The Visualization Toolkit VTK. URL: http://www.vtk.org/
„Nursing in the 21st Century: How the Role of Nursing Is Evolving“. In: Study.com, 1. Dez. 2010. URL:
http://study.com/articles/Nursing_in_the_21st_Century_How_the_Role_of_Nursing_is_Evolving.html
Alan Zucconi: „A gentle introduction to shaders in Unity3D“. London, 10. Juni 2015. URL:
http://www.alanzucconi.com/2015/06/10/a-gentle-introduction-to-shaders-in-unity3d/
„Unity Manual“. URL: http://docs.unity3d.com/Manual/index.html
„Unity Scripting-API“. URL: http://docs.unity3d.com/ScriptReference/index.html
Bildnachweis
Unity®
Volume Rendering im Web
Abstract: http://www.ti.bfh.ch/index.php?id=4398&L=0&absId=1201
Screencast: https://www.youtube.com/watch?v=4__j5mM_az0
