Cloud Foundry - A Platform for Everyone

Copyright: mimacom ag, 2019. Alle Rechte vorbehalten, auch bzgl. jeder Verwertung, Reproduktion und Weitergabe
Cloud Foundry
A Platform for Everyone
// Fabian Keller
Photo by Dominik Schröder on Unsplash

Fabian Keller
Software Engineer @mimacom
Woodworker @127.0.0.1
# CLOUD PLATFORMS
# ARCHITECTURE
# DESIGN SYSTEMS
# DEVOPS
@_fabiankeller
www.fabian-keller.de
2019-10-17 / Team Talks / @_fabiankeller
2

3

4
The industry standard platform for cloud applications. Built for
fast-cycle innovation. Designed for the enterprise.

Cloud Foundry Foundation
There is no single vendor
5

Cloud Foundry
and the ecosystem
6
Platform
as a Service
Container
as a Service
Function
as a Service

Circles of Infrastructure
What is a PaaS?
7
Hardware
IaaS
CaaS
PaaS
FaaS
SaaS
Flexibility Operational
Efficiency

Why Cloud Foundry?
8
Open Source Faster to iterate Scalable platform

Getting Started
9
Photo by Jukan Tateisi on Unsplash

Cloud Foundry Overview
Runs on any IaaS
10
IAAS
PAAS
Application
Application
Application
Cloud Foundry

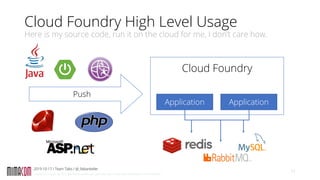

Cloud Foundry High Level Usage
Here is my source code, run it on the cloud for me, I don’t care how.
11
Push
Cloud Foundry
Application Application

Tenancy Management
Logical isolation
• Cloud Foundry supports
organizations for tenancy
management
• Organizations contain spaces
that further divides the
organization
• Organization can be limited with
quotas and billed based on their
usage
12
Organization
Space
Space
R & D
Test
QA

Organisations
Logical isolation
• Organisations have users with
different roles: Manager / Billing
Manager / Auditor
• Organization can have quotas
assigned that limits the total
resource consumption
• Organizations can be self-
maintained by the organization
admin
13
Organization
Role User
Quota
Memory
# Apps

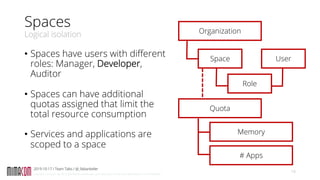

Spaces
Logical isolation
• Spaces have users with different
roles: Manager, Developer,
Auditor
• Spaces can have additional
quotas assigned that limit the
total resource consumption
• Services and applications are
scoped to a space
14
Organization
Role
User
Quota
Memory
# Apps
Space

Routing
Ensuring traffic reaches your application
15
https://myapp.cfapps.io/api/v2/account
Secure by default
App name (unique across platform for the domain)
Domains available in the platform
Path prefix (rarely used)
App-specific

Demo Pushing App
to Cloud Foundry
16

Operations
17
Photo by Tim Mossholder on Unsplash

Cloud Foundry Architecture
18
Router
Cloud
Controller
Messaging
Diego
Diego Cell Diego Cell
Diego Cell Diego Cell Metrics &
Logging
Authentication
Service Brokers
Your app

Buildpacks
Turning source code into a container
19
App Source
Code
stage Droplet
cf push store
• Add frameworks, libraries and runtimes
• Add APM tools
• Put certificates in place
• Configure security
• Optimize runtime (e.g. memory flags)

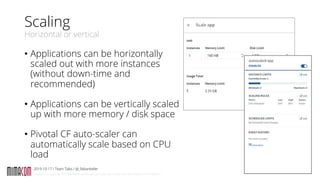

Scaling
Horizontal or vertical
• Applications can be horizontally
scaled out with more instances
(without down-time and
recommended)
• Applications can be vertically scaled
up with more memory / disk space
• Pivotal CF auto-scaler can
automatically scale based on CPU
load
20

Logging & Monitoring
Insights for your app
• Cloud Foundry supports the collection of all logs
and metrics (components, apps) into a unified
stream
• Logs can be retrieved from the platform via
Ø Command Line
Ø Syslog
Ø 3rd Party Systems (e.g. Datadog, Instana)
21

Zero Downtime Deployments
And doing them frequently
22
Router
App
GREEN
App
BLUE
myapp.cfapps.io
Remap
Blue / Green Deployments
Router
App
GREEN
App
BLUE
myapp.cfapps.io
Scale down
Canary Deployments
Scale up

Demo Operating an App
on Cloud Foundry
23

Services
24
Photo by Jan Kolar / VUI Designer on Unsplash

Services
Self-service for spicing up your app with services
• Cloud Foundry provides a service abstraction for service
providers and consumer applications
• Service Broker provides possibility to provision services (e.g.
persistent services) through a centralized API
• Application can use the services by inspecting the environment
variable VCAP_SERVICES
25

Marketplace
Offers a wide variety of different services
• Services can be registered in
the marketplace (either
manually or during
installation with bosh)
• Services can offer service
plans (e.g. 1 GB, 10 GB,
dedicated)
• Administrator can configure
service plans
26

Open Service Broker API
Integrate any service
27
• Open API
specification to
provision and bind
service instances
• Platform-agnostic to
foster reuse of
service broker
implementations
across different
platforms.

Demo Using Services
on Cloud Foundry
28

How to succeed in
adopting a cloud platform
Beginning the journey
29
Photo by Daniel Hjalmarsson on Unsplash

Agile
Adopting an agile mindset
• Delivering value, fast
• Maintaining and prioritizing a
backlog
• Daily Standup
• Pair / Mob programming
30

Platform Team
The role of a platform team?
Build a superior path to production, and
operate it as a service to developers.
@jamesurquhart
31
Photo by Annie Spratt on Unsplash

Cloud Native Maturity Model
Mastering the cloud journey
32
Cloud Native API-first design
Microservices
Cloud Resilient Expect failure and prepare for it
Cloud Friendly 12 Factors (www.12factor.net)
Horizontally scalable
Cloud Ready It works in the cloud

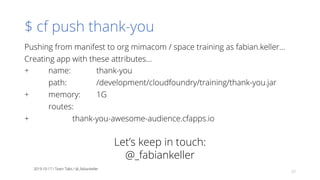

$ cf push thank-you
Pushing from manifest to org mimacom / space training as fabian.keller...
Creating app with these attributes...
+ name: thank-you
path: /development/cloudfoundry/training/thank-you.jar
+ memory: 1G
routes:
+ thank-you-awesome-audience.cfapps.io
33
Let’s keep in touch:
@_fabiankeller
