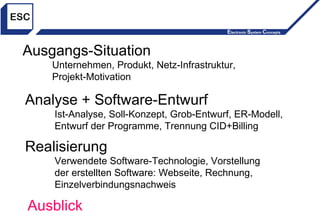

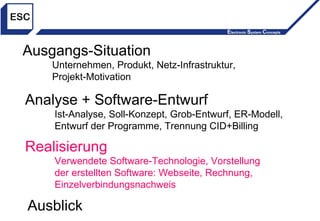

Slide from my Presentation at the IHK Aschaffenburg in bavaria on July 17th 2002. Since this day i am certified IT-Professional with title "Fachinformatiker Anwendungsenwicklung". By the Way the Presentation and the Interview afterwards was valuated 100% and the Project-Documentation was valuated 94%. That\'s why there is slide with a correction of the bug in the structogram. But this bug wasn\'t in the Software of cause. At that time I used the so called modern structured analysis für Software- and System-Design. In 2004 i switched from UNIX/linux to Java EE and deeply into OOP and UML.

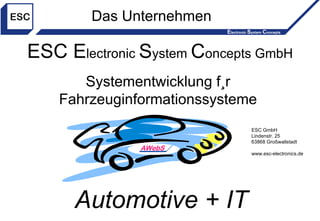

3. ESC E lectronic S ystem C oncepts GmbH Systementwicklung für Fahrzeuginformationssysteme ESC GmbH Lindenstr. 25 63868 Großwallstadt www.esc-electronics.de Automotive + IT Das Unternehmen

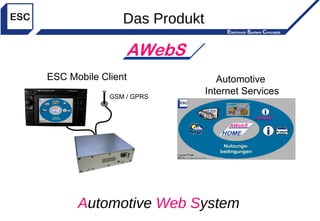

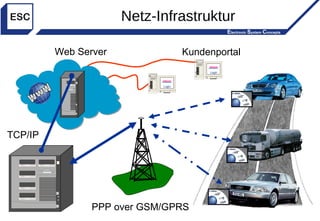

4. Das Produkt A utomotive Web S ystem Automotive Internet Services ESC Mobile Client GSM / GPRS

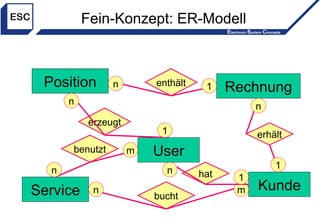

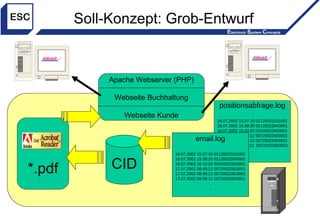

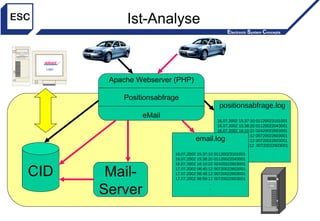

10. Fein-Konzept: ER-Modell Service User Kunde Position Rechnung bucht n m hat n 1 m benutzt n erzeugt 1 n enthält n 1 erhält n 1
11. Fein-Konzept: Programme Service User Kunde Position Rechnung erhält enthält n erzeugt m benutzt 1 hat bucht n n 1 1 n m n 1 n 16.07.2002 15:37:10 01120023101001 16.07.2002 15:38:20 01120022043001 16.07.2002 16:10:22 02420022603001 17.07.2002 08:45:12 00720022603001 17.07.2002 08:48:12 00720022603001 17.07.2002 08:59:12 00720022603001 16.07.2002 15:37:10 01120023101001 16.07.2002 15:38:20 01120022043001 16.07.2002 16:10:22 02420022603001 17.07.2002 08:45:12 00720022603001 17.07.2002 08:48:12 00720022603001 17.07.2002 08:59:12 00720022603001 *.pdf

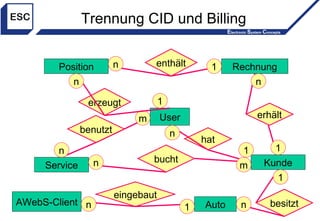

12. Trennung CID und Billing Service User Kunde m benutzt 1 hat bucht n n m n Auto besitzt 1 n AWebS-Client eingebaut 1 n Position erzeugt n 1 Rechnung erhält enthält n 1 1 n
14. Verwendete Technologie PostgreSQL Relationales Datenbank-System Python Strukturierte und Objekt-Orientierte Programmiersprache Apache + PHP HTTP-Server und Programmiersprache L A T E X pdf-LaTeX Textbasierte Druckvorlagen-Erstellung

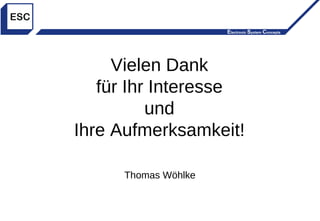

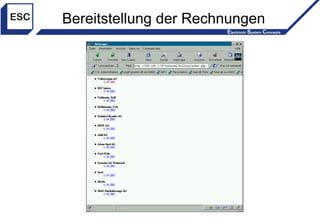

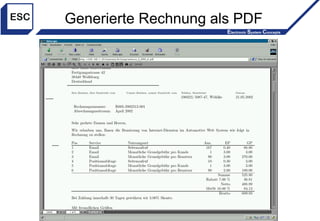

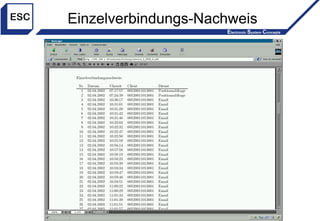

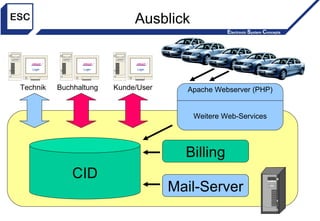

20. Vielen Dank für Ihr Interesse und Ihre Aufmerksamkeit! Thomas Wöhlke
21. Struktogramm: Fehler (S. 24) für alle Zeilen in Tabelle „service“ öffne Log-Datei mit Dateinamen aus „service.logfile_uri“ für alle Zeilen in der Log-Datei prüfe, ob Syntax der Identifikationsnummer korrekt ist prüfe, ob Datum korrekt ist, und ob Monat und Jahr aus der Zeile zum Monat und Jahr aus (1) gehört in Tabelle „position“ einfügen füge service.servicename ein in Tabelle „position_servicename“ Zusammenfassung an Standardausgabe und logscan.py-Lodatei ausgeben.

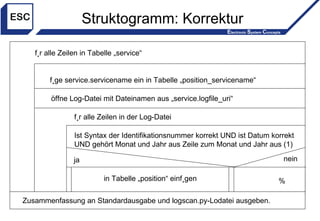

22. Struktogramm: Korrektur für alle Zeilen in Tabelle „service“ öffne Log-Datei mit Dateinamen aus „service.logfile_uri“ für alle Zeilen in der Log-Datei Ist Syntax der Identifikationsnummer korrekt UND ist Datum korrekt UND gehört Monat und Jahr aus Zeile zum Monat und Jahr aus (1) in Tabelle „position“ einfügen füge service.servicename ein in Tabelle „position_servicename“ Zusammenfassung an Standardausgabe und logscan.py-Lodatei ausgeben. ja nein %
