Palo Alto Networks - Just another Firewall

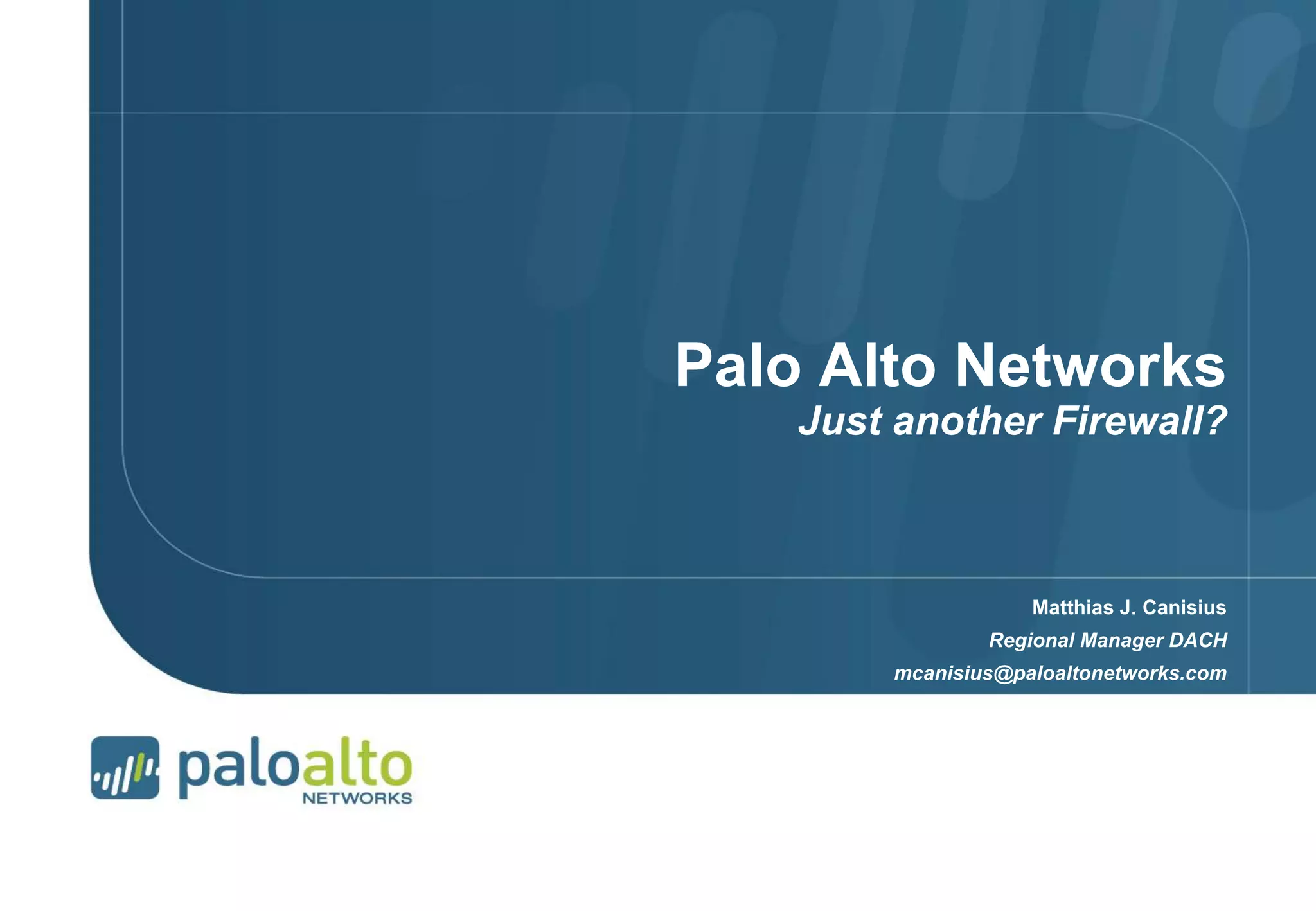

- 1. Palo Alto Networks Justanother Firewall? Matthias J. Canisius Regional Manager DACH mcanisius@paloaltonetworks.com

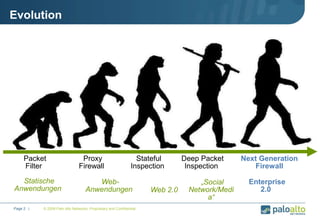

- 2. Evolution © 2009 PaloAlto Networks. Proprietary and Confidential.Page 2 | •Packet Filter •Stateful Inspection •Proxy Firewall •Deep Packet Inspection Next Generation Firewall •Statische Anwendungen •Web- Anwendungen •„Social Network/Medi a“ •Enterprise 2.0•Web 2.0
- 3. Fakten... • Facebook 100mio . neue User innerhalb von 9 Monaten (TV brauchte 13 Jahre für 50 Mio.) • 80% aller Unternehmen nutzen LinkedIn oder Xing als Quelle neue Mitarbeiter zu finden • YouTube ist die 2. größte Suchmaschine der Welt mit über 100 mio. Videos • Wikipedia über 13 Millionen Artikel und gilt als umfassender als die Encyclopeda Britannica (78% der Artikel sind nicht in englischer Sprache)... • (R)evolution!? © 2009 Palo Alto Networks. Proprietary and Confidential.Page 3 |

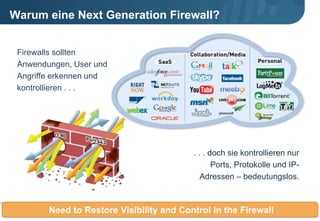

- 4. © 2009 PaloAlto Networks. Proprietary and Confidential.Page 4 | Warum eine Next Generation Firewall? Need to Restore Visibility and Control in the Firewall Firewalls sollten Anwendungen, User und Angriffe erkennen und kontrollieren . . . • . . . doch sie kontrollieren nur Ports, Protokolle und IP- Adressen – bedeutungslos.

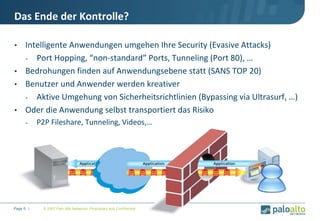

- 5. © 2007 PaloAlto Networks. Proprietary and ConfidentialPage 5 | Das Ende der Kontrolle? • Intelligente Anwendungen umgehen Ihre Security (Evasive Attacks) - Port Hopping, “non-standard” Ports, Tunneling (Port 80), … • Bedrohungen finden auf Anwendungsebene statt (SANS TOP 20) • Benutzer und Anwender werden kreativer - Aktive Umgehung von Sicherheitsrichtlinien (Bypassing via Ultrasurf, …) • Oder die Anwendung selbst transportiert das Risiko - P2P Fileshare, Tunneling, Videos,…

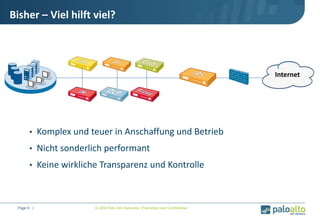

- 6. Internet Bisher – Vielhilft viel? • Komplex und teuer in Anschaffung und Betrieb • Nicht sonderlich performant • Keine wirkliche Transparenz und Kontrolle © 2009 Palo Alto Networks. Proprietary and Confidential.Page 6 |
- 7. © 2009 PaloAlto Networks. Proprietary and Confidential.Page 7 |
- 8. •Page 8 | NeueAnforderungen 1. Identifizierung von Anwendungen unabängig von Port, Protokoll, SSL-Tunnel … 2. Identifizierung von Benutzern unabhängig von IP-Adressen 3. Granulare Darstellung und Kontrolle über Zugriff und Funktion von Anwendungen 4. Schutz in Echtzeit vor in Anwendungen eingebetteten Angriffen 5. Multi-Gigabit, In-Line Implementierung ohne Performance-Einbußen Next Generation Firewall™
- 9.

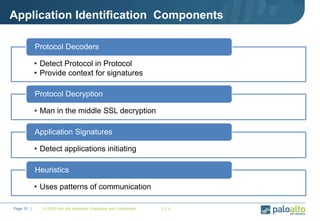

- 10. Application Identification Components •Detect Protocol in Protocol • Provide context for signatures Protocol Decoders • Man in the middle SSL decryption Protocol Decryption • Detect applications initiating Application Signatures • Uses patterns of communication Heuristics © 2009 Palo Alto Networks. Proprietary and Confidential 2.1-bPage 10 |

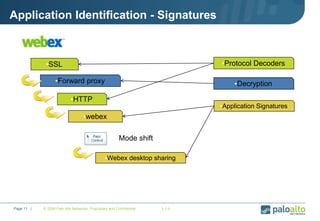

- 11. Application Identification -Signatures © 2009 Palo Alto Networks. Proprietary and Confidential 2.1-bPage 11 | •Protocol Decoders •Decryption •Application Signatures •SSL •Forward proxy •HTTP •webex •Webex desktop sharing •Mode shift

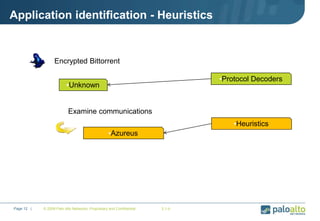

- 12. Application identification -Heuristics © 2009 Palo Alto Networks. Proprietary and Confidential 2.1-bPage 12 | •Unknown •Encrypted Bittorrent •Azureus •Heuristics •Protocol Decoders •Examine communications

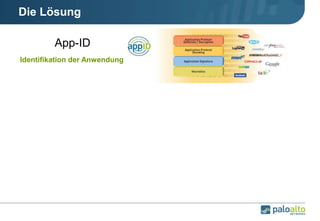

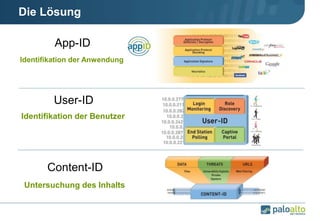

- 13. Die Lösung •App-ID •Identifikation derAnwendung •User-ID •Identifikation der Benutzer •Content-ID •Untersuchung des Inhalts

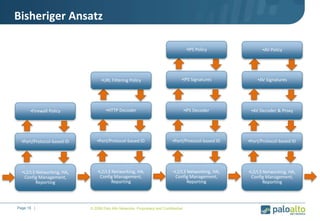

- 14. Bisheriger Ansatz •Port/Protocol-based ID •HTTPDecoder •L2/L3 Networking, HA, Config Management, Reporting •URL Filtering Policy •Port/Protocol-based ID •L2/L3 Networking, HA, Config Management, Reporting •Firewall Policy •Port/Protocol-based ID •IPS Signatures •L2/L3 Networking, HA, Config Management, Reporting •IPS Policy •IPS Decoder •Port/Protocol-based ID •AV Signatures •L2/L3 Networking, HA, Config Management, Reporting •AV Policy •AV Decoder & Proxy •Page 15 | •© 2008 Palo Alto Networks. Proprietary and Confidential

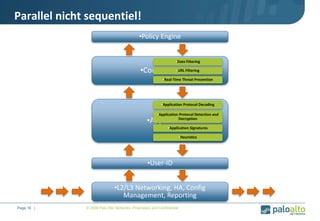

- 15. Parallel nicht sequentiel! •L2/L3Networking, HA, Config Management, Reporting •App-ID •Content-ID •Policy Engine •Application Protocol Detection and Decryption •Application Protocol Decoding •Heuristics •Application Signatures •URL Filtering •Real-Time Threat Prevention •Data Filtering •Page 16 | •© 2008 Palo Alto Networks. Proprietary and Confidential •User-ID

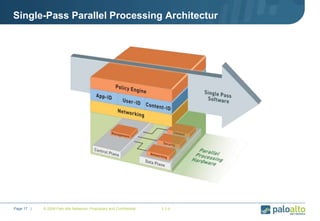

- 16. © 2009 PaloAlto Networks. Proprietary and Confidential 2.1-bPage 17 | Single-Pass Parallel Processing Architectur

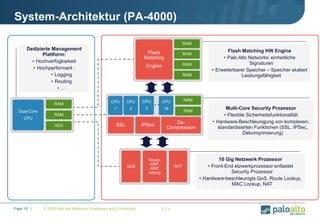

- 17. © 2009 PaloAlto Networks. Proprietary and Confidential 2.1-bPage 18 | System-Architektur (PA-4000) Flash Matching HW Engine • Palo Alto Networks’ einheitliche Signaturen • Erweiterbarer Speicher – Speicher skaliert Leistungsfähigkeit Multi-Core Security Prozessor • Flexible Sicherheitsfunktionalität • Hardware-Beschleunigung von komplexen, standardisierten Funktionen (SSL, IPSec, Dekomprimierung) Dedizierte Management Plattform: • Hochverfügbarkeit • Hochperformant : • Logging • Routing • … Flash Matching Engine RAM RAM RAM RAM Dual-Core CPU RAM RAM HDD 10 Gig Netzwerk Prozessor • Front-End etzwerkprozessor entlastet Security Prozessor • Hardware-beschleunigts QoS, Route Lookup, MAC Lookup, NAT CPU 16 . . SSL IPSec De- Compression CPU 1 CPU 2 RAM RAMCPU 3 QoS Route, ARP, MAC lookup NAT

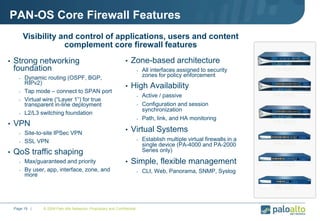

- 18. © 2009 PaloAlto Networks. Proprietary and Confidential.Page 19 | PAN-OS Core Firewall Features • Strong networking foundation - Dynamic routing (OSPF, BGP, RIPv2) - Tap mode – connect to SPAN port - Virtual wire (“Layer 1”) for true transparent in-line deployment - L2/L3 switching foundation • VPN - Site-to-site IPSec VPN - SSL VPN • QoS traffic shaping - Max/guaranteed and priority - By user, app, interface, zone, and more • Zone-based architecture - All interfaces assigned to security zones for policy enforcement • High Availability - Active / passive - Configuration and session synchronization - Path, link, and HA monitoring • Virtual Systems - Establish multiple virtual firewalls in a single device (PA-4000 and PA-2000 Series only) • Simple, flexible management - CLI, Web, Panorama, SNMP, Syslog Visibility and control of applications, users and content complement core firewall features PA-500 PA-2020 PA-2050 PA-4020 PA-4050 PA-4060

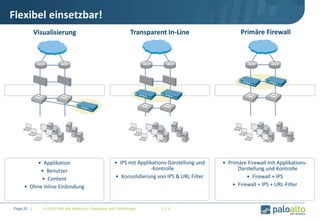

- 19. © 2009 PaloAlto Networks. Proprietary and Confidential 2.1-bPage 20 | Flexibel einsetzbar! Visualisierung Transparent In-Line Primäre Firewall • Applikation • Benutzer • Content • Ohne Inline Einbindung • IPS mit Applikations-Darstellung und -Kontrolle • Konsolidierung von IPS & URL Filter • Primäre Firewall mit Applikations- Darstellung und Kontrolle • Firewall + IPS • Firewall + IPS + URL-Filter
- 20. Application Visibility andRisk Report © 2009 Palo Alto Networks. Proprietary and Confidential.Page 21 | Einfache Auswertung Ihrer Daten • Top Application Usage • High Risk Applications • Http Applications • Top Threats •AVR
- 21. Palo Alto NetworksNext-Generation Firewalls © 2010 Palo Alto Networks. Proprietary and Confidential.Page 22 | PA-4050 • 10 Gbps FW • 5 Gbps threat prevention • 2,000,000 sessions • 16 copper gigabit • 8 SFP interfaces PA-4020 • 2 Gbps FW • 2 Gbps threat prevention • 500,000 sessions • 16 copper gigabit • 8 SFP interfaces PA-4060 • 10 Gbps FW • 5 Gbps threat prevention • 2,000,000 sessions • 4 XFP (10 Gig) I/O • 4 SFP (1 Gig) I/O PA-2050 • 1 Gbps FW • 500 Mbps threat prevention • 250,000 sessions • 16 copper gigabit • 4 SFP interfaces PA-2020 • 500 Mbps FW • 200 Mbps threat prevention • 125,000 sessions • 12 copper gigabit • 2 SFP interfaces PA-500 • 250 Mbps FW • 100 Mbps threat prevention • 50,000 sessions • 8 copper gigabit
- 22. •. •Page 24| Vertrauen • Gegründet 2005 von Security Visionär Nir Zuk • Entwickelt von Security-Experten von CP, Netscreen, Juniper, McAfee, BlueCoat, Cisco, … • $65 Million “Funding” der Top Venture Capital Unternehmen (Sequoia Capital, Greylock Partners, Globespan Capital Partners, …) • Mittlerweile über 1800 Kunden weltweit • 9000 gelieferte Maschinen • Gartner: Top Visionary in Gartner Quadrant!

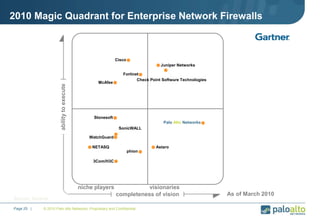

- 23. 2010 Magic Quadrantfor Enterprise Network Firewalls © 2010 Palo Alto Networks. Proprietary and Confidential.Page 25 | Source: Gartner Palo Alto Networks Check Point Software Technologies Juniper Networks Cisco Fortinet McAfee Stonesoft SonicWALL WatchGuard NETASQ Astaro phion 3Com/H3C completeness of vision visionaries abilitytoexecute As of March 2010 niche players
- 24. Proven IPS Quality Testingperformed by NSS Labs, Summer 2010 - Recognized industry leaders for IPS testing - Tests based on established NSS IPS methodology - Tested against a battery of 1,179 live exploits using real world traffic patterns © 2009 Palo Alto Networks. Proprietary and Confidential. Criteria Results Overall Rating Recommended IPS Block Rate 93.4% (at 2.3 Gbps) Performance 2.3 Gbps (115% of stated performance)* IPS Evasion 100% Resistance Simple Tuning and Management “Tuning consisted of changing just three settings within the policy” Review the full NSS Report at http://www.paloaltonetworks.com/literature/forms/nss-report.php *Testing performed on a Palo Alto Networks PA-4020 which is rated at 2 Gbps of Threat Prevention

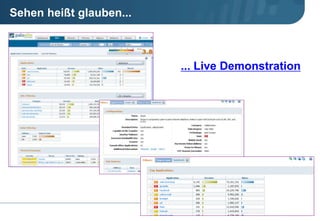

- 25. Sehen heißt glauben... •...Live Demonstration
- 26. Kurz und knapp •Verbesserte Sicherheit - Applikationserkennung: Transparenz führt zu Kontrolle, Kontrolle führt zu Sicherheit - Intelligente zentrale Content Inspection (AV, IPS, URL,...) - Aussagekräftiges Monitoring • Erhöhte Performance - Parallelverarbeitung mittels Single Pass- Architektur (PANOS) + angepasste Hardware • Produktivität - Granulare Applikationskontrolle • Einsparungspotential - Einsparung durch Konsolidierung bestehender Insellösungen (Proxy, AV, IPS, URL, ...) - Niedrigere Betriebskosten Lizenzierung („flat rate“, nicht per user, ...) Management + Konsolidierung © 2009 Palo Alto Networks. Proprietary and Confidential.Page 28 |
- 27.
Hinweis der Redaktion
