1. PV Installations & Errors
Prevent Errors upfront
Andreas Iliou / Suntech
All Rights Reserved

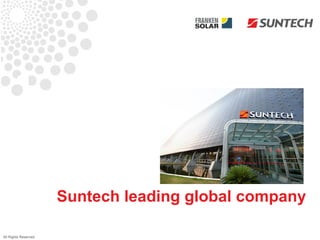

2. 1
Suntech leading global company
All Rights Reserved

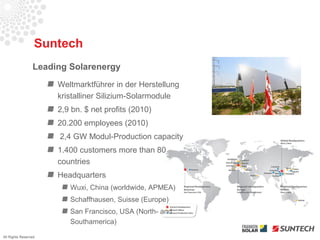

3. Suntech
Leading Solarenergy
Weltmarktführer in der Herstellung
kristalliner Silizium-Solarmodule
2,9 bn. $ net profits (2010)
20.200 employees (2010)
2,4 GW Modul-Production capacity
1.400 customers more than 80
countries
Headquarters
Wuxi, China (worldwide, APMEA)
Schaffhausen, Suisse (Europe)
San Francisco, USA (North- and
Southamerica)
All Rights Reserved
4. History
Some episodes of our history
2001: founded from Dr. Zhengrong Shi
2002: start of Production (10 MW)
2005:Stock listed (NYSE: STP)
2008: Production capacity reached 1 GW
October 2011: over 5 GW delivered, that s more
than 20 Millionen Solarmodules worldwide
► CEO: Dr. Zhengrong Shi ► 2001: first Suntech office ► 2005: listed NYSE ► 2008: 1 GW Production
All Rights Reserved

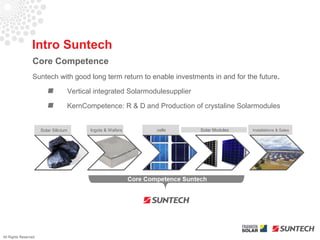

5. Intro Suntech
Core Competence
Suntech with good long term return to enable investments in and for the future.
Vertical integrated Solarmodulesupplier
KernCompetence: R & D and Production of crystaline Solarmodules
Solar Silicium Ingots & Wafers cells Solar Modules Installations & Sales
All Rights Reserved

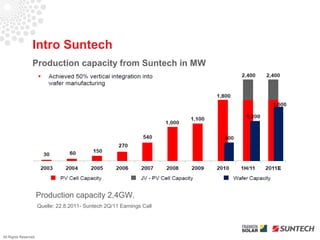

6. Intro Suntech
Production capacity from Suntech in MW
Production capacity 2,4GW.
Quelle: 22.8.2011- Suntech 2Q/11 Earnings Call
All Rights Reserved
7. Technical Customer Service Europe
Partnership Corporation
Global Technical Service
FAQ
Seminars
Technical Customer Service
Quality Inspection Reports
Special Marketing
Suntech Partner Program (for Distributors)
https://www.suntech-partnerportal.com/wp-login.php
Marketing und Image boosting
All Rights Reserved
8. Photovoltaic Systems
Energy Audits
Protection
Maximum Power Point Tracking (MPPT)
Weak light – Shading

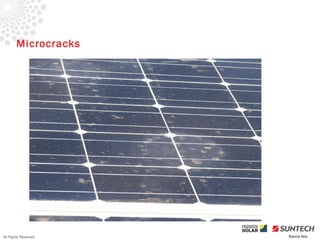

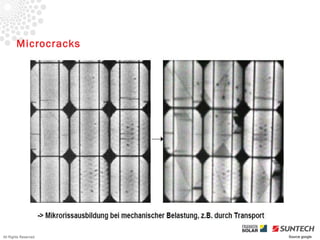

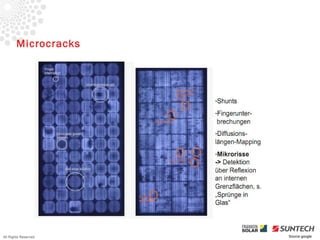

Microcracks Production,
during Transport and Installation
Photovoltaic Systems
Energy Audits
Protection
Backfeed Current
Leakage Current
All Rights Reserved
9. 01
Photovoltaic Systems
Energy Audits
Protection
All Rights Reserved

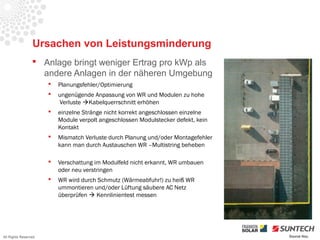

10. Ursachen von Leistungsminderung
Anlage bringt weniger Ertrag pro kWp als
andere Anlagen in der näheren Umgebung
Planungsfehler/Optimierung
ungenügende Anpassung von WR und Modulen zu hohe
Verluste Kabelquerrschnitt erhöhen
einzelne Stränge nicht korrekt angeschlossen einzelne
Module verpolt angeschlossen Modulstecker defekt, kein
Kontakt
Mismatch Verluste durch Planung und/oder Montagefehler
kann man durch Austauschen WR –Multistring beheben
Verschattung im Modulfeld nicht erkannt, WR umbauen
oder neu verstringen
WR wird durch Schmutz (Wärmeabfuhr!) zu heiß WR
ummontieren und/oder Lüftung säubere AC Netz
überprüfen Kennlinientest messen
All Rights Reserved Source Iliou

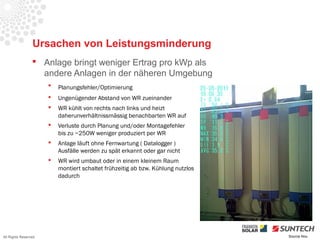

11. Ursachen von Leistungsminderung
Anlage bringt weniger Ertrag pro kWp als
andere Anlagen in der näheren Umgebung
Planungsfehler/Optimierung
Ungenügender Abstand von WR zueinander
WR kühlt von rechts nach links und heizt
daherunverhältnissmässig benachbarten WR auf
Verluste durch Planung und/oder Montagefehler
bis zu ~250W weniger produziert per WR
Anlage läuft ohne Fernwartung ( Datalogger )
Ausfälle werden zu spät erkannt oder gar nicht
WR wird umbaut oder in einem kleinem Raum
montiert schaltet frühzeitig ab bzw. Kühlung nutzlos
dadurch
All Rights Reserved Source Iliou

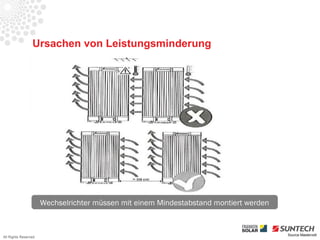

12. Ursachen von Leistungsminderung
Wechselrichter müssen mit einem Mindestabstand montiert werden
Source Mastervolt
All Rights Reserved

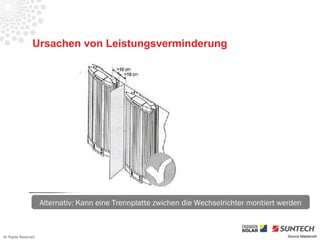

13. Ursachen von Leistungsverminderung
Alternativ: Kann eine Trennplatte zwichen die Wechselrichter montiert werden
All Rights Reserved Source Mastervolt

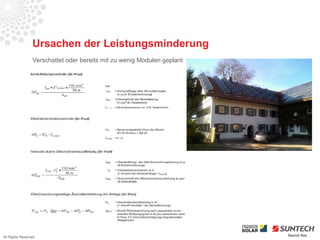

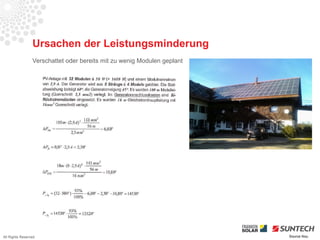

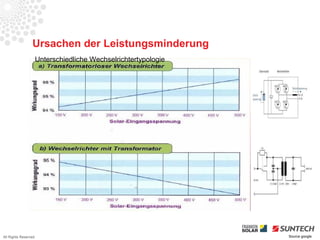

17. Optimising Power output
Optimum East- / Westconfiguration: 2:1 = 2 Strings right and 1 String left
3:1 = 3 Strings right and 1 String left
All Rights Reserved Source Iliou

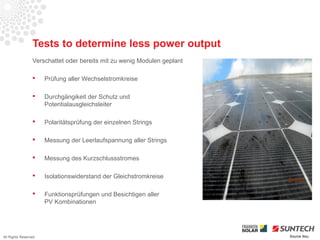

18. Tests to determine less power output
Verschattet oder bereits mit zu wenig Modulen geplant
Prüfung aller Wechselstromkreise
Durchgängikeit der Schutz und
Potentialausgleichsleiter
Polaritätsprüfung der einzelnen Strings
Messung der Leerlaufspannung aller Strings
Messung des Kurzschlussstromes
Isolationswiderstand der Gleichstromkreise
Funktionsprüfungen und Besichtigen aller
PV Kombinationen
All Rights Reserved Source Iliou

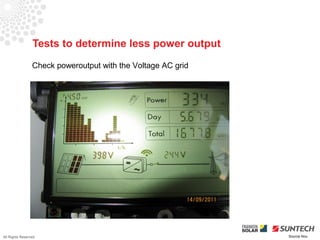

19. Tests to determine less power output
Check poweroutput with the Voltage AC grid
All Rights Reserved Source Iliou

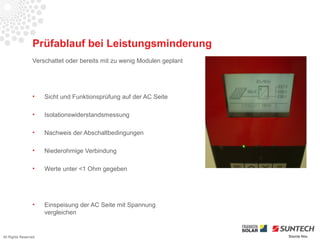

20. Prüfablauf bei Leistungsminderung
Verschattet oder bereits mit zu wenig Modulen geplant
• Sicht und Funktionsprüfung auf der AC Seite
• Isolationswiderstandsmessung
• Nachweis der Abschaltbedingungen
• Niederohmige Verbindung
• Werte unter <1 Ohm gegeben
• Einspeisung der AC Seite mit Spannung
vergleichen
All Rights Reserved Source Iliou

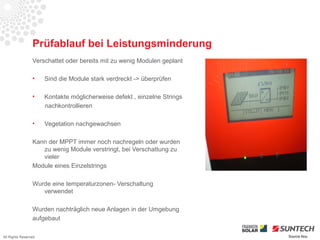

21. Prüfablauf bei Leistungsminderung
Verschattet oder bereits mit zu wenig Modulen geplant
• Sind die Module stark verdreckt -> überprüfen
• Kontakte möglicherweise defekt , einzelne Strings
nachkontrollieren
• Vegetation nachgewachsen
Kann der MPPT immer noch nachregeln oder wurden
zu wenig Module verstringt, bei Verschattung zu
vieler
Module eines Einzelstrings
Wurde eine temperaturzonen- Verschaltung
verwendet
Wurden nachträglich neue Anlagen in der Umgebung
aufgebaut
All Rights Reserved Source Iliou

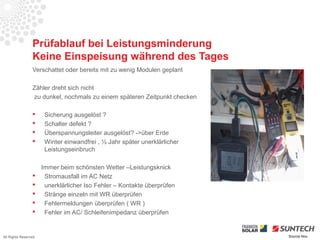

22. Prüfablauf bei Leistungsminderung
Keine Einspeisung während des Tages
Verschattet oder bereits mit zu wenig Modulen geplant
Zähler dreht sich nicht
zu dunkel, nochmals zu einem späteren Zeitpunkt checken
Sicherung ausgelöst ?
Schalter defekt ?
Überspannungsleiter ausgelöst? ->über Erde
Winter einwandfrei , ½ Jahr später unerklärlicher
Leistungseinbruch
Immer beim schönsten Wetter –Leistungsknick
Stromausfall im AC Netz
unerklärlicher Iso Fehler – Kontakte überprüfen
Stränge einzeln mit WR überprüfen
Fehlermeldungen überprüfen ( WR )
Fehler im AC/ Schleifenimpedanz überprüfen
All Rights Reserved Source Iliou

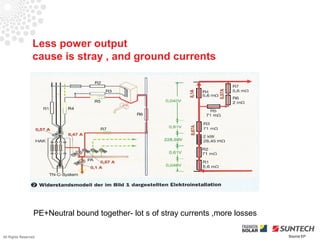

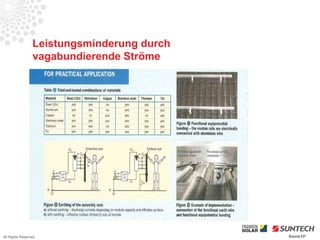

25. Less power output
cause is stray , and ground currents
PE+Neutral bound together- lot s of stray currents ,more losses
All Rights Reserved Source EP

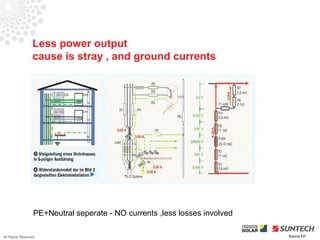

26. Less power output
cause is stray , and ground currents
PE+Neutral seperate - NO currents ,less losses involved
All Rights Reserved Source EP

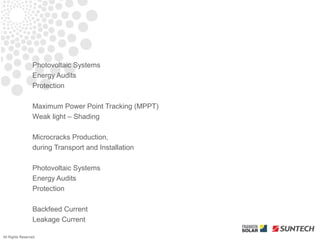

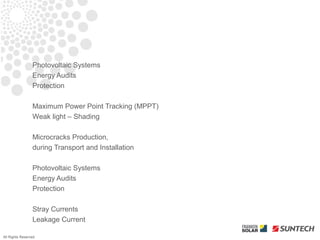

27. Photovoltaic Systems
Energy Audits
Protection
Maximum Power Point Tracking (MPPT)
Weak light – Shading
Microcracks Production,
during Transport and Installation
Photovoltaic Systems
Energy Audits
Protection
Backfeed Current
Leakage Current
All Rights Reserved
28. 02
Maximum Power Point
Tracking (MPPT)
All Rights Reserved

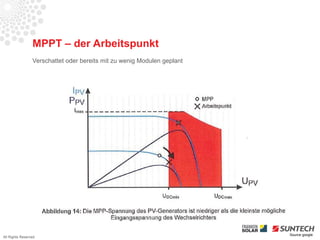

29. MPPT – der Arbeitspunkt
Verschattet oder bereits mit zu wenig Modulen geplant
Source google
All Rights Reserved

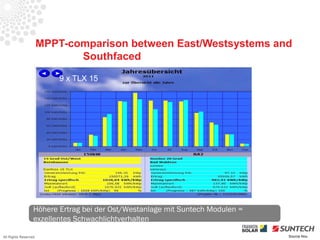

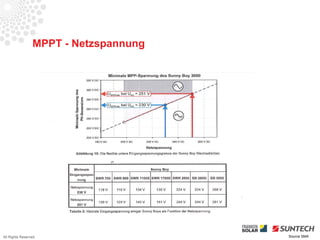

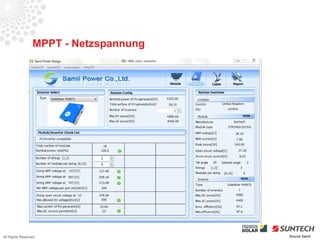

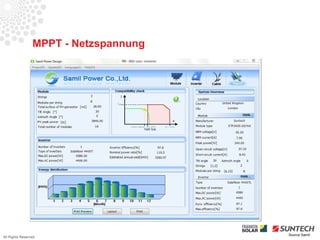

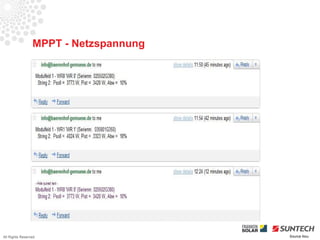

35. MPPT-comparison between East/Westsystems and
Southfaced
9 x TLX 15
Höhere Ertrag bei der Ost/Westanlage mit Suntech Modulen =
exzellentes Schwachlichtverhalten
All Rights Reserved Source Iliou

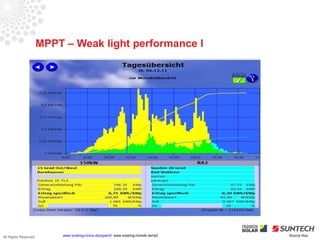

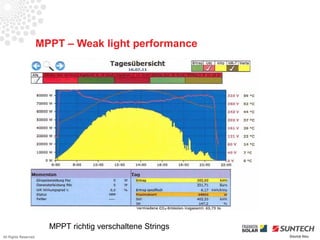

37. MPPT – Weak light performance I
All Rights Reserved www.solarlog-home.de/jspecht- www.solarlog-home6.de/ra2 Source Iliou

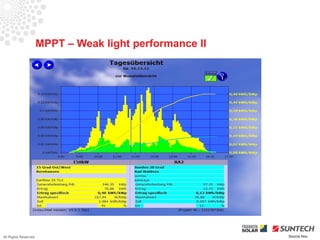

38. MPPT – Weak light performance II
All Rights Reserved Source Iliou

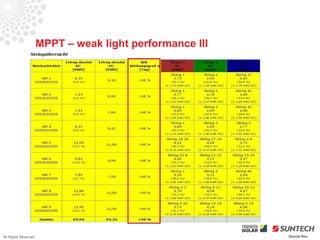

39. MPPT – weak light performance III
All Rights Reserved Source Iliou

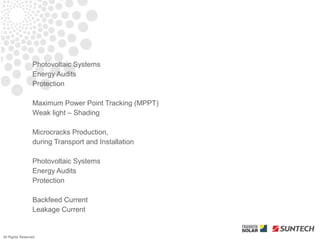

40. Photovoltaic Systems
Energy Audits
Protection
Maximum Power Point Tracking (MPPT)
Weak light – Shading
Microcracks Production,
during Transport and Installation
Photovoltaic Systems
Energy Audits
Protection
Backfeed Current
Leakage Current
All Rights Reserved

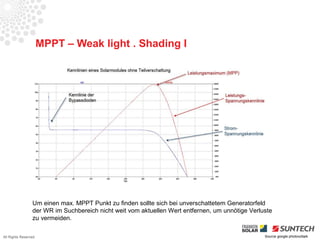

42. MPPT – Weak light . Shading I
Um einen max. MPPT Punkt zu finden sollte sich bei unverschattetem Generatorfeld
der WR im Suchbereich nicht weit vom aktuellen Wert entfernen, um unnötige Verluste
zu vermeiden.
All Rights Reserved Source google photovoltaik

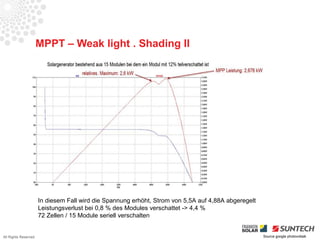

43. MPPT – Weak light . Shading II
In diesem Fall wird die Spannung erhöht, Strom von 5,5A auf 4,88A abgeregelt
Leistungsverlust bei 0,8 % des Modules verschattet -> 4,4 %
72 Zellen / 15 Module seriell verschalten
All Rights Reserved Source google photovoltaik

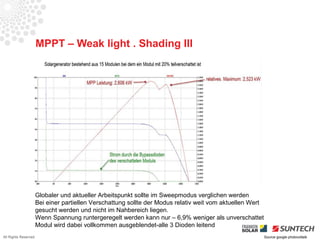

44. MPPT – Weak light . Shading III
Globaler und aktueller Arbeitspunkt sollte im Sweepmodus verglichen werden
Bei einer partiellen Verschattung sollte der Modus relativ weit vom aktuellen Wert
gesucht werden und nicht im Nahbereich liegen.
Wenn Spannung runtergeregelt werden kann nur – 6,9% weniger als unverschattet
Modul wird dabei vollkommen ausgeblendet-alle 3 Dioden leitend
All Rights Reserved Source google photovoltaik

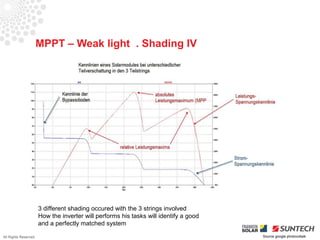

45. MPPT – Weak light . Shading IV
3 different shading occured with the 3 strings involved
How the inverter will performs his tasks will identify a good
and a perfectly matched system
All Rights Reserved Source google photovoltaik

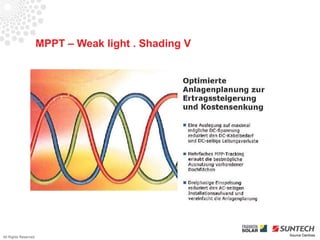

46. MPPT – Weak light . Shading V
All Rights Reserved Source Danfoss

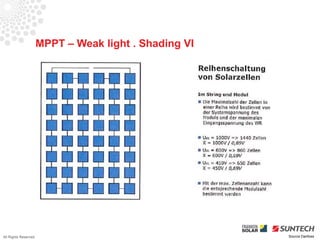

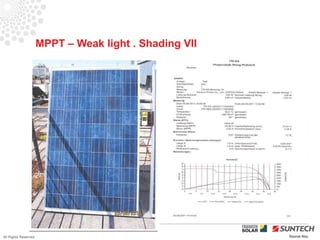

47. MPPT – Weak light . Shading VI
All Rights Reserved Source Danfoss
48. MPPT – Weak light . Shading VII
All Rights Reserved Source Iliou

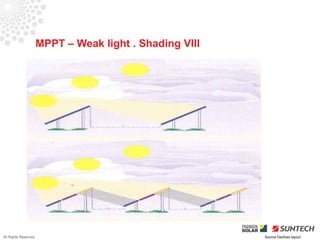

49. MPPT – Weak light . Shading VIII
All Rights Reserved Source Danfoss layout

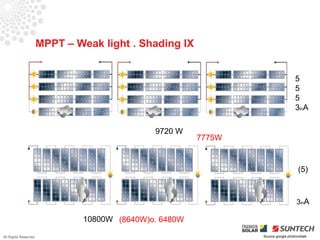

50. MPPT – Weak light . Shading IX
5
5
5
3inA
9720 W
7775W
(5)
3inA
10800W (8640W)o. 6480W
All Rights Reserved Source google photovoltaik

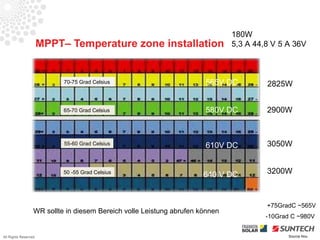

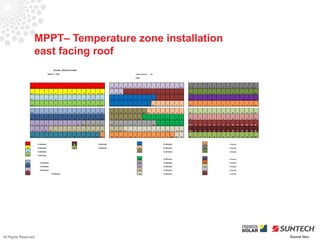

53. 180W
MPPT– Temperature zone installation 5,3 A 44,8 V 5 A 36V
70-75 Grad Celsius 565V DC 2825W
65-70 Grad Celsius 580V DC 2900W
55-60 Grad Celsius 610V DC 3050W
50 -55 Grad Celsius
640 V DC 3200W
+75GradC ~565V
WR sollte in diesem Bereich volle Leistung abrufen können
-10Grad C ~980V
All Rights Reserved Source Iliou

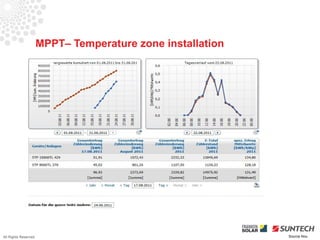

54. MPPT– Temperature zone installation
Beispiele für Verschaltungen:
3240 W 2160 W
3
5
5
5 inA 3inA 33
3in A
Besseres layout mit besserem Problematisches layout da
Jahresergebnis verschiedene Temperaturen
vorherrschen,mismatch
All Rights Reserved Source google photovoltaik
55. MPPT – Weak light performance
MPPT richtig verschaltene Strings
All Rights Reserved Source Iliou

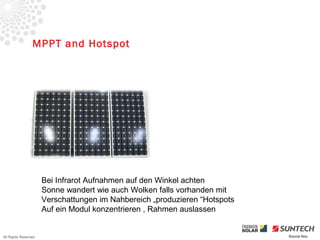

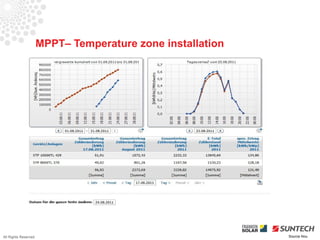

58. MPPT and Hotspot
Bei Infrarot Aufnahmen auf den Winkel achten
Sonne wandert wie auch Wolken falls vorhanden mit
Verschattungen im Nahbereich „produzieren “Hotspots
Auf ein Modul konzentrieren , Rahmen auslassen
All Rights Reserved Source Iliou
59. Photovoltaic Systems
Energy Audits
Protection
Maximum Power Point Tracking (MPPT)
Weak light – Shading
Microcracks Production,
during Transport and Installation
Photovoltaic Systems
Energy Audits
Protection
Backfeed Current
Leakage Current
All Rights Reserved
60. 04
Microcracks
Production,
Transport and
Installation
All Rights Reserved

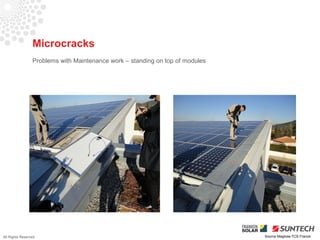

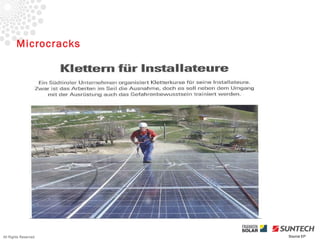

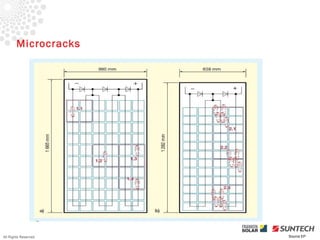

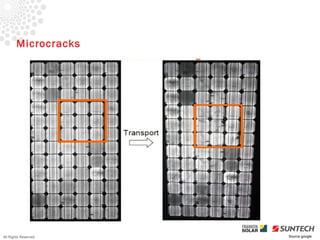

68. Microcracks
Problems with Maintenance work – standing on top of modules
All Rights Reserved Source Magliola-TCS France
69. Photovoltaic Systems
Energy Audits
Protection
Maximum Power Point Tracking (MPPT)
Weak light – Shading
Microcracks Production,
during Transport and Installation
Photovoltaic Systems
Energy Audits
Protection
Stray Currents
Leakage Current
All Rights Reserved
70. 05
Stray currents
Leakage
currents
All Rights Reserved

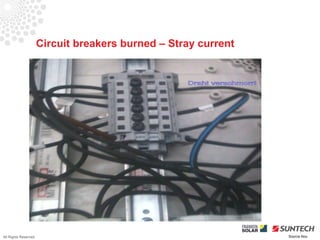

72. Stray currents with Thermal Image camera
Hotspot
4) Thermal image von vorne
5) Wenn möglich Bilder von Vorder- und Rückseite
All Rights Reserved Source Iliou –TCS Munich

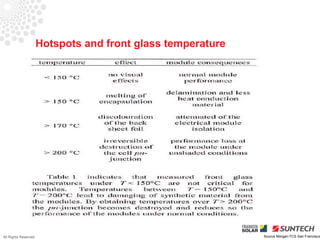

73. Hotspots and front glass temperature
Hotspots
All Rights Reserved Source Morgan-TCS San Francisco

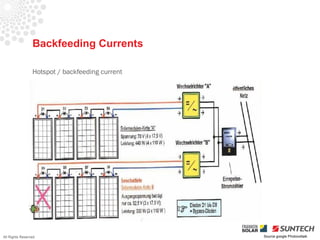

74. Backfeeding Currents
Hotspot / backfeeding current
All Rights Reserved Source google Photovoltaik

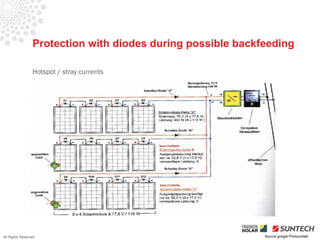

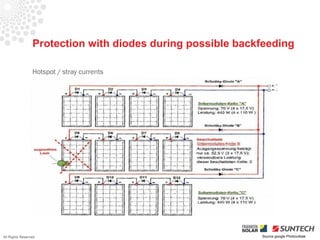

75. Protection with diodes during possible backfeeding
Hotspot / stray currents
All Rights Reserved Source google Photovoltaik
76. Protection with diodes during possible backfeeding
Hotspot / stray currents
All Rights Reserved Source google Photovoltaik

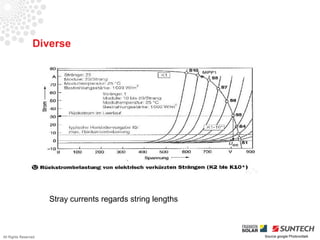

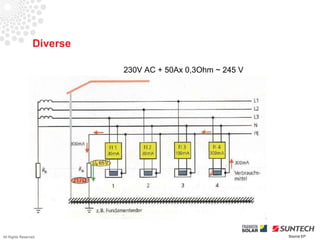

77. Diverse
Stray currents regards string lengths
All Rights Reserved Source google Photovoltaik

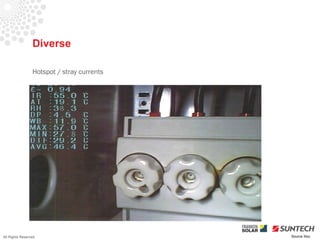

78. Diverse
Hotspot / stray currents
All Rights Reserved Source Iliou

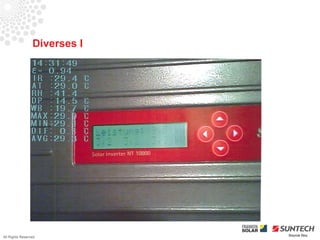

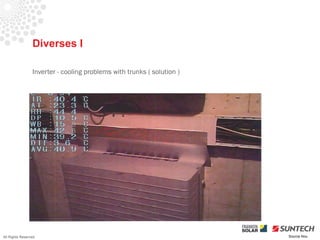

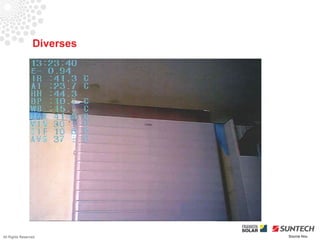

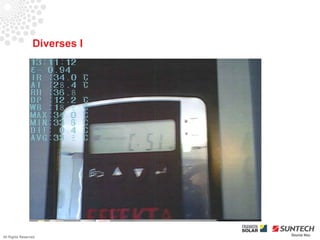

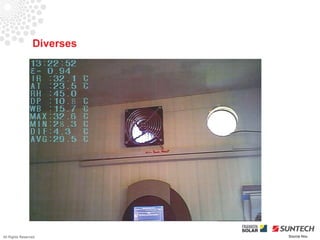

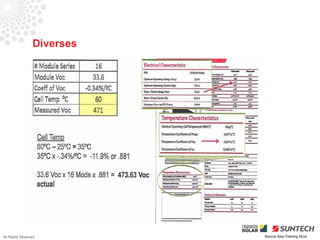

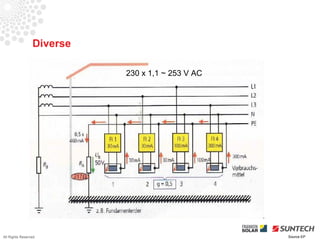

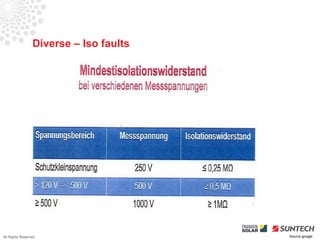

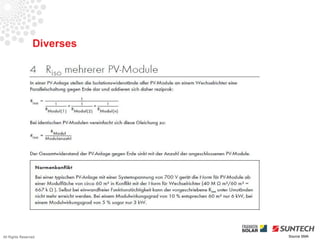

79. Diverses I
Inverter - cooling problems with trunks ( solution )
All Rights Reserved Source Iliou
