What´s new in the world of NeDi? Quite a bit has happened around the software, but much more with the software itself. Many new features have been added to support stacked switches, geocoding has been improved and the rack view make the topologies shine like new. Furthermore, there are many new features to simplify the troubleshooting and monitoring of the network.

2. Nov-14
NeDi – find IT
2
•Was ist NeDi?
•Wie funktioniert’s?
•Was bringt’s?

3. Nov-14
NeDi – find IT
3
HP MASE - Network Infrastructure
HP ASE - ProCurve Mobility
HP ASE - ProCurve Network Management
NeDi “Erfunden”
UBS Investment Bank ans Internet angeschlossen!
Lebte 2 Jahre in Florida
Dipl. Ing. (HTL/FH) Nachrichtentechnik
4/2014

4. Nov-14
NeDi – find IT
4
•Netzwerk Management & Überwachung
•Konfigurationen sichern
•IT Inventarisieren
•Computer finden & verfolgen
•Sicherheits-audits & mehr
•VM Management
•Printer Management

5. Nov-14
NeDi – find IT
5

6. Nov-14
NeDi – find IT
6

7. Nov-14
NeDi – find IT
7

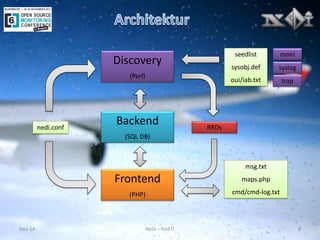

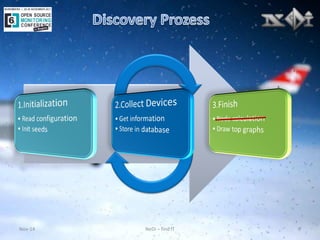

8. Discovery (Perl)
nedi.conf
Backend (SQL DB)
Frontend
(PHP)
seedlist
sysobj.def
oui/iab.txt
msg.txt
maps.php
cmd/cmd-log.txt
RRDs
Nov-14
NeDi – find IT
8
moni
syslog
trap

9. Nov-14
NeDi – find IT
9

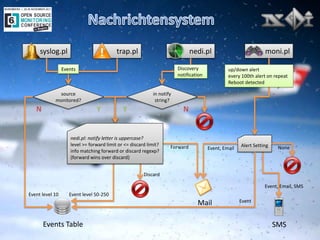

10. syslog.pl
nedi.pl
trap.pl
moni.pl
source monitored?
N
Y
Event level 10
Discard
Forward
Event level 50-250
in notify string?
Y
N
Alert Setting
None
Event, Email
Event
Event, Email, SMS
up/down alert every 100th alert on repeat Reboot detected
Discovery notification
Events Table
Mail
SMS
Events
nedi.pl: notify letter is uppercase?
level >= forward limit or <= discard limit?
info matching forward or discard regexp?
(forward wins over discard)

11. Nov-14
NeDi – find IT
11

12. Nov-14

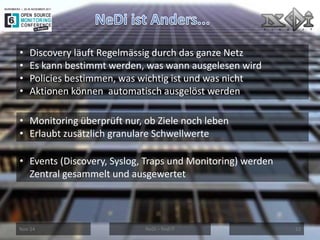

NeDi – find IT
12
•Discovery läuft Regelmässig durch das ganze Netz
•Es kann bestimmt werden, was wann ausgelesen wird
•Policies bestimmen, was wichtig ist und was nicht
•Aktionen können automatisch ausgelöst werden
•Monitoring überprüft nur, ob Ziele noch leben
•Erlaubt zusätzlich granulare Schwellwerte
•Events (Discovery, Syslog, Traps und Monitoring) werden Zentral gesammelt und ausgewertet

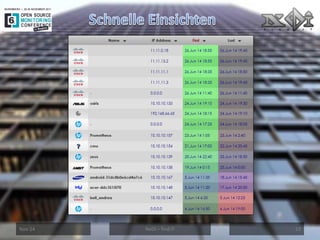

13. Nov-14
NeDi – find IT
13

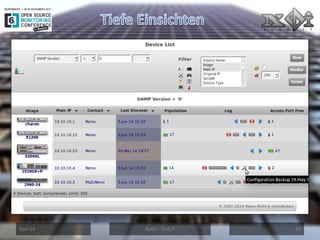

14. Nov-14
NeDi – find IT
14

15. Nov-14
NeDi – find IT
15

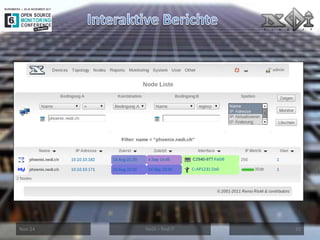

16. Nov-14
NeDi – find IT
16
•Berichte auswählen
•Ggf. Filter setzen
•Graph oder Map hinzufügen
•Als Bookmark speichern

17. Nov-14
SNMP Location String:
Maledives;Meeru;My Bar;E;Wallrack
NeDi – find IT
17

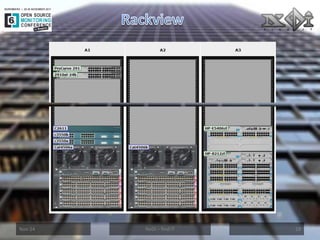

18. Nov-14
18
NeDi – find IT

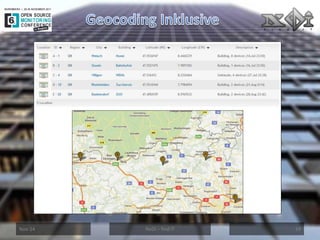

19. Nov-14
NeDi – find IT
19

20. Nov-14
NeDi – find IT
20

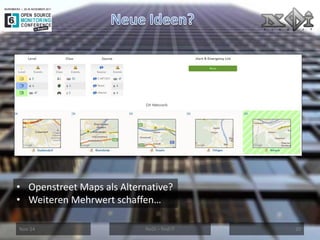

•Openstreet Maps als Alternative?
•Weiteren Mehrwert schaffen…

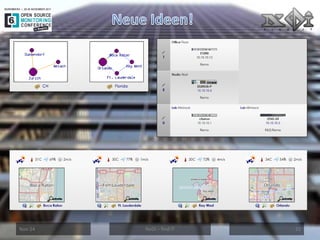

21. Nov-14
NeDi – find IT
21

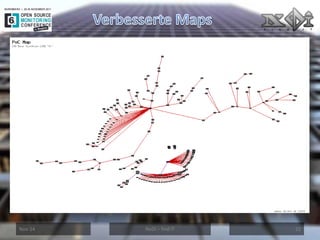

22. Nov-14
NeDi – find IT
22

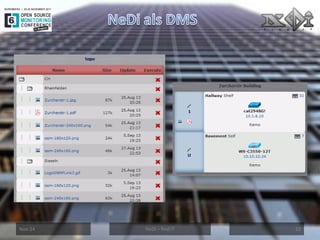

23. Nov-14
NeDi – find IT
23

24. Nov-14

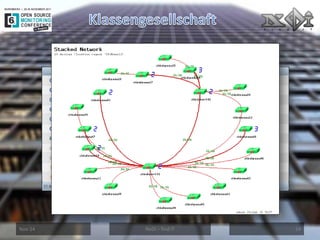

24
NeDi – find IT

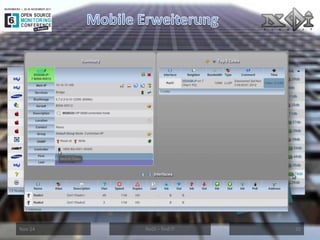

25. Nov-14
25
NeDi – find IT

26. Nov-14

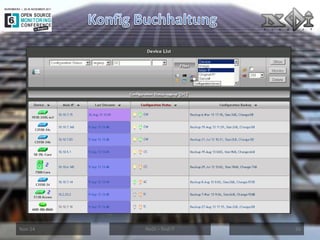

NeDi – find IT
26

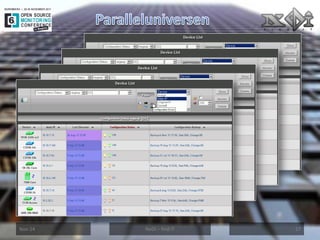

27. Nov-14
NeDi – find IT
27

28. Nov-14

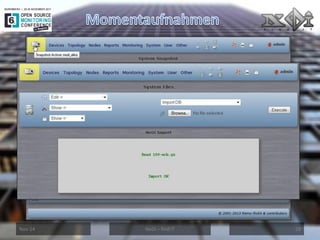

NeDi – find IT
28

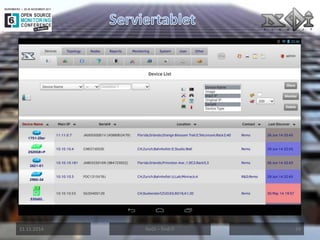

29. 21.11.2014
29
NeDi – find IT

30. Nov-14
NeDi – find IT
30

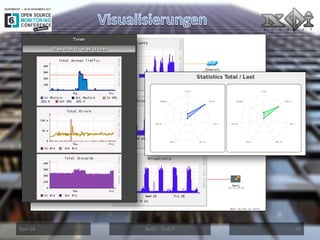

31. Nov-14
NeDi – find IT
31

32. Nov-14
NeDi – find IT
32

33. Nov-14

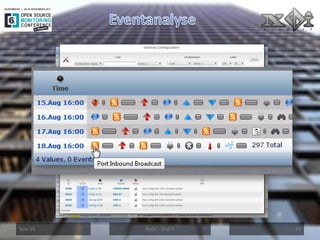

NeDi – find IT
33

34. Nov-14
NeDi – find IT
34

35. Nov-14
NeDi – find IT
35

36. Nov-14

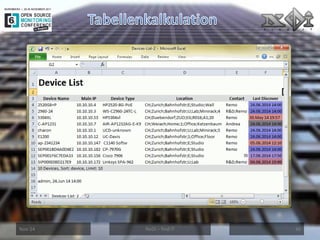

NeDi – find IT
36

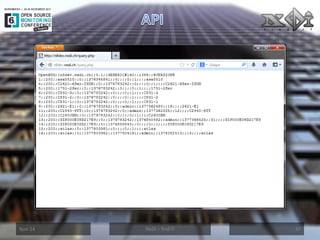

37. Nov-14
NeDi – find IT
37

38. Nov-14
NeDi – find IT
38

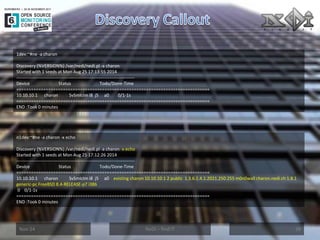

1dev:~#ne -a charon
Discovery (%VERSION%) /var/nedi/nedi.pl -a charon
Started with 1 seeds at Mon Aug 25 17:13:55 2014
-------------------------------------------------------------------------------
Device Status Todo/Done-Time
===============================================================================
10.10.10.1 charon SvSmIcIm i8 j5 a0 0/1-1s
===============================================================================
END :Took 0 minutes
n1dev:~#ne -a charon -x echo Discovery (%VERSION%) /var/nedi/nedi.pl -a charon -x echo Started with 1 seeds at Mon Aug 25 17:12:26 2014 ------------------------------------------------------------------------------- Device Status Todo/Done-Time =============================================================================== 10.10.10.1 charon SvSmIcIm i8 j5 a0 existing charon 10.10.10.1 2 public 1.3.6.1.4.1.2021.250.255 m0n0wall charon.nedi.ch 1.8.1 generic-pc FreeBSD 8.4-RELEASE-p7 i386 0 0/1-1s =============================================================================== END :Took 0 minutes
