1. JavaOne 2013
Clean Sweep
The File System
Manish Maheshwari
mmaheshwari@verisign.com
Anirban Mukherjee
amukherjee@verisign.com

2. Speakers
Manish
Software Architect, Verisign
Anirban
Software Architect, Verisign
Verisign Public 2

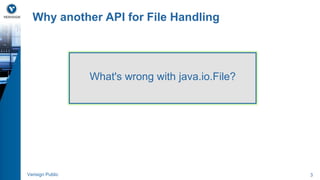

3. Why another API for File Handling
What's wrong with java.io.File?
Verisign Public 3

4. Why another API for File Handling
• Lack of Information on what’s going on
• File operations are not atomic
• No bulk access to file attributes
• Doesn’t scale for Directory Listing
• Missing basic file operations
• Copying File vs Copying File Attributes
Verisign Public 4

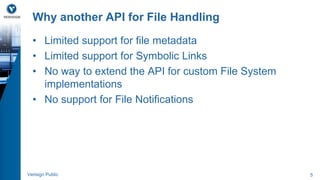

5. Why another API for File Handling
• Limited support for file metadata
• Limited support for Symbolic Links
• No way to extend the API for custom File System
implementations
• No support for File Notifications
Verisign Public 5

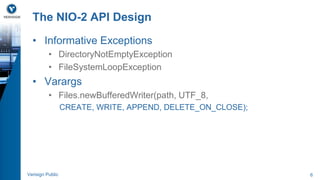

6. The NIO-2 API Design
• Informative Exceptions
• DirectoryNotEmptyException
• FileSystemLoopException
• Varargs
• Files.newBufferedWriter(path, UTF_8,
CREATE, WRITE, APPEND, DELETE_ON_CLOSE);
Verisign Public 6

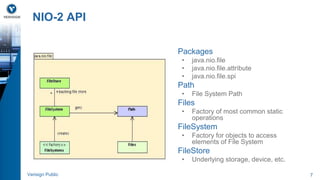

7. NIO-2 API
• Packages
• java.nio.file
• java.nio.file.attribute
• java.nio.file.spi
• Path
• File System Path
• Files
• Factory of most common static
operations
• FileSystem
• Factory for objects to access
elements of File System
• FileStore
• Underlying storage, device, etc.
Verisign Public 7

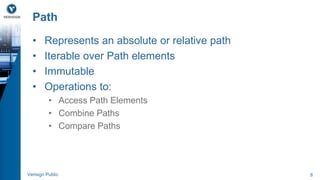

8. Path
• Represents an absolute or relative path
• Iterable over Path elements
• Immutable
• Operations to:
• Access Path Elements
• Combine Paths
• Compare Paths
Verisign Public 8

9. Creating Path
Path path =
FileSystems.getDefault().getPath("/
foo");
Verisign Public 9

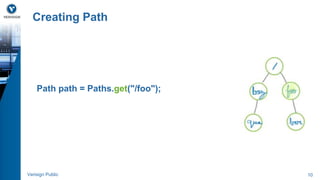

10. Creating Path
Path path = Paths.get("/foo");
Verisign Public 10

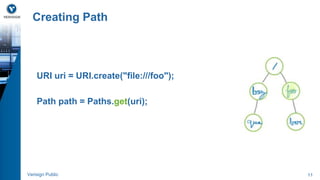

11. Creating Path
URI uri = URI.create("file:///foo");
Path path = Paths.get(uri);
Verisign Public 11

12. Creating Path
File file = new File("foo");
Path path = file.getPath();
Verisign Public 12

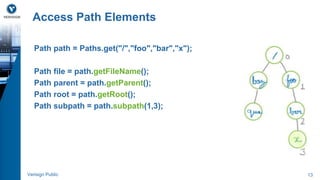

13. Access Path Elements
Path path = Paths.get("/","foo","bar","x");
Path file = path.getFileName();
Path parent = path.getParent();
Path root = path.getRoot();
Path subpath = path.subpath(1,3);
Verisign Public 13

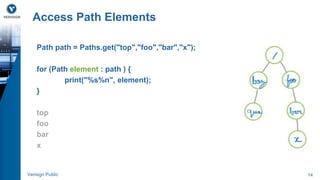

14. Access Path Elements
Path path = Paths.get("top","foo","bar","x");
for (Path element : path ) {
print("%s%n", element);
}
top
foo
bar
x
Verisign Public 14

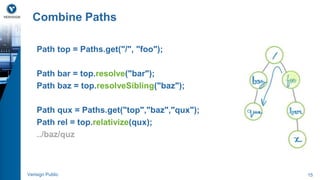

15. Combine Paths
Path top = Paths.get("/", "foo");
Path bar = top.resolve("bar");
Path baz = top.resolveSibling("baz");
Path qux = Paths.get("top","baz","qux");
Path rel = top.relativize(qux);
../baz/quz
Verisign Public 15

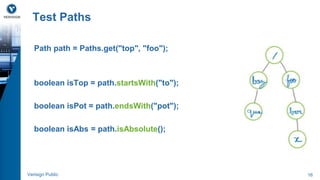

16. Test Paths
Path path = Paths.get("top", "foo");
boolean isTop = path.startsWith("to");
boolean isPot = path.endsWith("pot");
boolean isAbs = path.isAbsolute();
Verisign Public 16

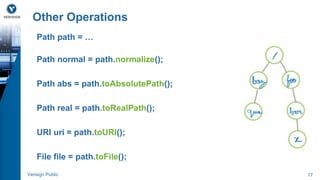

17. Other Operations
Path path = …
Path normal = path.normalize();
Path abs = path.toAbsolutePath();
Path real = path.toRealPath();
URI uri = path.toURI();
File file = path.toFile();
Verisign Public 17

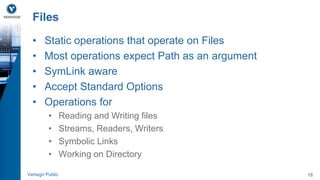

18. Files
• Static operations that operate on Files
• Most operations expect Path as an argument
• SymLink aware
• Accept Standard Options
• Operations for
• Reading and Writing files
• Streams, Readers, Writers
• Symbolic Links
• Working on Directory
Verisign Public 18

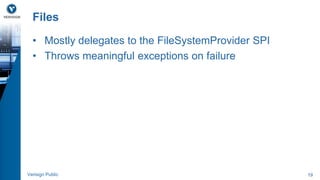

19. Files
• Mostly delegates to the FileSystemProvider SPI
• Throws meaningful exceptions on failure
Verisign Public 19

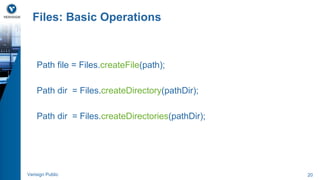

20. Files: Basic Operations
Path file = Files.createFile(path);
Path dir = Files.createDirectory(pathDir);
Path dir = Files.createDirectories(pathDir);
Verisign Public 20

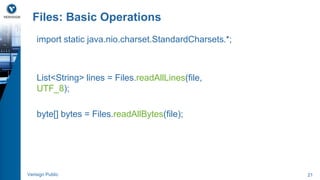

21. Files: Basic Operations
import static java.nio.charset.StandardCharsets.*;
List<String> lines = Files.readAllLines(file,
UTF_8);
byte[] bytes = Files.readAllBytes(file);
Verisign Public 21

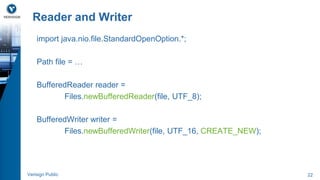

22. Reader and Writer
import java.nio.file.StandardOpenOption.*;
Path file = …
BufferedReader reader =
Files.newBufferedReader(file, UTF_8);
BufferedWriter writer =
Files.newBufferedWriter(file, UTF_16, CREATE_NEW);
Verisign Public 22

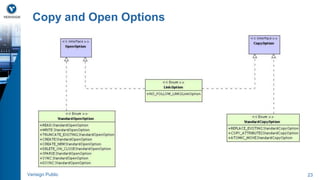

23. Copy and Open Options
Verisign Public 23

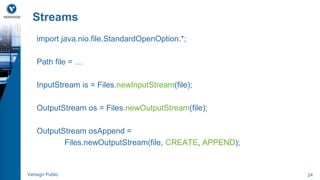

24. Streams
import java.nio.file.StandardOpenOption.*;
Path file = …
InputStream is = Files.newInputStream(file);
OutputStream os = Files.newOutputStream(file);
OutputStream osAppend =
Files.newOutputStream(file, CREATE, APPEND);
Verisign Public 24

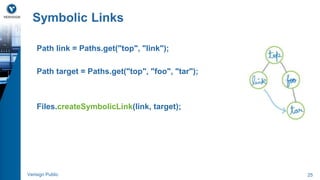

25. Symbolic Links
Path link = Paths.get("top", "link");
Path target = Paths.get("top", "foo", "tar");
Files.createSymbolicLink(link, target);
Verisign Public 25

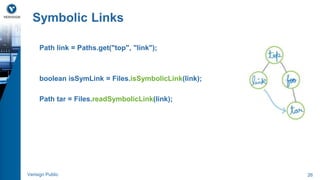

26. Symbolic Links
Path link = Paths.get("top", "link");
boolean isSymLink = Files.isSymbolicLink(link);
Path tar = Files.readSymbolicLink(link);
Verisign Public 26

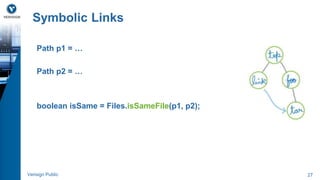

27. Symbolic Links
Path p1 = …
Path p2 = …
boolean isSame = Files.isSameFile(p1, p2);
Verisign Public 27

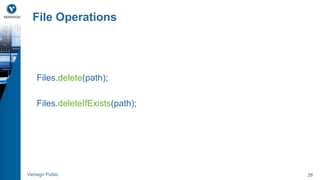

28. File Operations
Files.delete(path);
Files.deleteIfExists(path);
Verisign Public 28

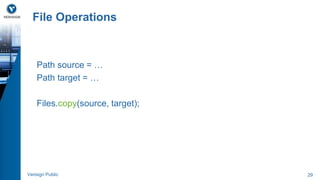

29. File Operations
Path source = …
Path target = …
Files.copy(source, target);
Verisign Public 29

30. File Operations
Path source = …
Path target = …
Files.move(source, target);
Verisign Public 30

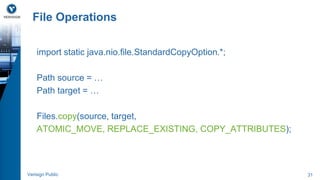

31. File Operations
import static java.nio.file.StandardCopyOption.*;
Path source = …
Path target = …
Files.copy(source, target,
ATOMIC_MOVE, REPLACE_EXISTING, COPY_ATTRIBUTES);
Verisign Public 31

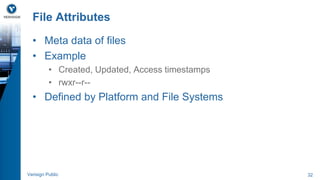

32. File Attributes
• Meta data of files
• Example
• Created, Updated, Access timestamps
• rwxr--r--
• Defined by Platform and File Systems
Verisign Public 32

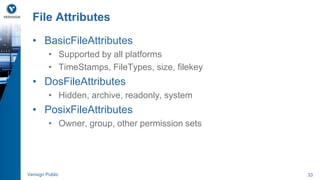

33. File Attributes
• BasicFileAttributes
• Supported by all platforms
• TimeStamps, FileTypes, size, filekey
• DosFileAttributes
• Hidden, archive, readonly, system
• PosixFileAttributes
• Owner, group, other permission sets
Verisign Public 33

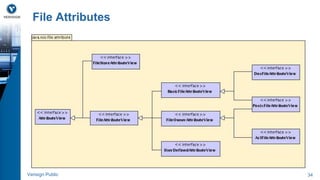

34. File Attributes
Verisign Public 34

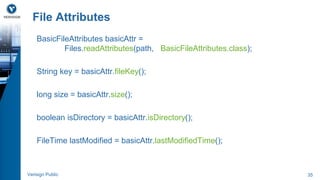

35. File Attributes
BasicFileAttributes basicAttr =
Files.readAttributes(path, BasicFileAttributes.class);
String key = basicAttr.fileKey();
long size = basicAttr.size();
boolean isDirectory = basicAttr.isDirectory();
FileTime lastModified = basicAttr.lastModifiedTime();
Verisign Public 35

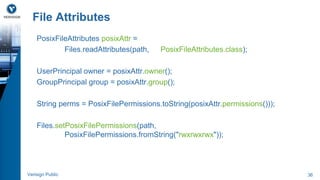

36. File Attributes
PosixFileAttributes posixAttr =
Files.readAttributes(path, PosixFileAttributes.class);
UserPrincipal owner = posixAttr.owner();
GroupPrincipal group = posixAttr.group();
String perms = PosixFilePermissions.toString(posixAttr.permissions()));
Files.setPosixFilePermissions(path,
PosixFilePermissions.fromString("rwxrwxrwx"));
Verisign Public 36

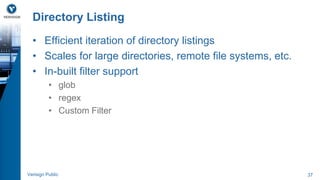

37. Directory Listing
• Efficient iteration of directory listings
• Scales for large directories, remote file systems, etc.
• In-built filter support
• glob
• regex
• Custom Filter
Verisign Public 37

38. Directory Listing
try
(DirectoryStream<Path> dirStream =
Files.newDirectoryStream(dir,"*c*"))
{
for (Path path : dirStream) {
print("%s%n", path.toAbsolutePath());
}
}
Verisign Public 38

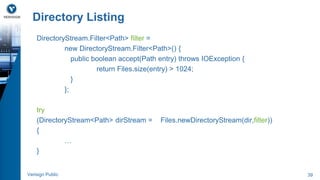

39. Directory Listing
DirectoryStream.Filter<Path> filter =
new DirectoryStream.Filter<Path>() {
public boolean accept(Path entry) throws IOException {
return Files.size(entry) > 1024;
}
};
try
(DirectoryStream<Path> dirStream = Files.newDirectoryStream(dir,filter))
{
…
}
Verisign Public 39

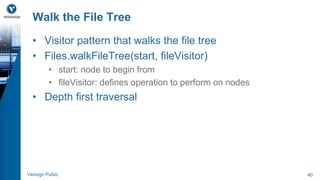

40. Walk the File Tree
• Visitor pattern that walks the file tree
• Files.walkFileTree(start, fileVisitor)
• start: node to begin from
• fileVisitor: defines operation to perform on nodes
• Depth first traversal
Verisign Public 40

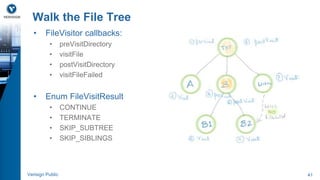

41. Walk the File Tree
• FileVisitor callbacks:
• preVisitDirectory
• visitFile
• postVisitDirectory
• visitFileFailed
• Enum FileVisitResult
• CONTINUE
• TERMINATE
• SKIP_SUBTREE
• SKIP_SIBLINGS
Verisign Public 41

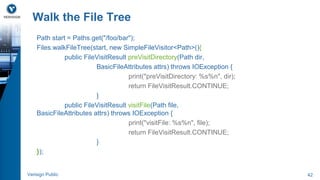

42. Walk the File Tree
Path start = Paths.get("/foo/bar");
Files.walkFileTree(start, new SimpleFileVisitor<Path>(){
public FileVisitResult preVisitDirectory(Path dir,
BasicFileAttributes attrs) throws IOException {
print("preVisitDirectory: %s%n", dir);
return FileVisitResult.CONTINUE;
}
public FileVisitResult visitFile(Path file,
BasicFileAttributes attrs) throws IOException {
print("visitFile: %s%n", file);
return FileVisitResult.CONTINUE;
}
});
Verisign Public 42

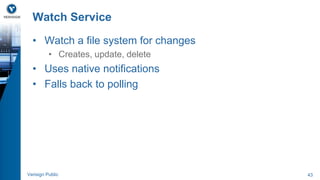

43. Watch Service
• Watch a file system for changes
• Creates, update, delete
• Uses native notifications
• Falls back to polling
Verisign Public 43

44. Watch Service
Verisign Public 44

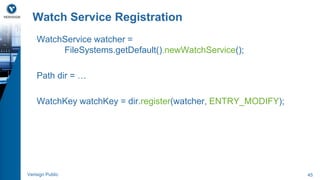

45. Watch Service Registration
WatchService watcher =
FileSystems.getDefault().newWatchService();
Path dir = …
WatchKey watchKey = dir.register(watcher, ENTRY_MODIFY);
Verisign Public 45

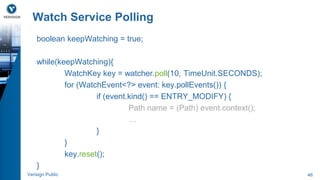

46. Watch Service Polling
boolean keepWatching = true;
while(keepWatching){
WatchKey key = watcher.poll(10, TimeUnit.SECONDS);
for (WatchEvent<?> event: key.pollEvents()) {
if (event.kind() == ENTRY_MODIFY) {
Path name = (Path) event.context();
…
}
}
key.reset();
}
Verisign Public 46

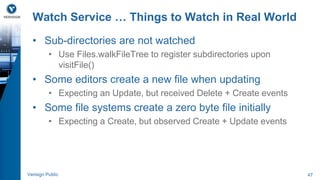

47. Watch Service … Things to Watch in Real World
• Sub-directories are not watched
• Use Files.walkFileTree to register subdirectories upon
visitFile()
• Some editors create a new file when updating
• Expecting an Update, but received Delete + Create events
• Some file systems create a zero byte file initially
• Expecting a Create, but observed Create + Update events
Verisign Public 47

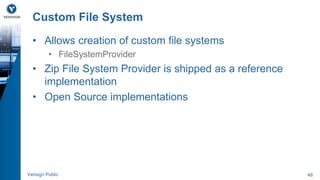

48. Custom File System
• Allows creation of custom file systems
• FileSystemProvider
• Zip File System Provider is shipped as a reference
implementation
• Open Source implementations
Verisign Public 48

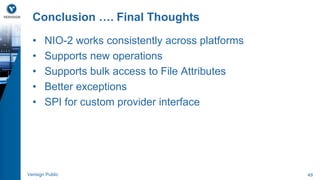

49. Conclusion …. Final Thoughts
• NIO-2 works consistently across platforms
• Supports new operations
• Supports bulk access to File Attributes
• Better exceptions
• SPI for custom provider interface
Verisign Public 49
