Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungsprobleme in AWS lösen
Das Dokument beschreibt Methoden zur Lösung von Verbindungsproblemen in AWS-Architekturen, einschließlich der Verwendung von VPC Reachability Analyzer, Metriken und Flussprotokollen. Es werden verschiedene Ansätze zur Überwachung und Analyse des Netzwerkverkehrs vorgestellt, wie z.B. Traffic Mirroring und Packet Capture. Zusätzlich werden Projekte von Aidan Steele hervorgehoben, die den Prozess erleichtern könnten.
Wenn selbst ‘erlaube allen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungsprobleme in AWS lösen
- 1. Wenn selbst ‘erlaubeallen Verkehr von 0.0.0.0/0’ nicht hilft - Verbindungsprobleme in AWS lösen Steffen Gebert (@StGebert) Wolfgang Schäfer (@wo_wue) AWS Community Day DACH in Dresden 19.10.2022
- 2.
- 3. This is OurArchitecture 3 VPC left 10.1.0.0/16 VPC right 10.2.0.0/16 AWS Transit Gateway EC2 instance client Amazon API Gateway VPC Endpoint Transit Gateway Attachment Transit Gateway Attachment

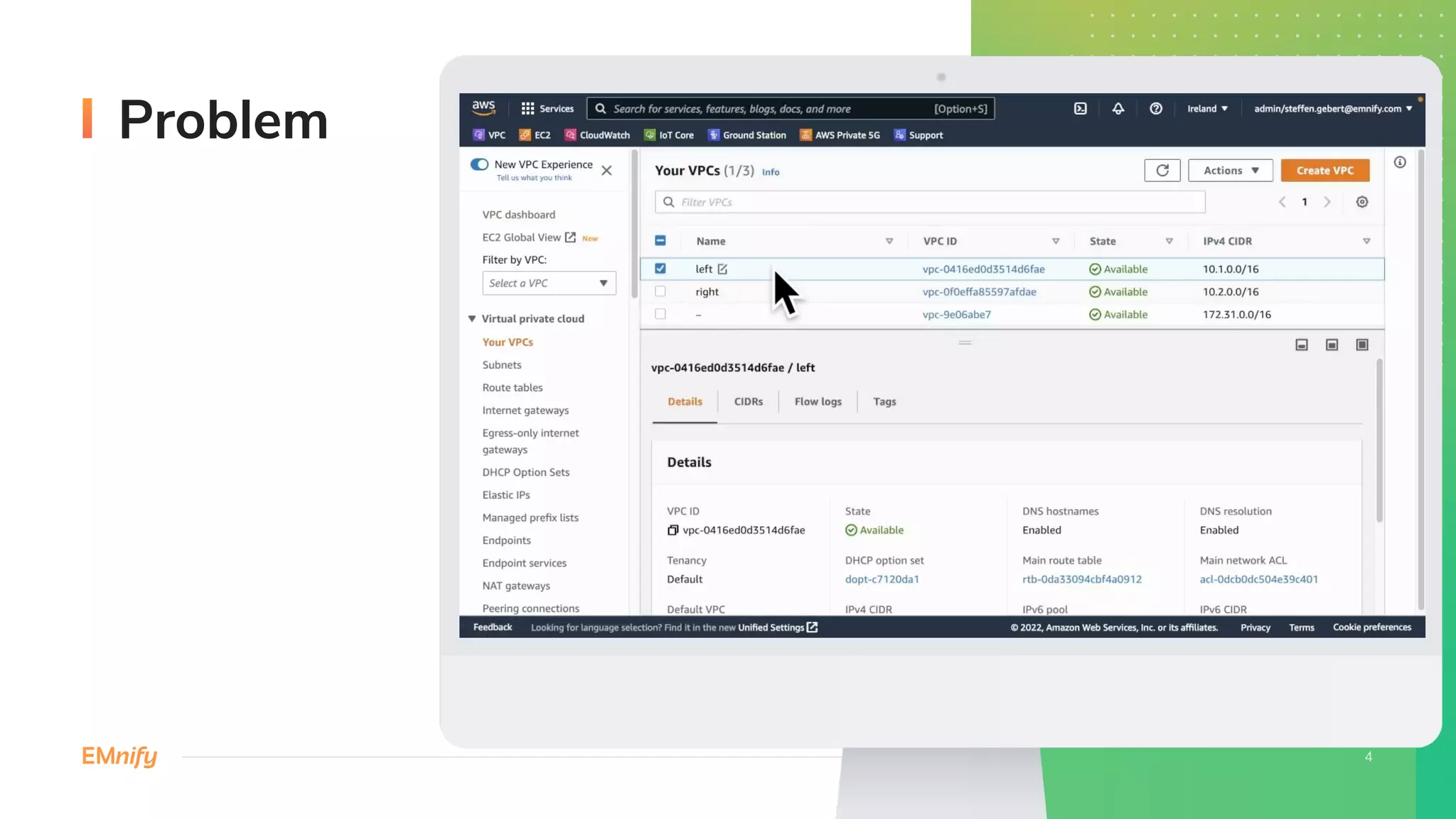

- 4.

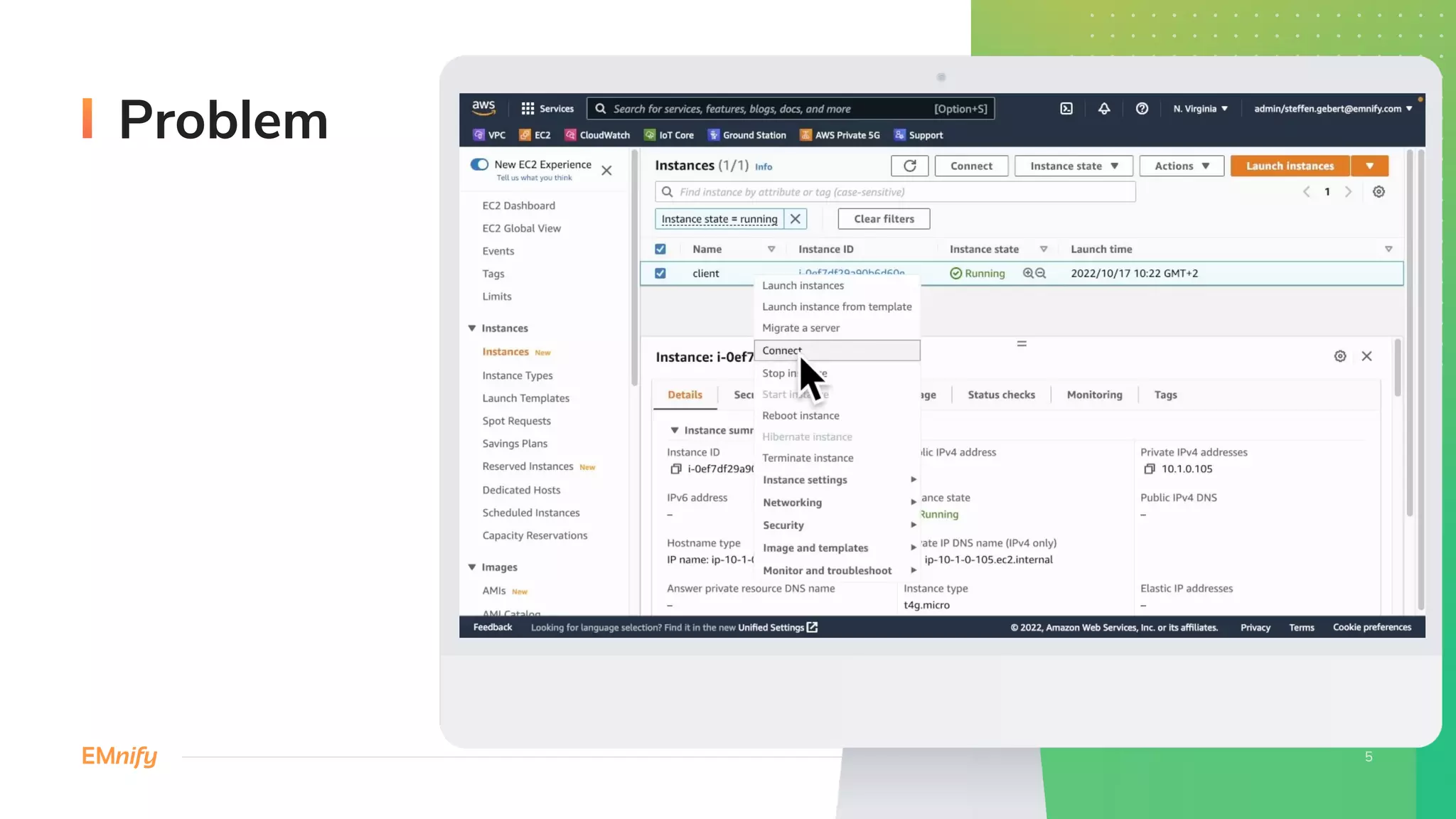

- 5.

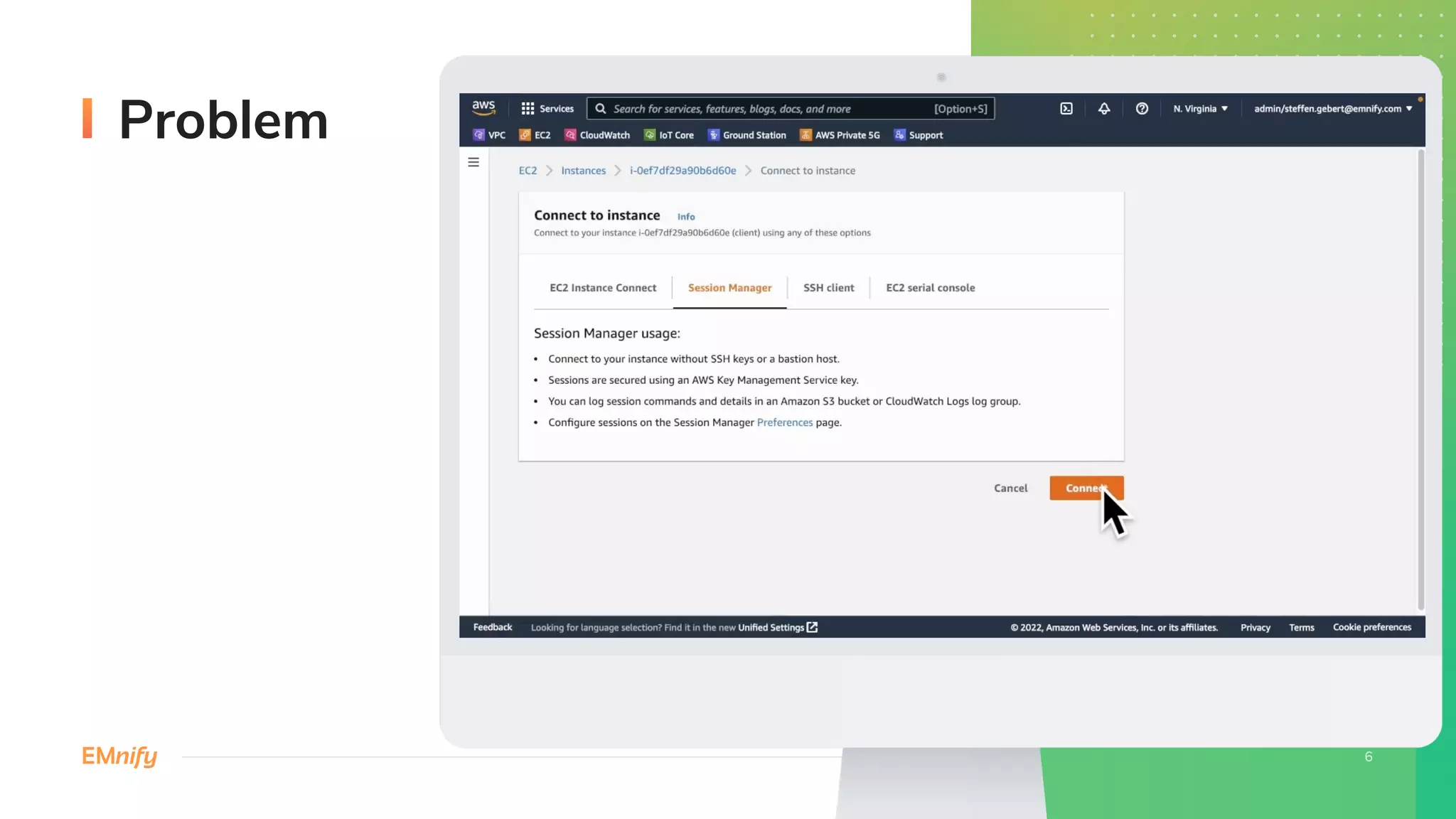

- 6.

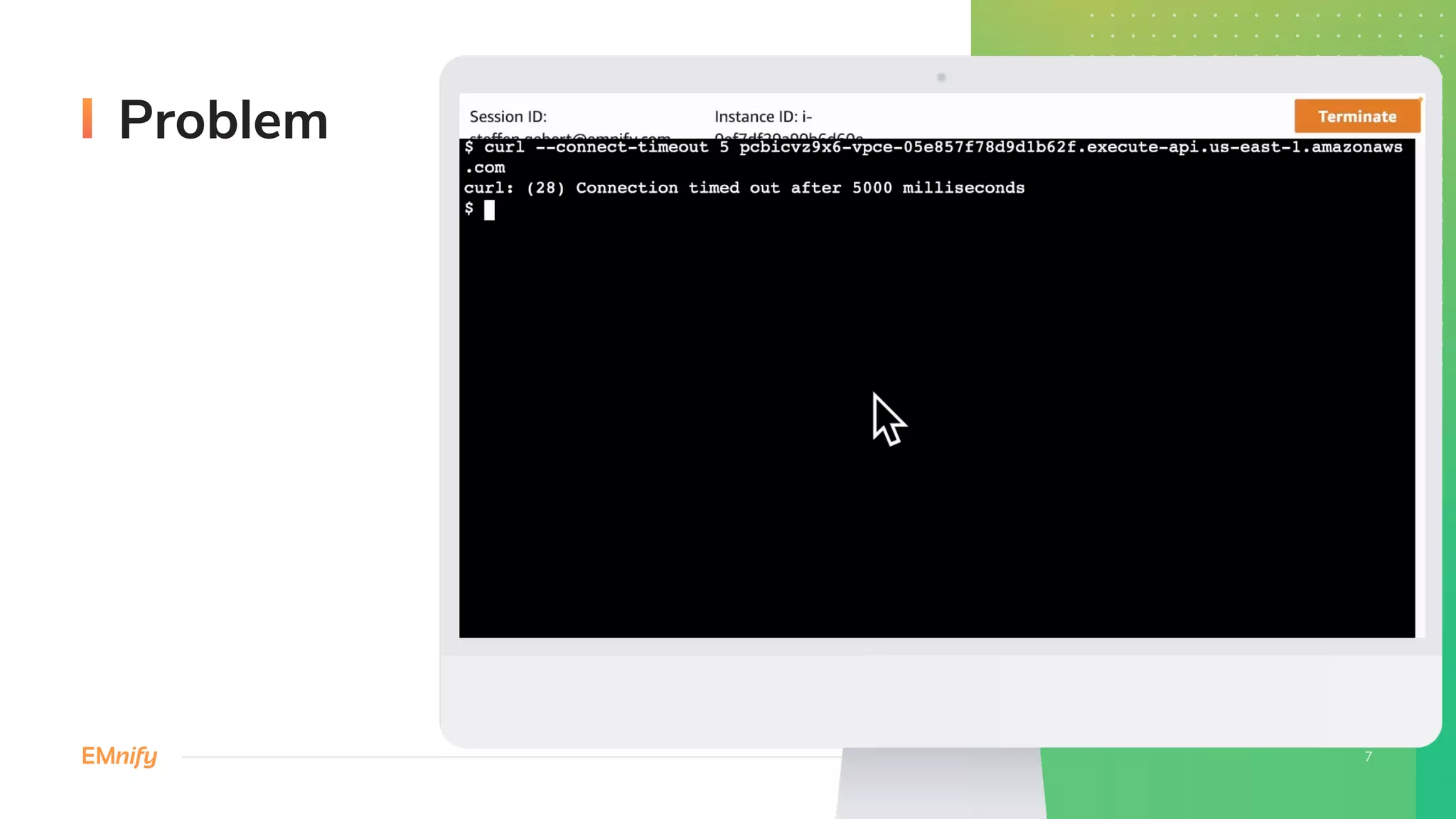

- 7.

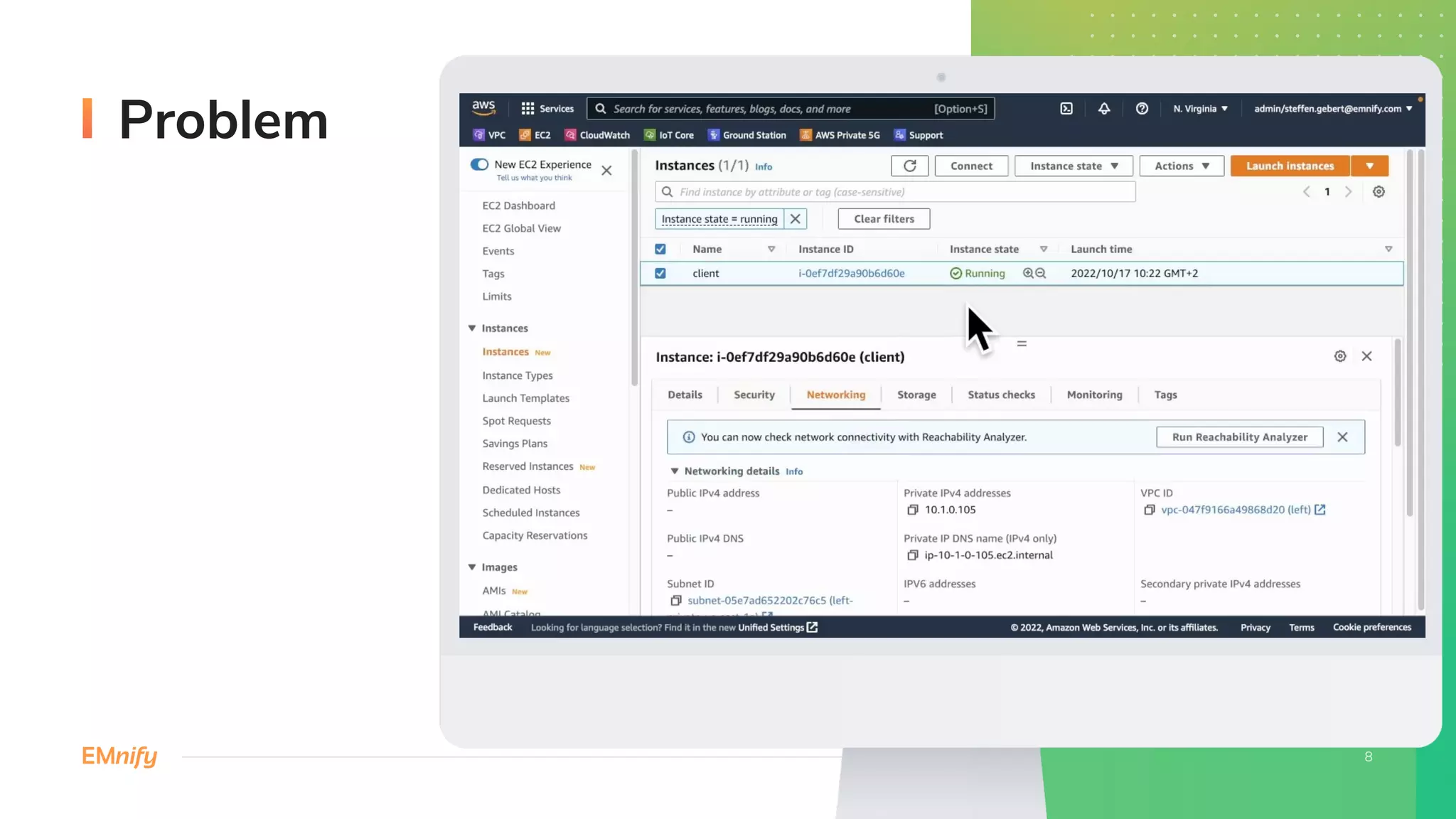

- 8.

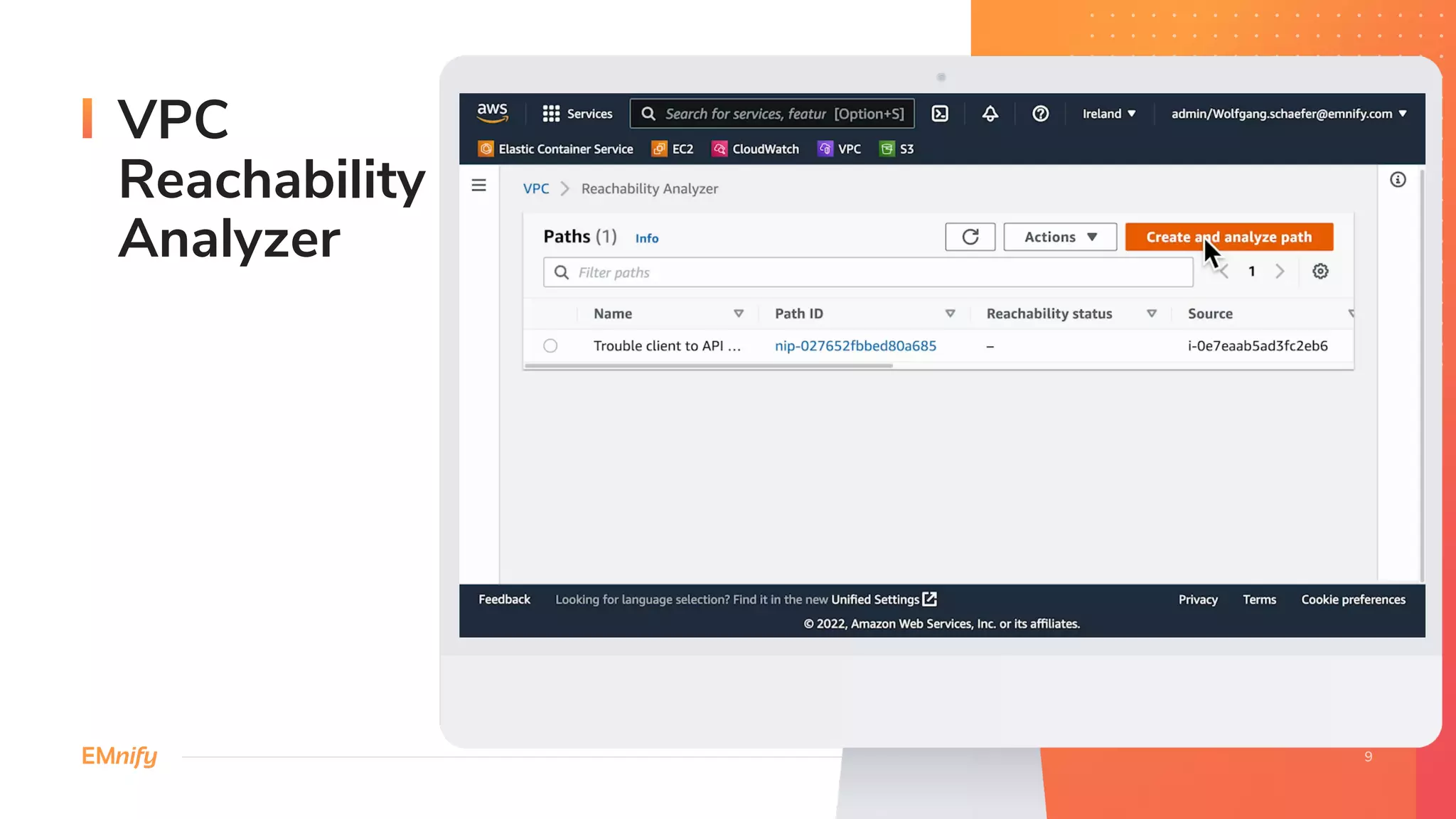

- 9.

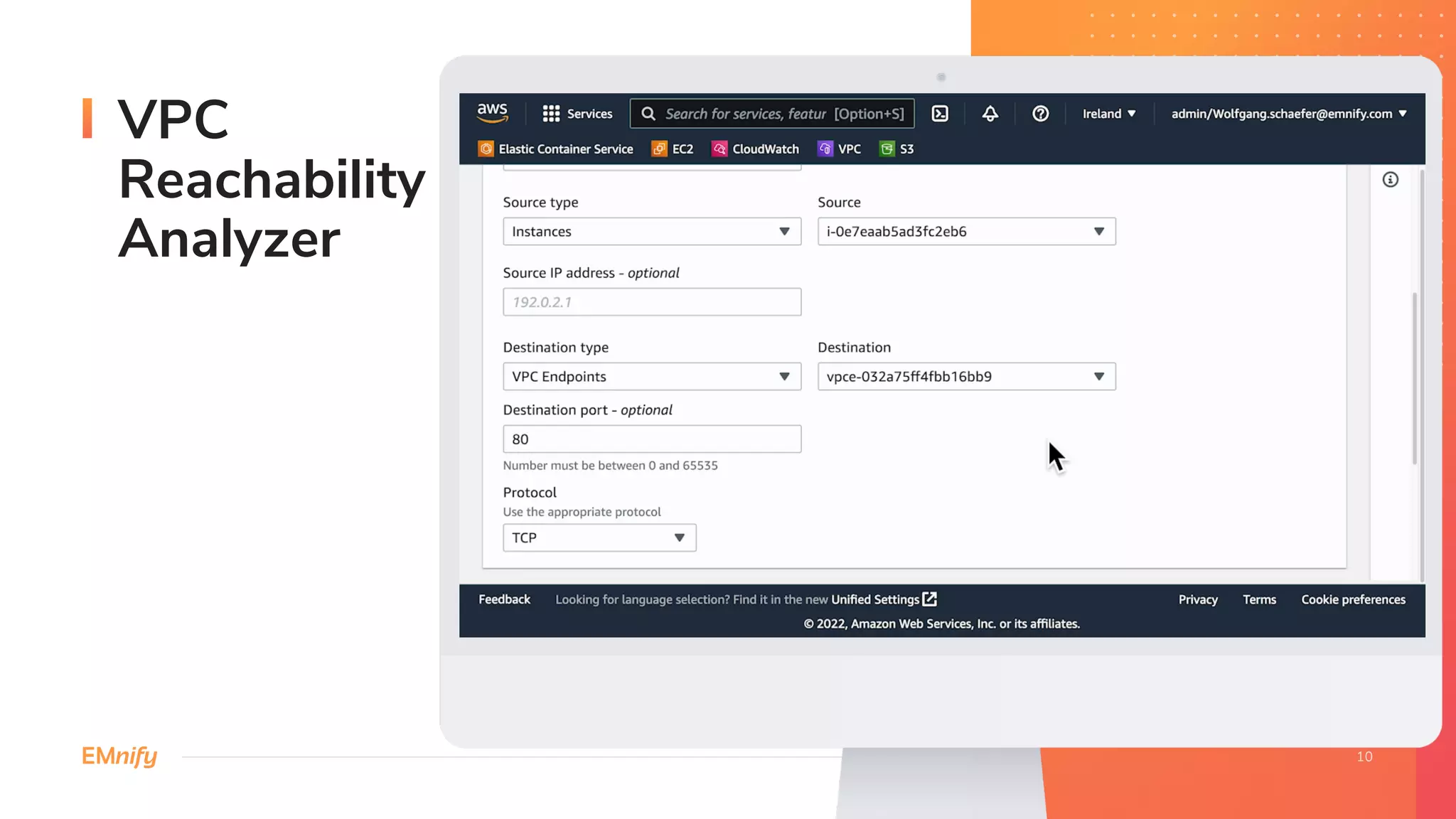

- 10.

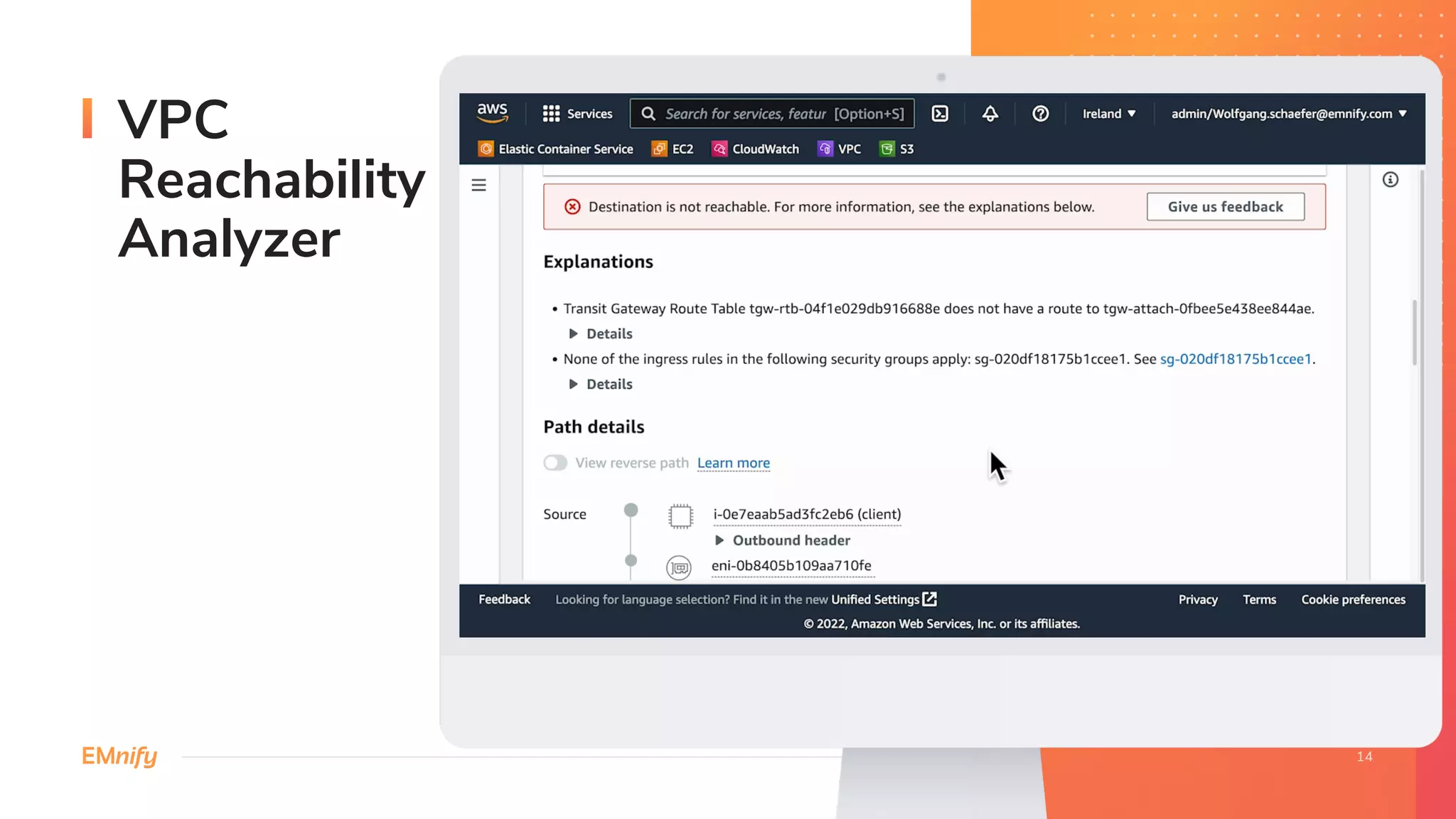

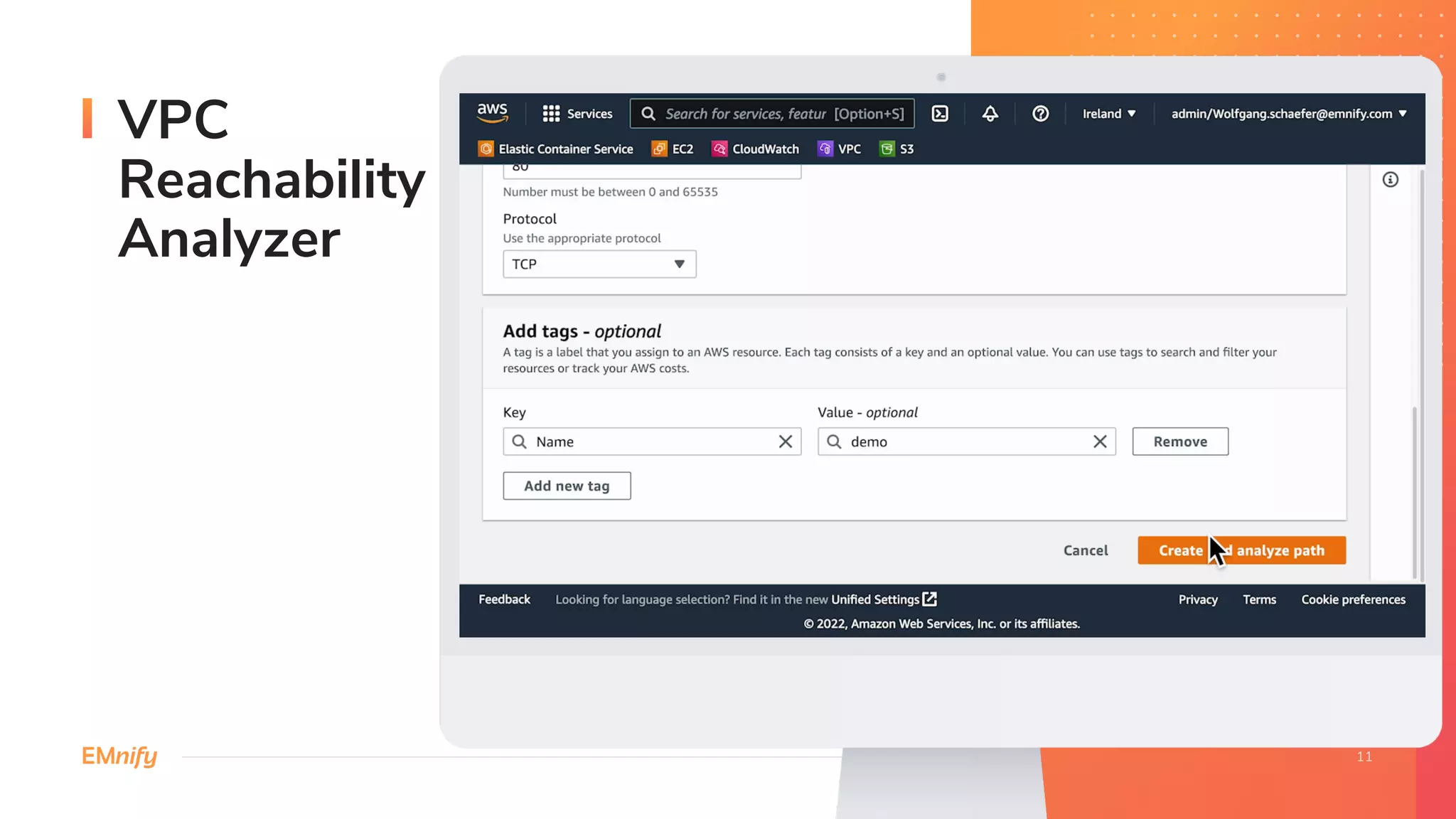

- 11.

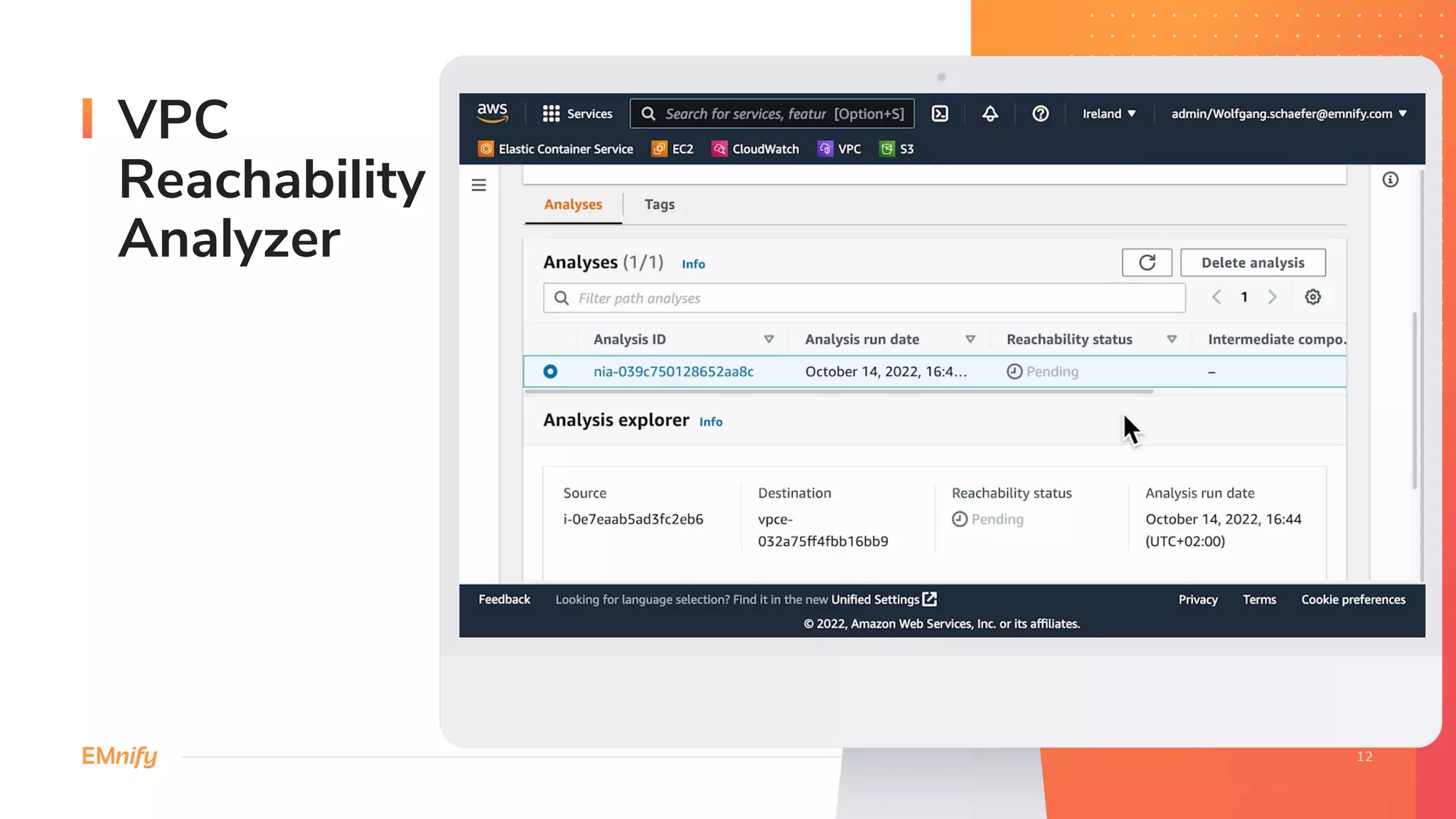

- 12.

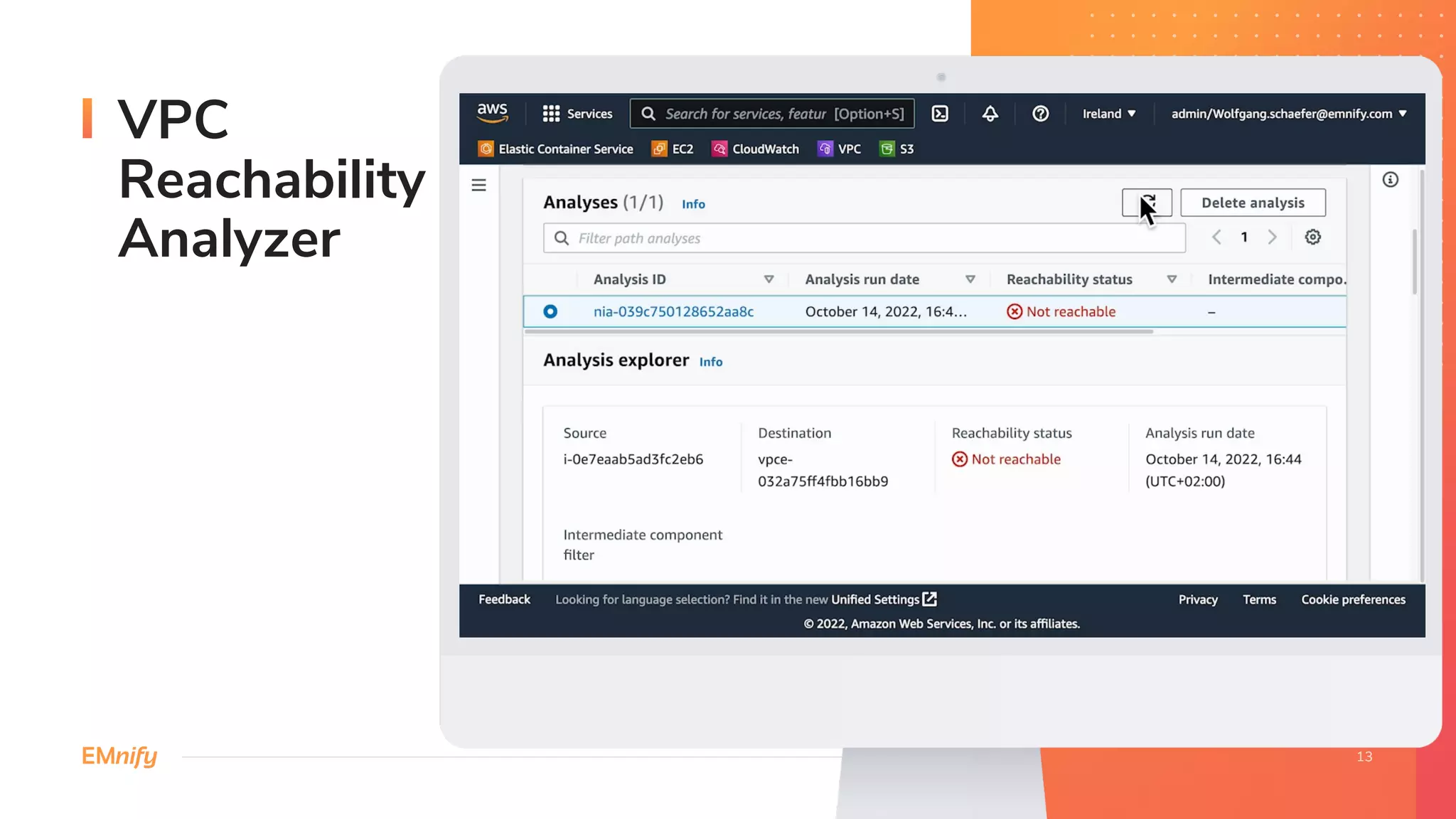

- 13.
- 14.

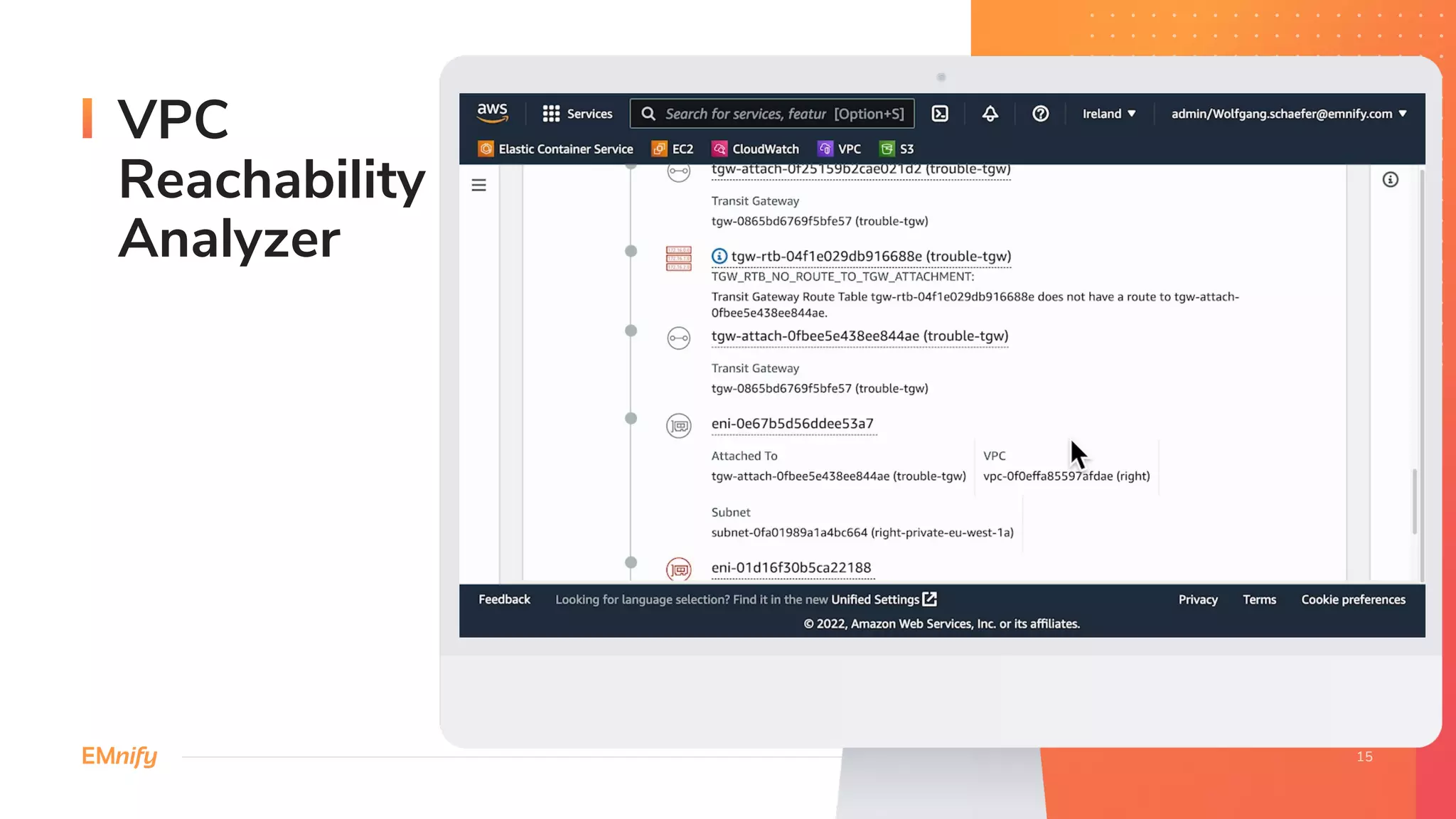

- 15.

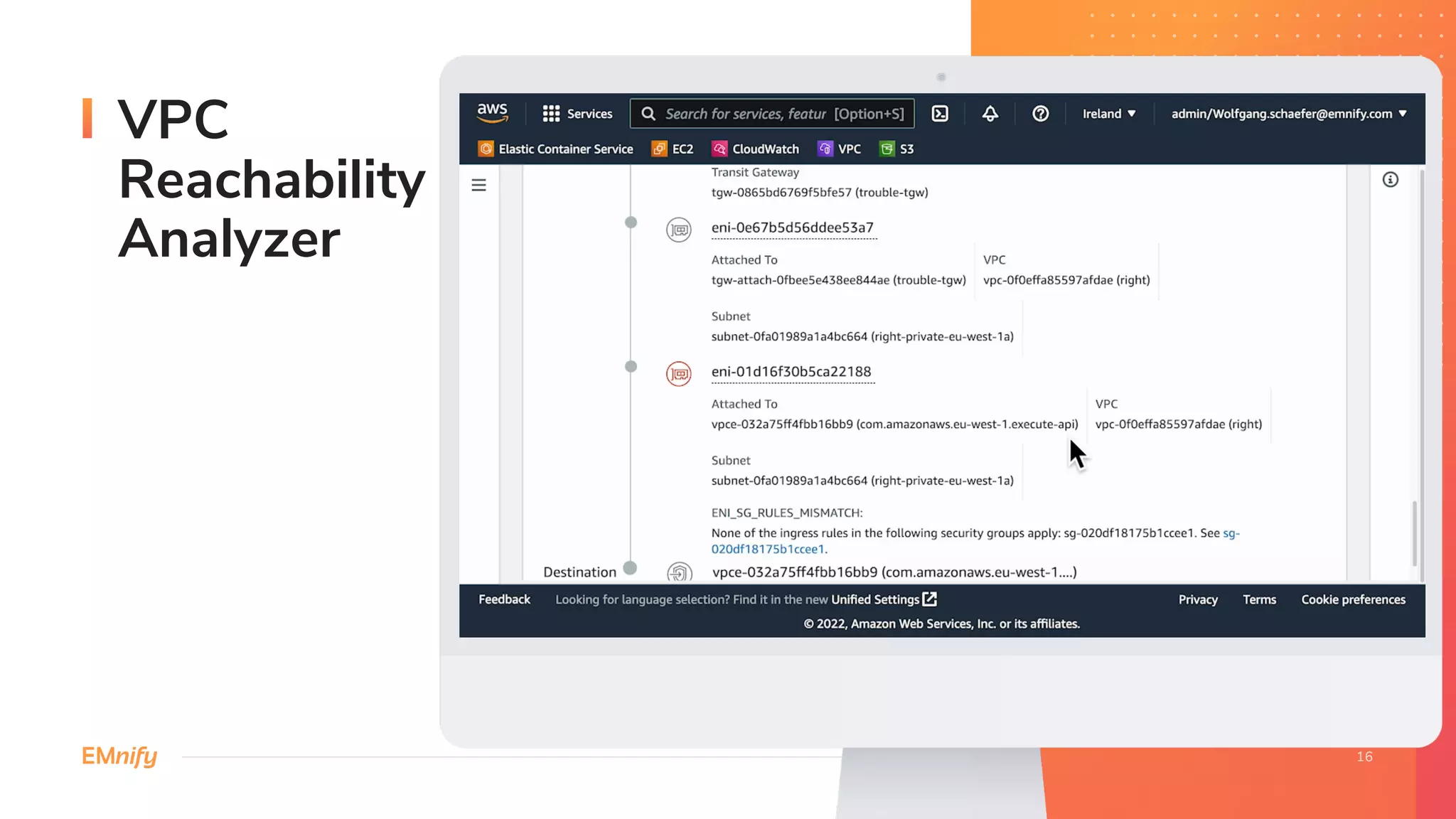

- 16.

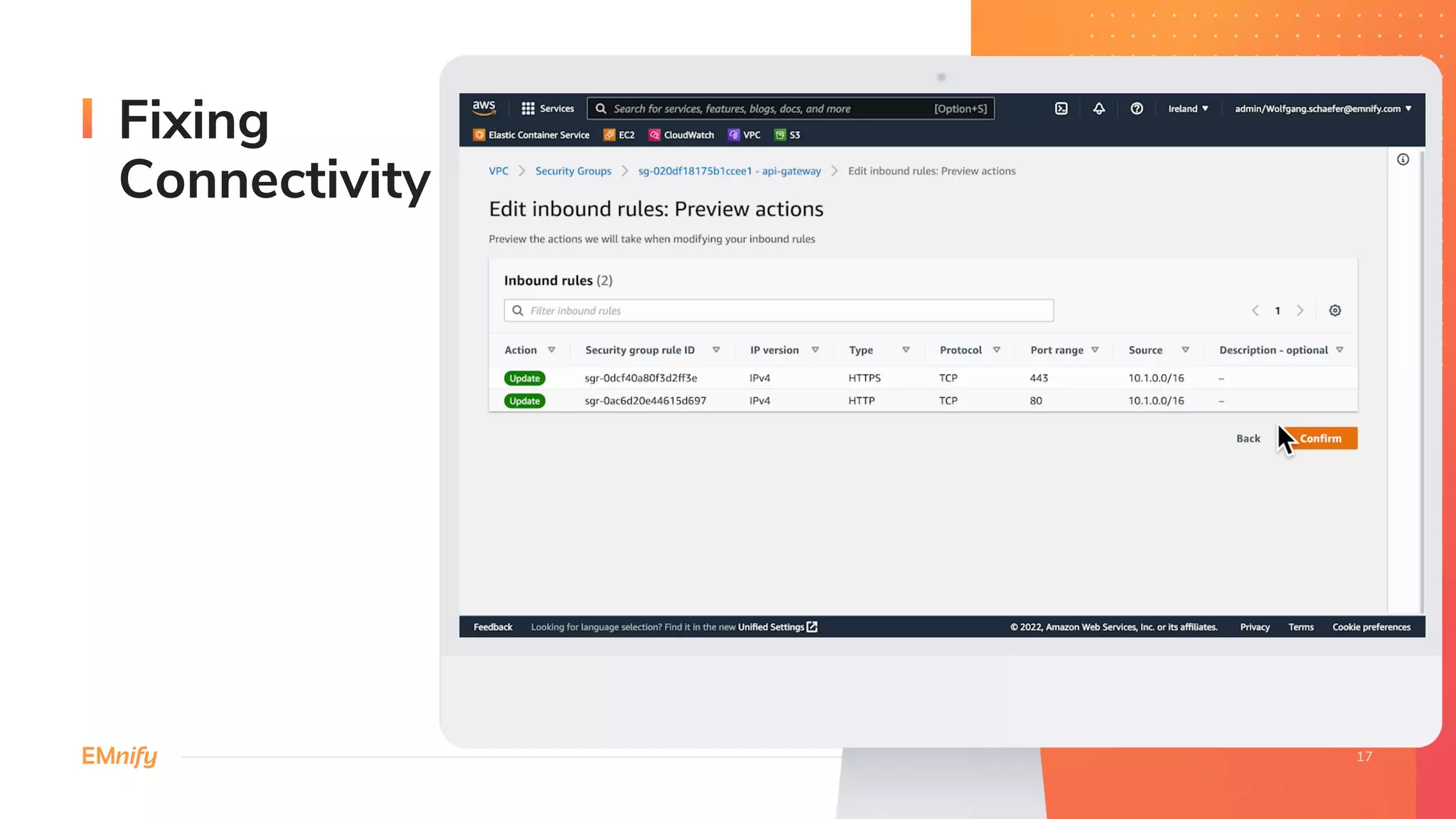

- 17.

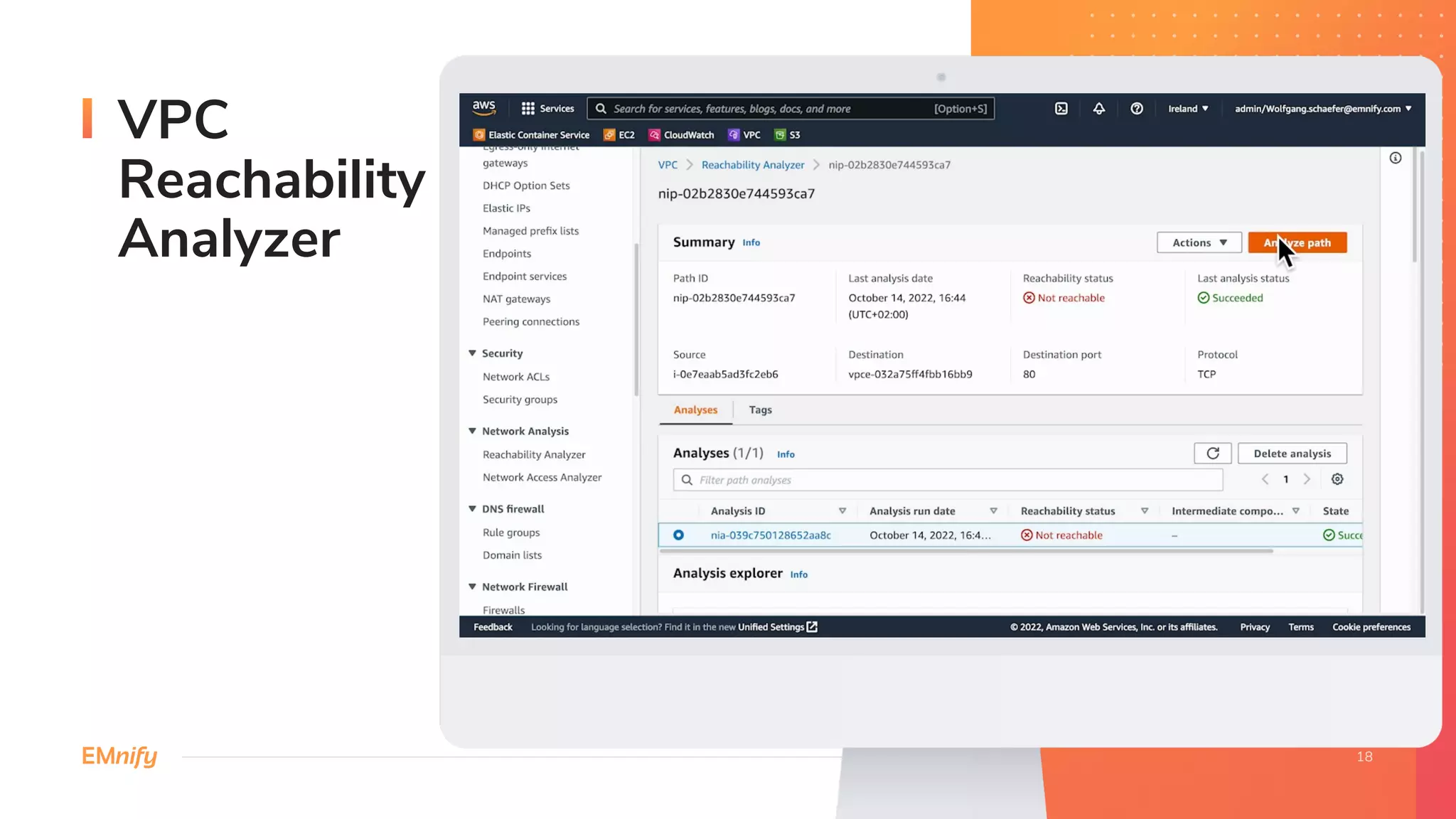

- 18.

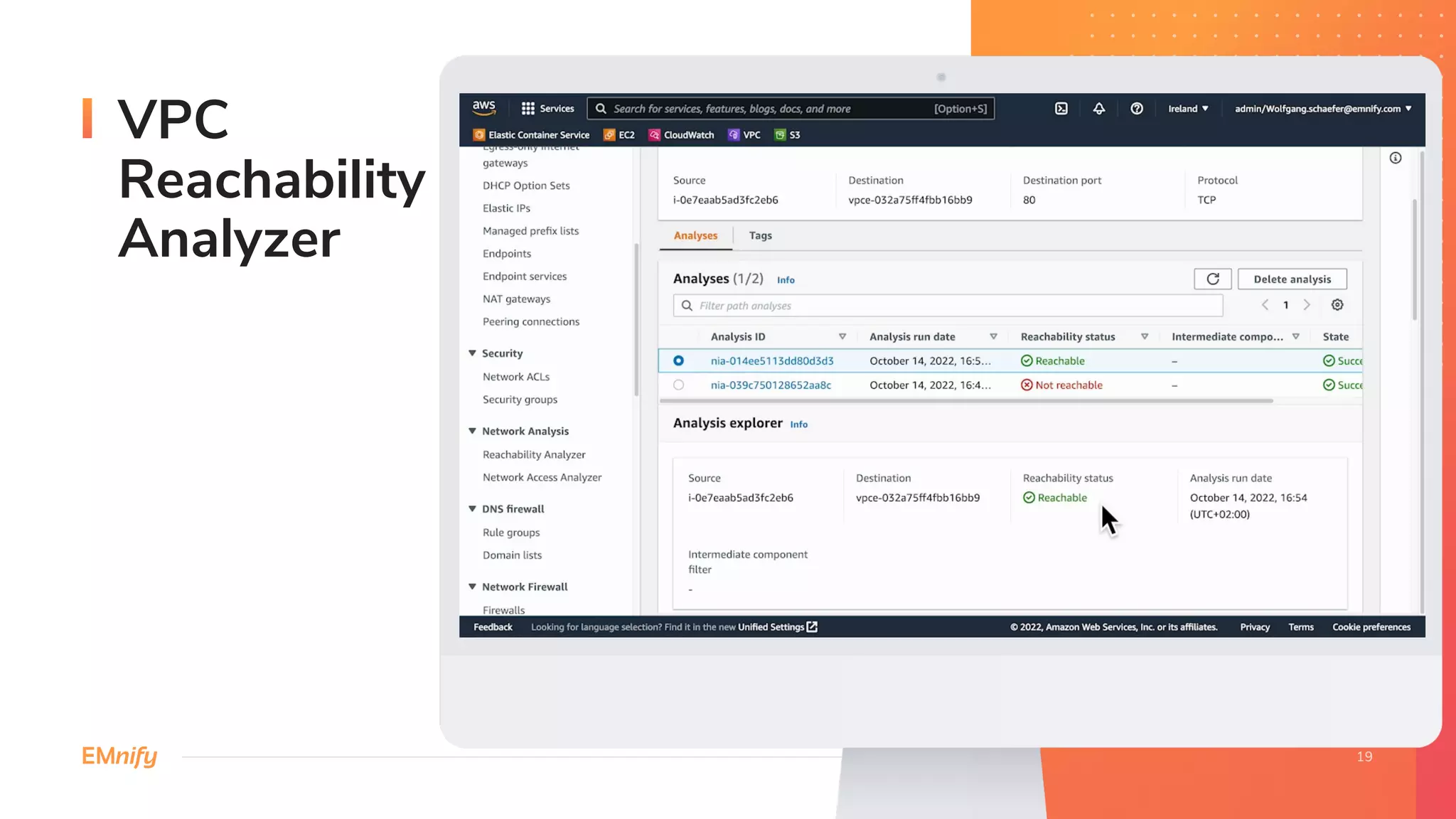

- 19.

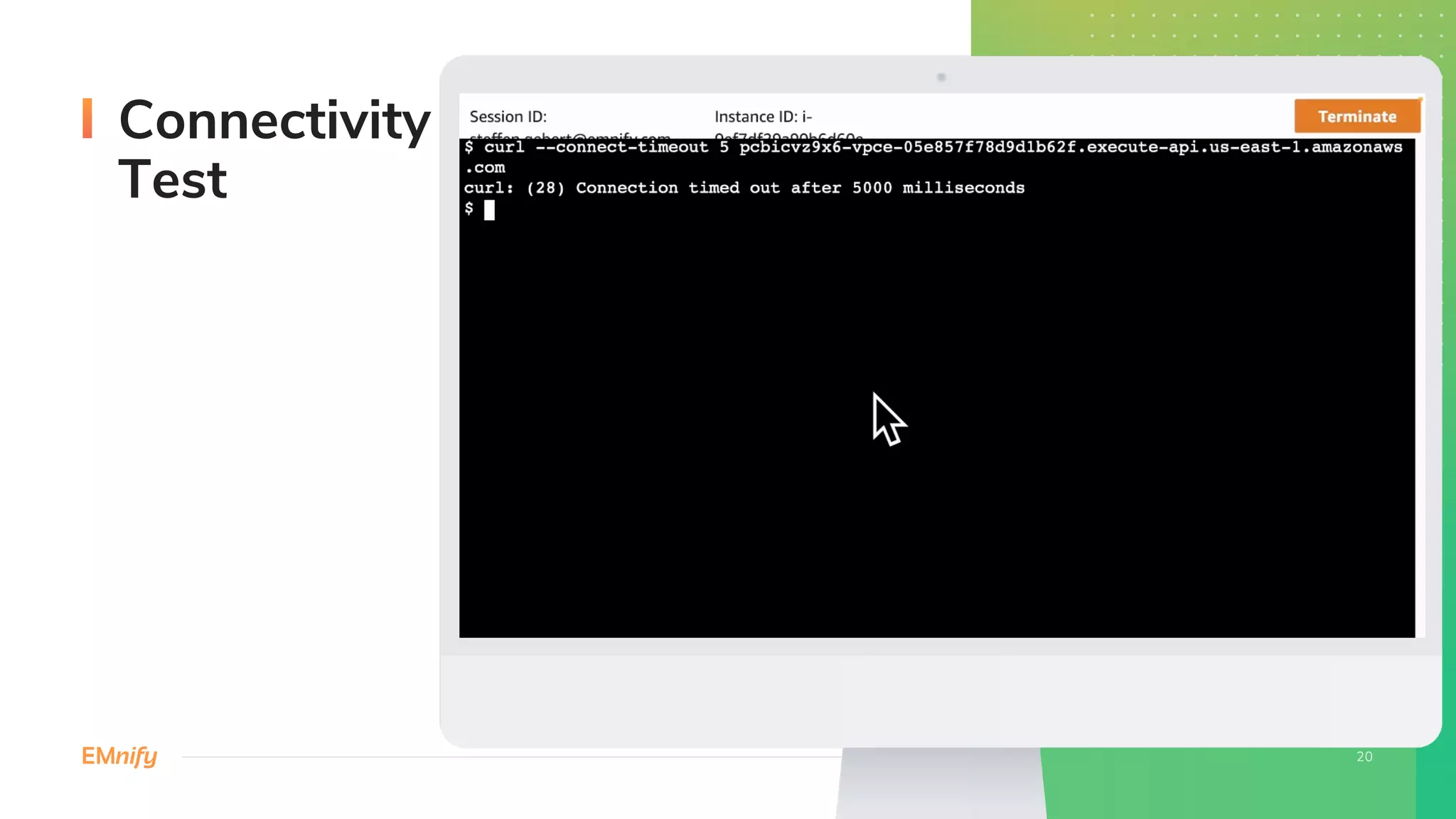

- 20.
- 21.

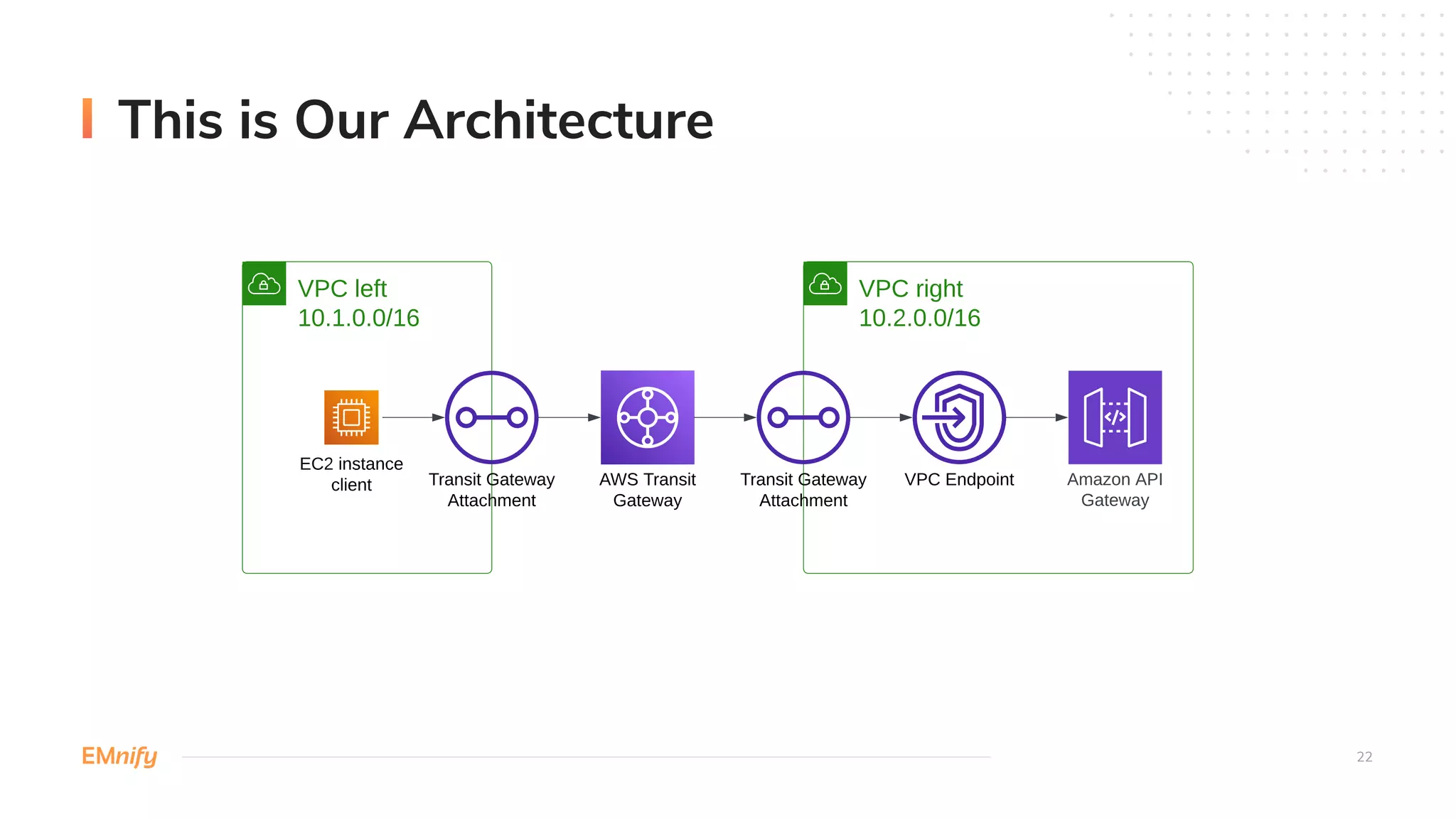

- 22. This is OurArchitecture 22 VPC left 10.1.0.0/16 VPC right 10.2.0.0/16 AWS Transit Gateway EC2 instance client Amazon API Gateway VPC Endpoint Transit Gateway Attachment Transit Gateway Attachment
- 23.

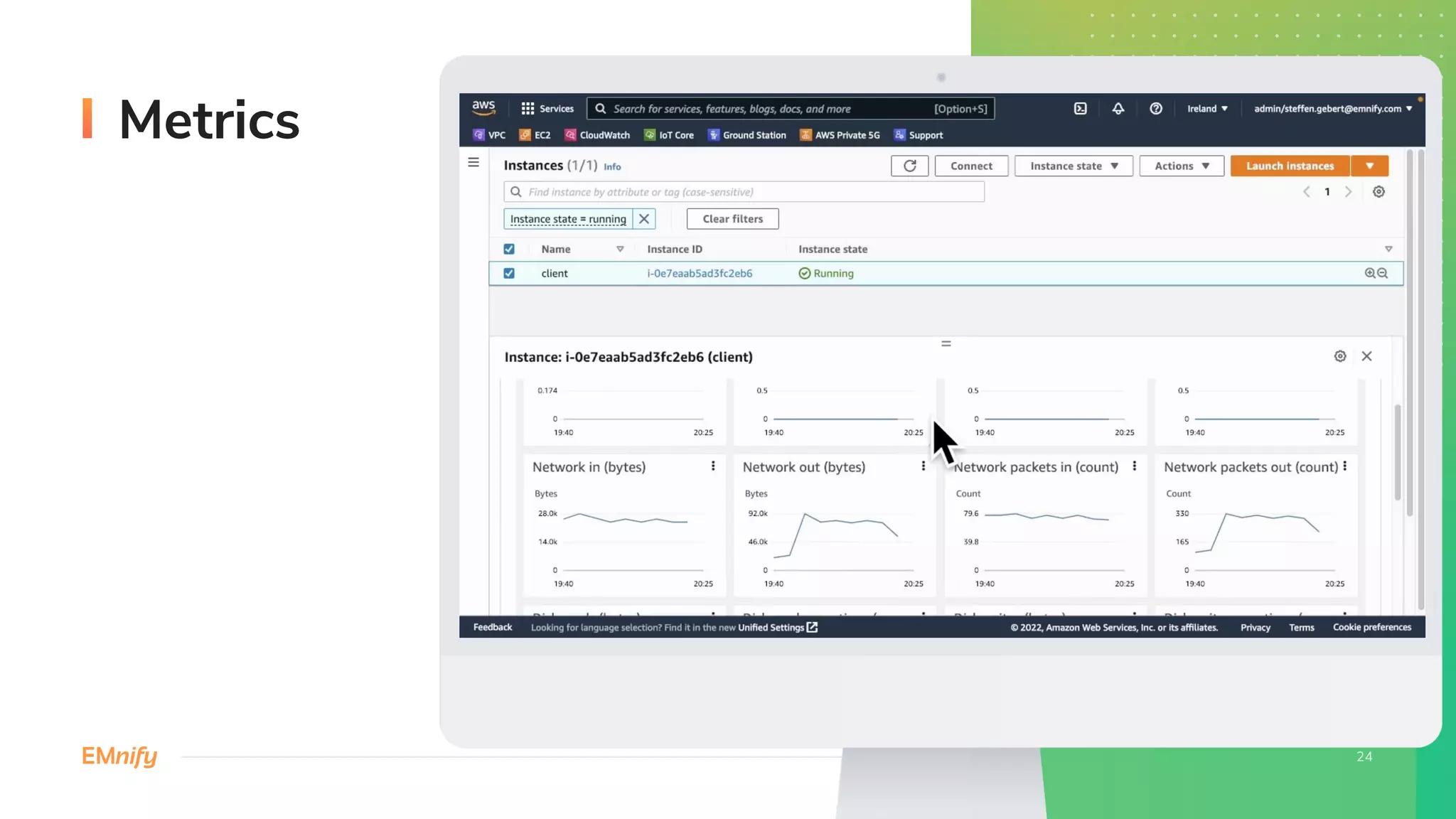

- 24.

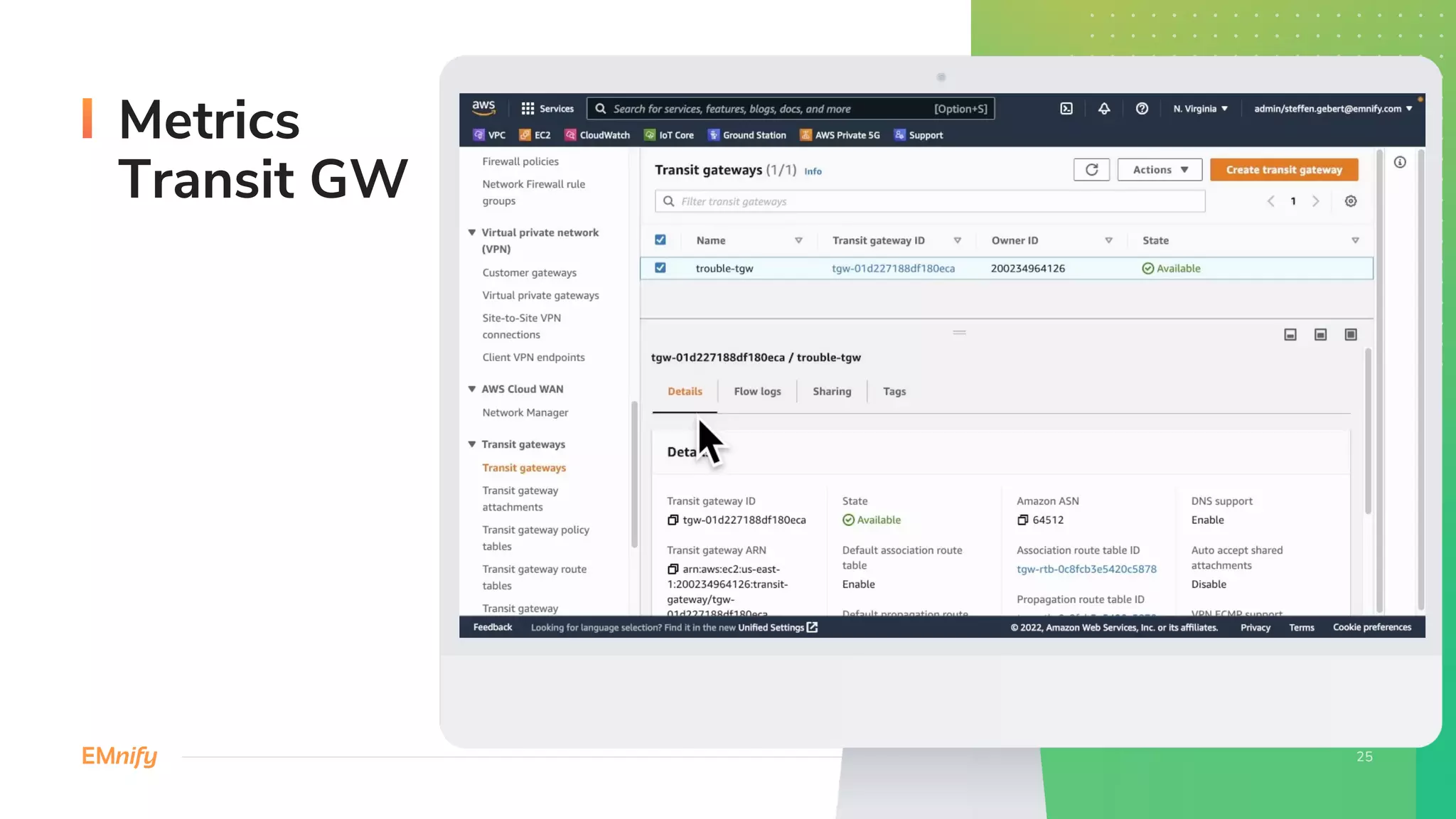

- 25.

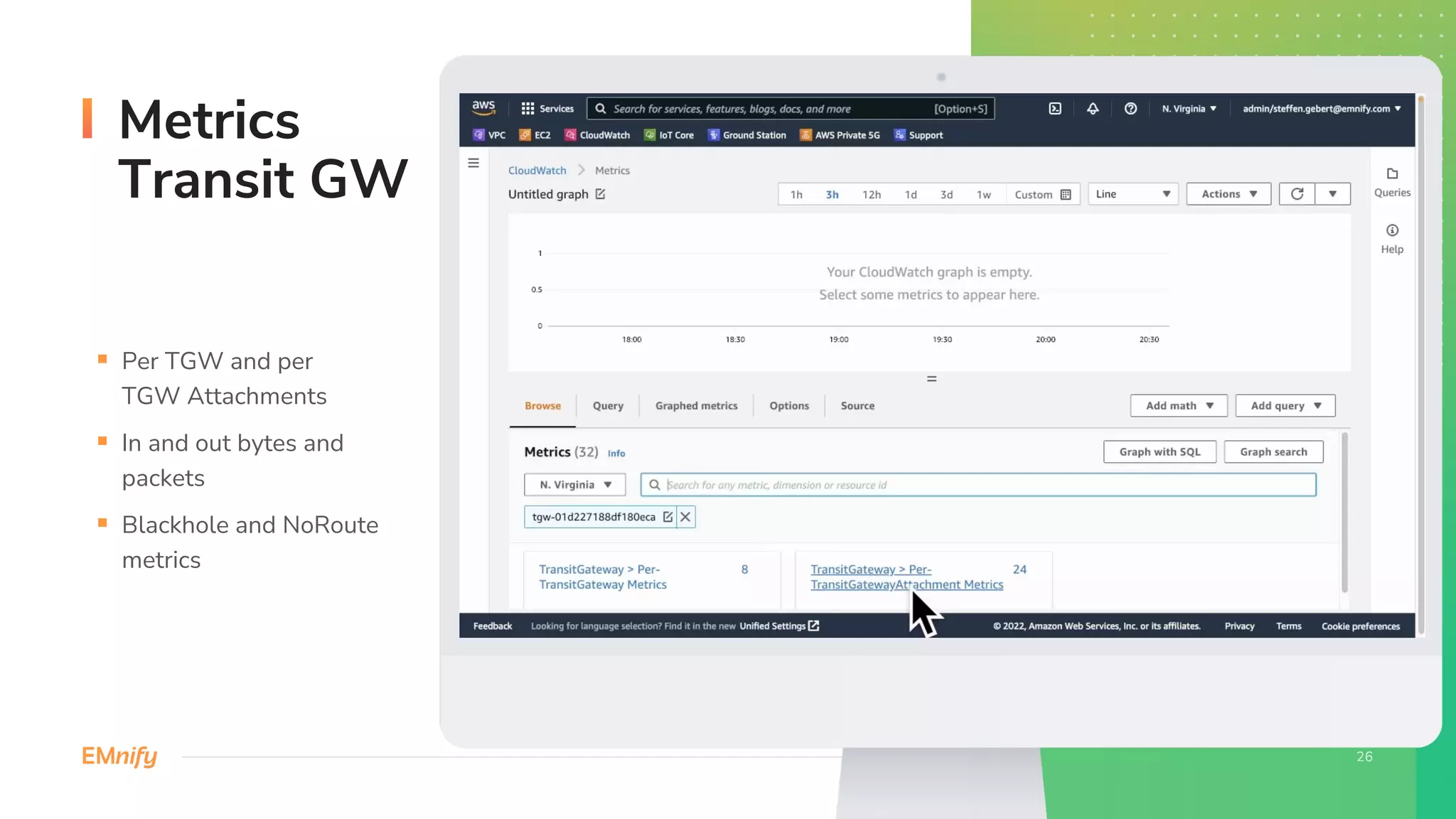

- 26. Metrics Transit GW § PerTGW and per TGW Attachments § In and out bytes and packets § Blackhole and NoRoute metrics

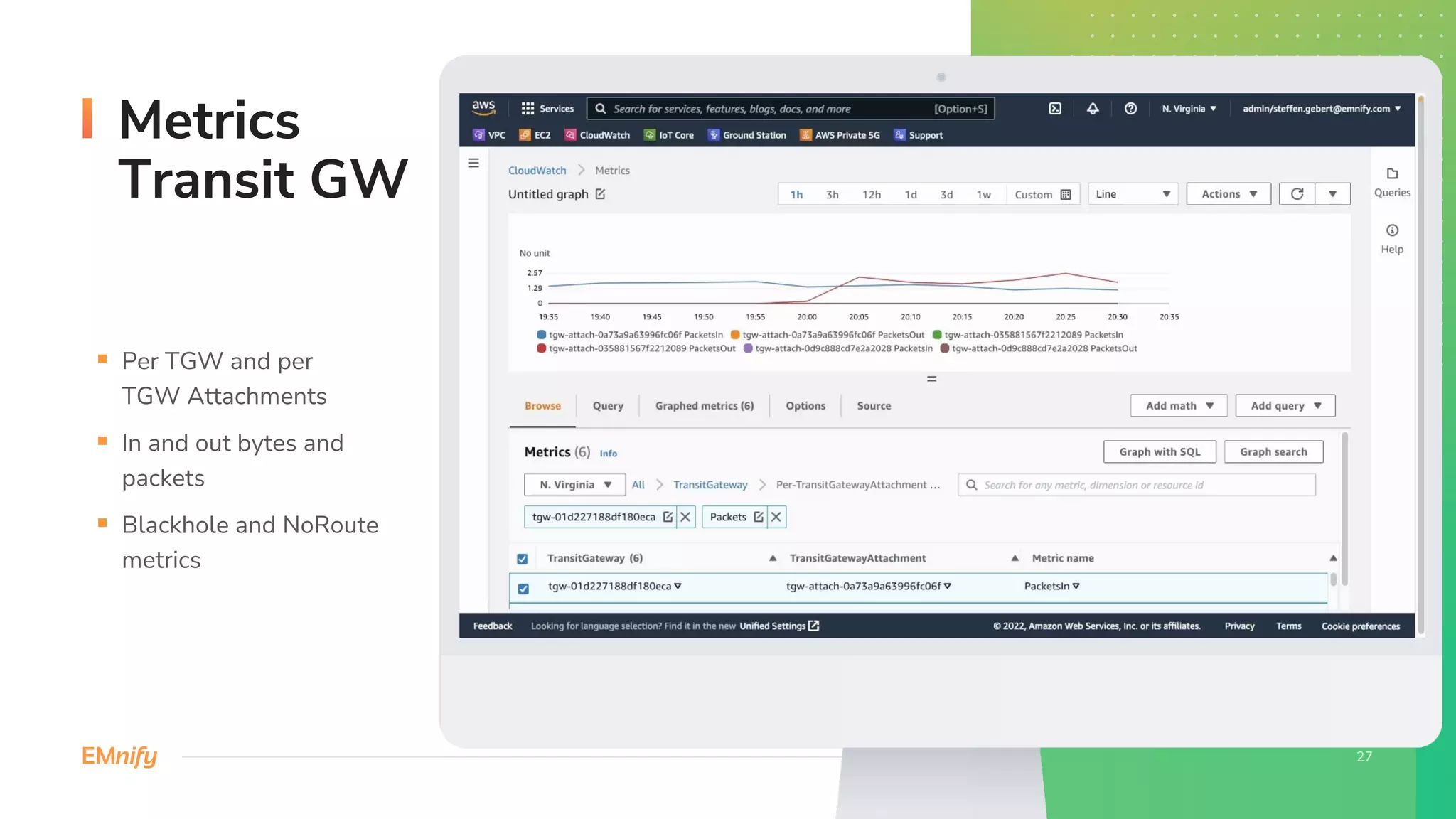

- 27. Metrics Transit GW § PerTGW and per TGW Attachments § In and out bytes and packets § Blackhole and NoRoute metrics

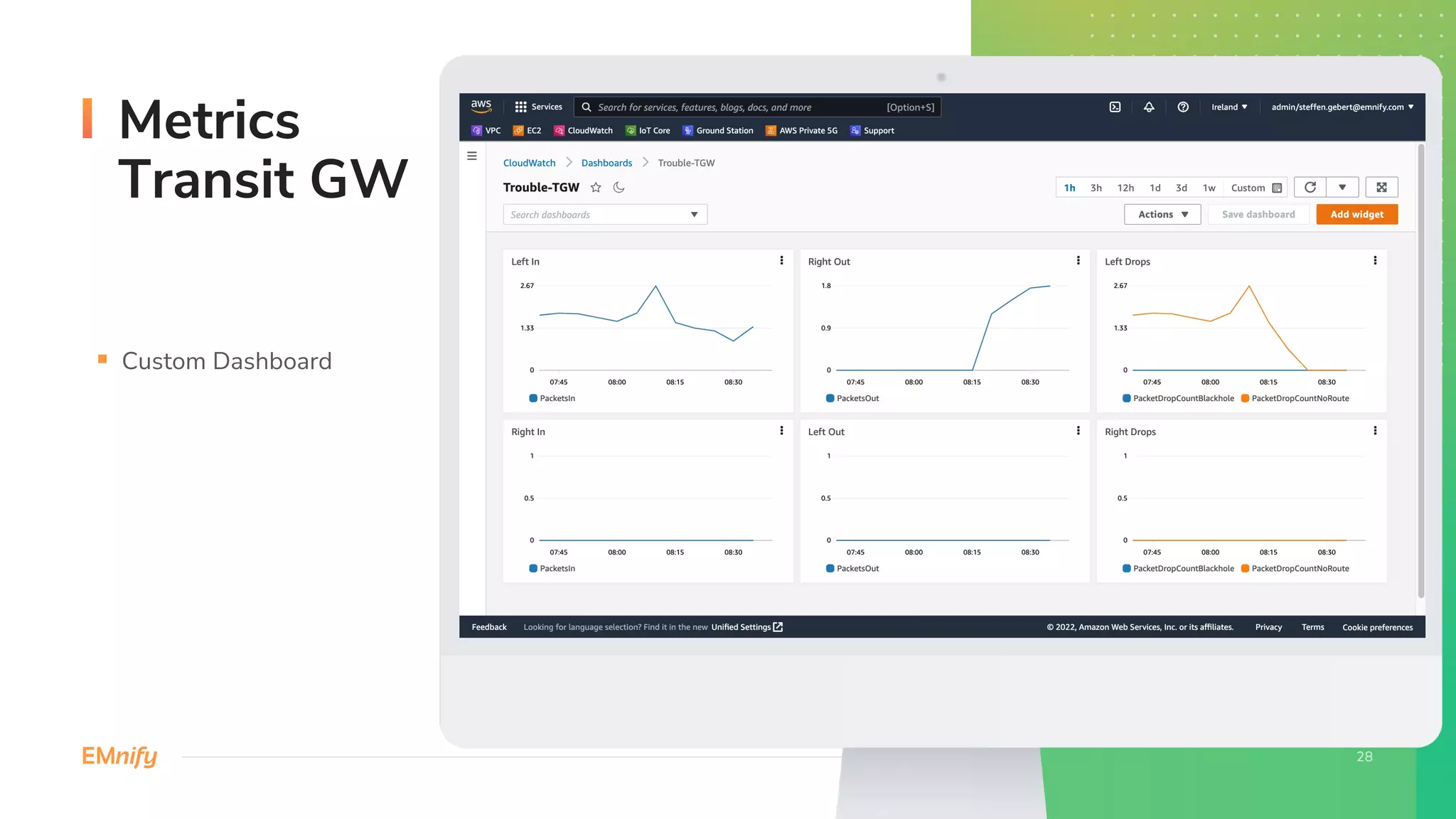

- 28.

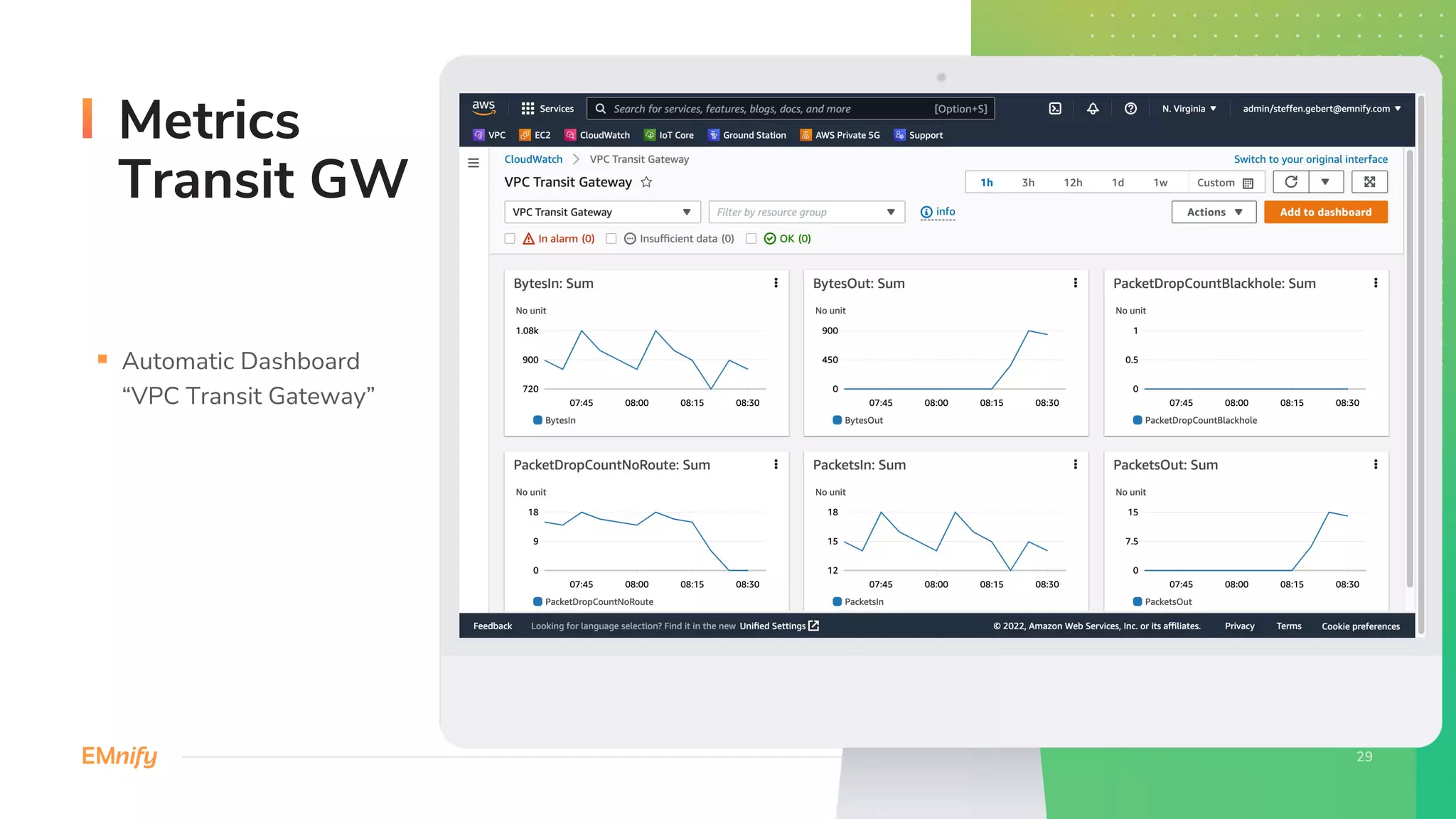

- 29. § Automatic Dashboard “VPCTransit Gateway” Metrics Transit GW
- 30.

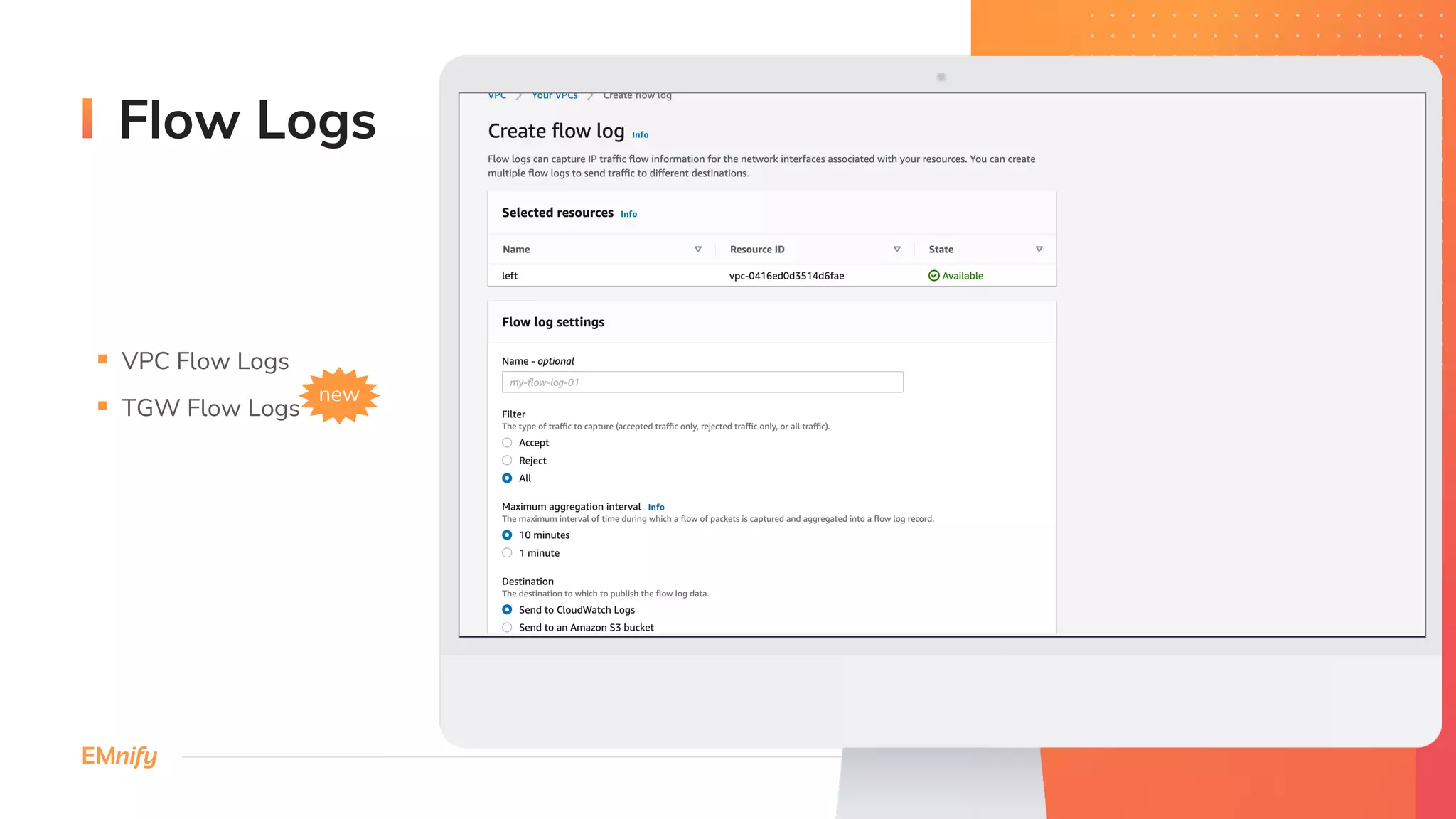

- 31. Flow Logs § VPCFlow Logs § TGW Flow Logs new
- 32.

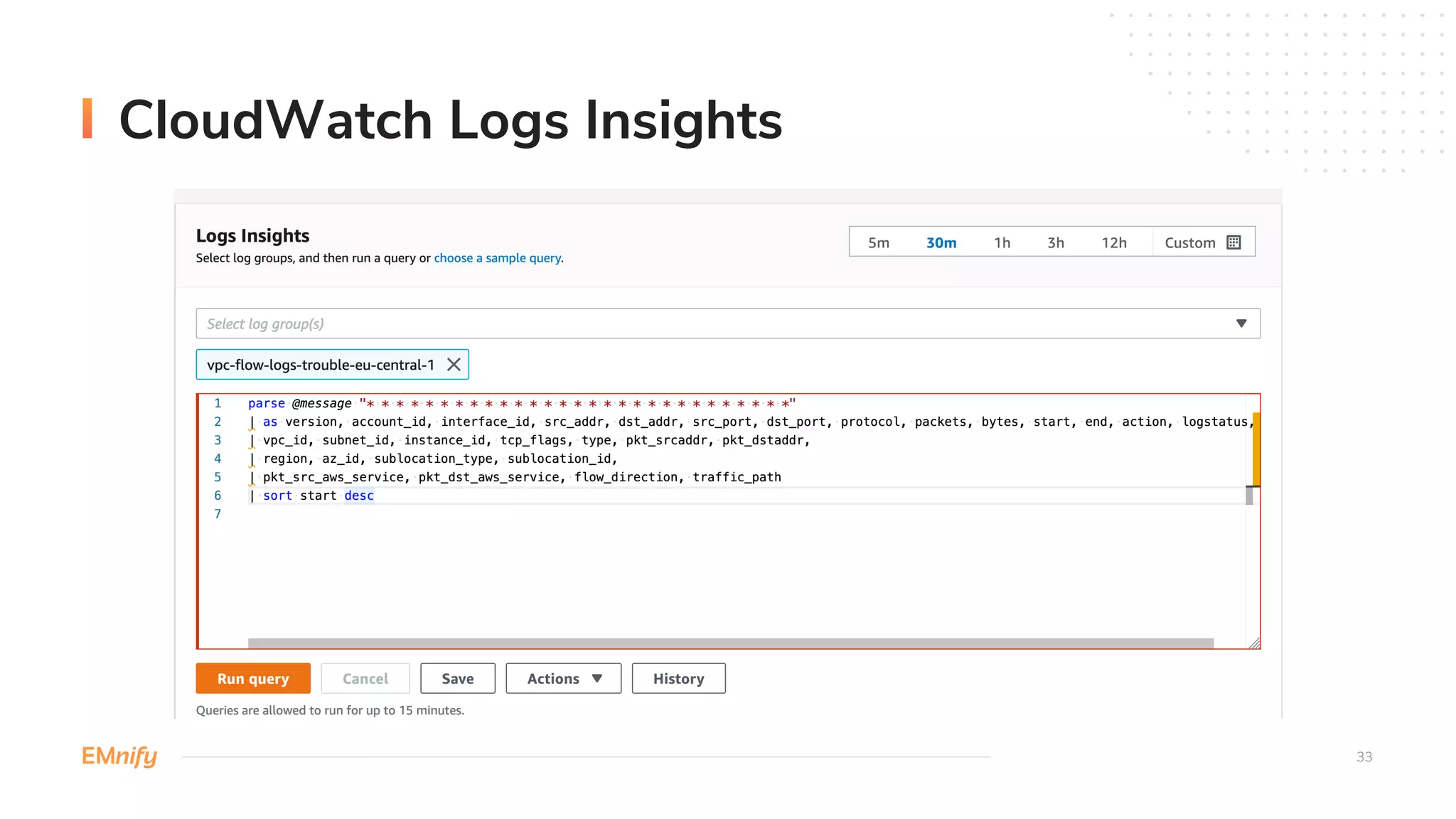

- 33.

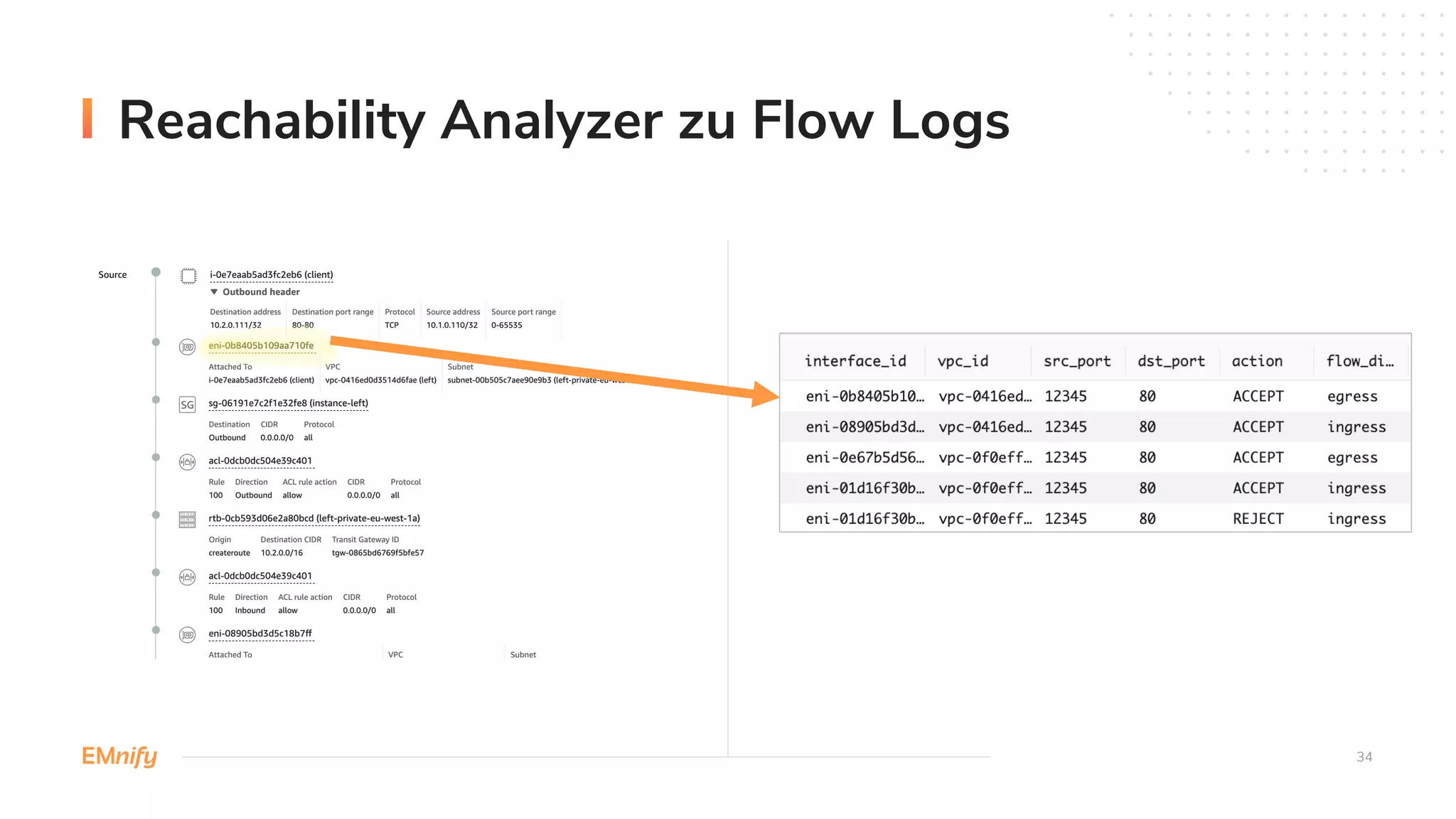

- 34. 34 Reachability Analyzer zuFlow Logs

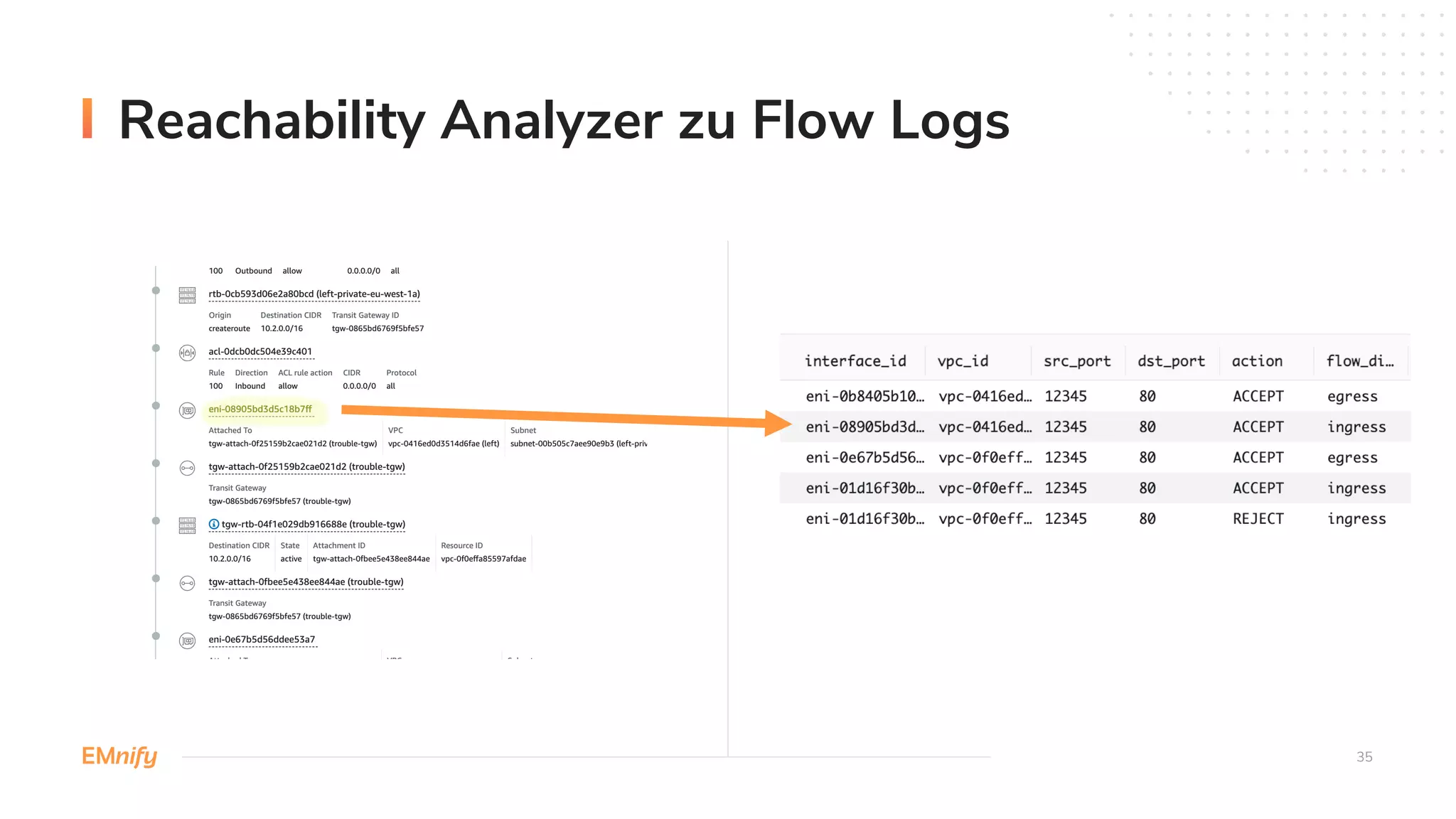

- 35. 35 Reachability Analyzer zuFlow Logs

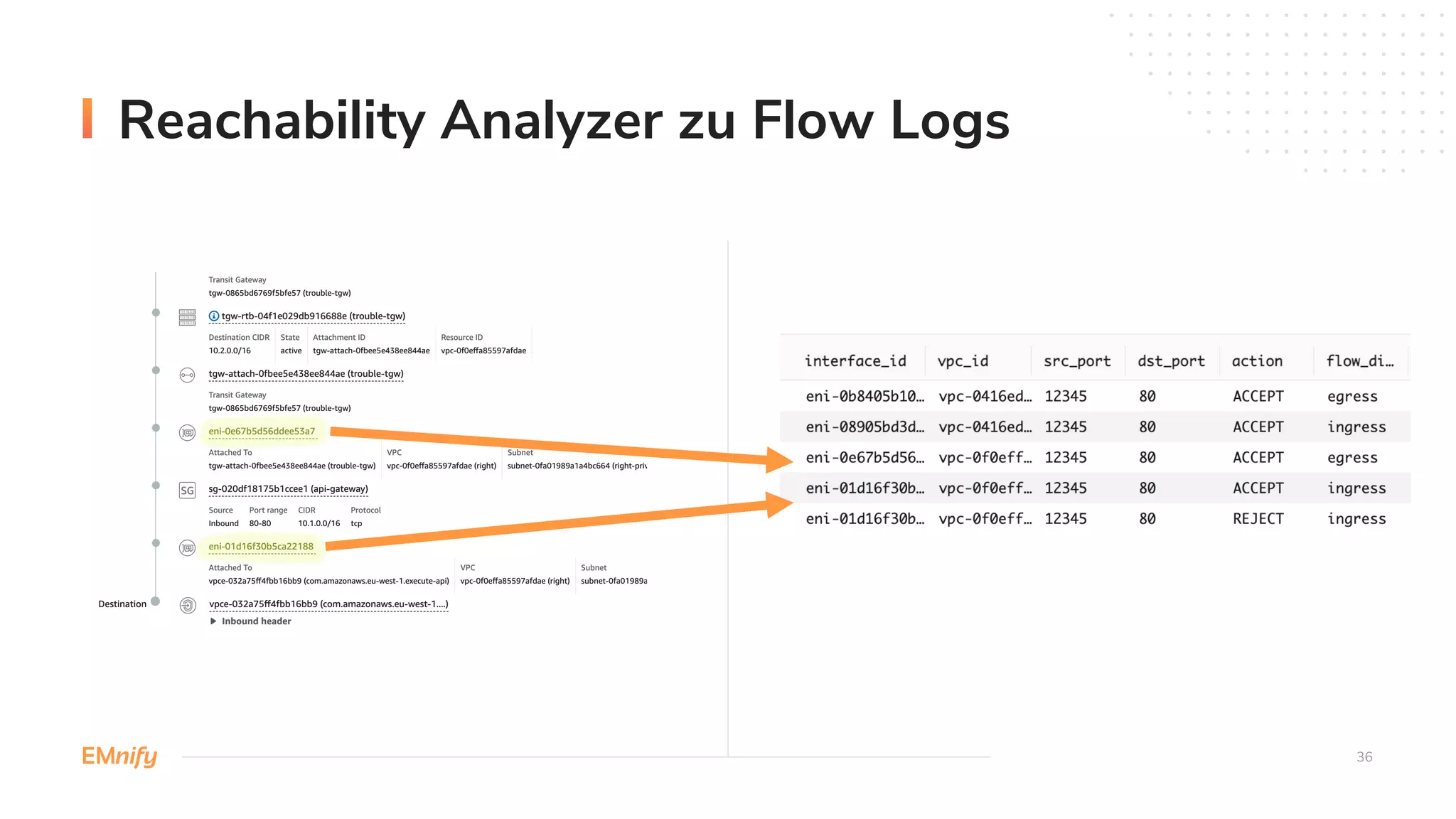

- 36. 36 Reachability Analyzer zuFlow Logs

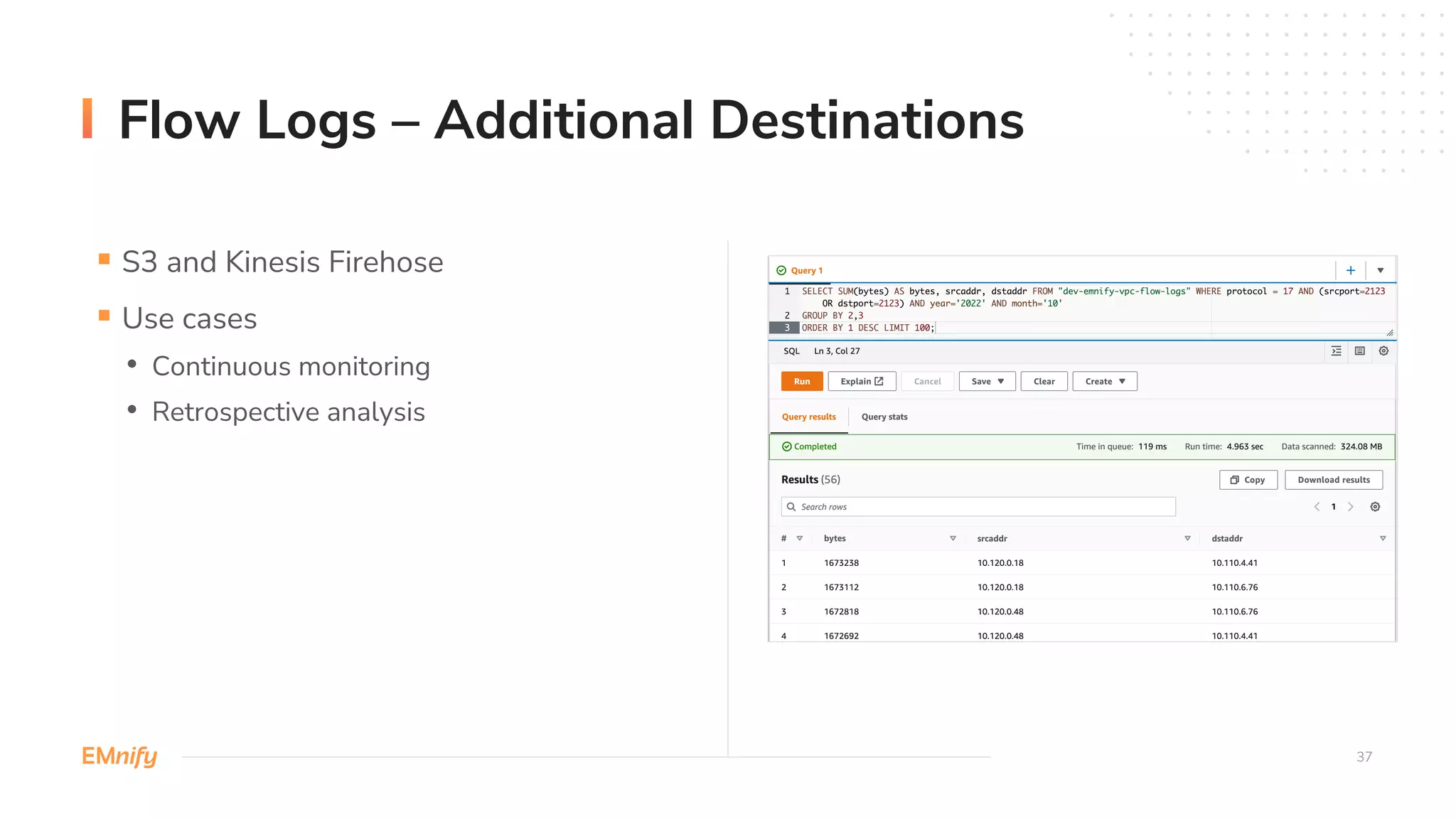

- 37. 37 Flow Logs –Additional Destinations § S3 and Kinesis Firehose § Use cases • Continuous monitoring • Retrospective analysis
- 38.

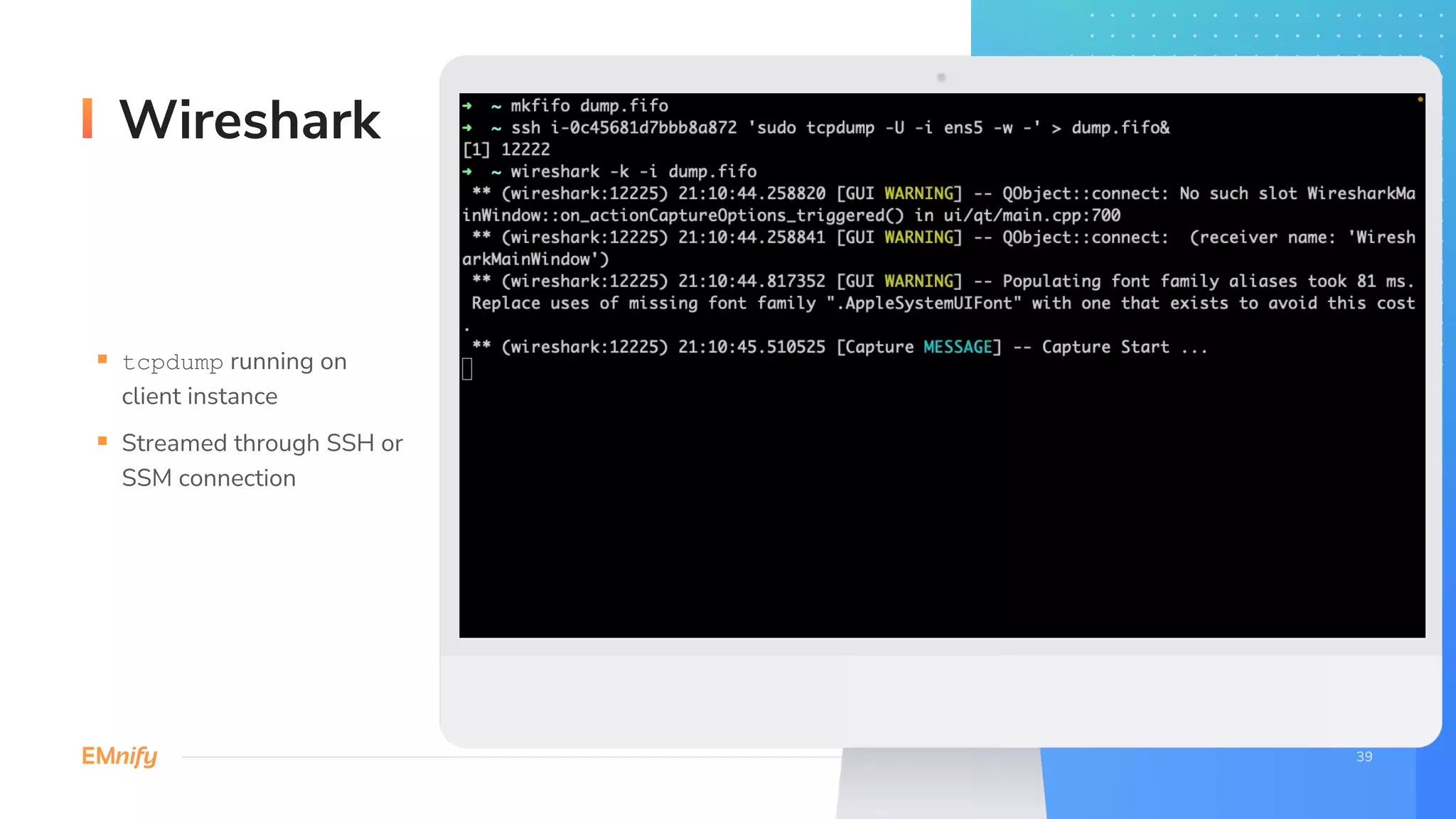

- 39. Wireshark § tcpdump runningon client instance § Streamed through SSH or SSM connection

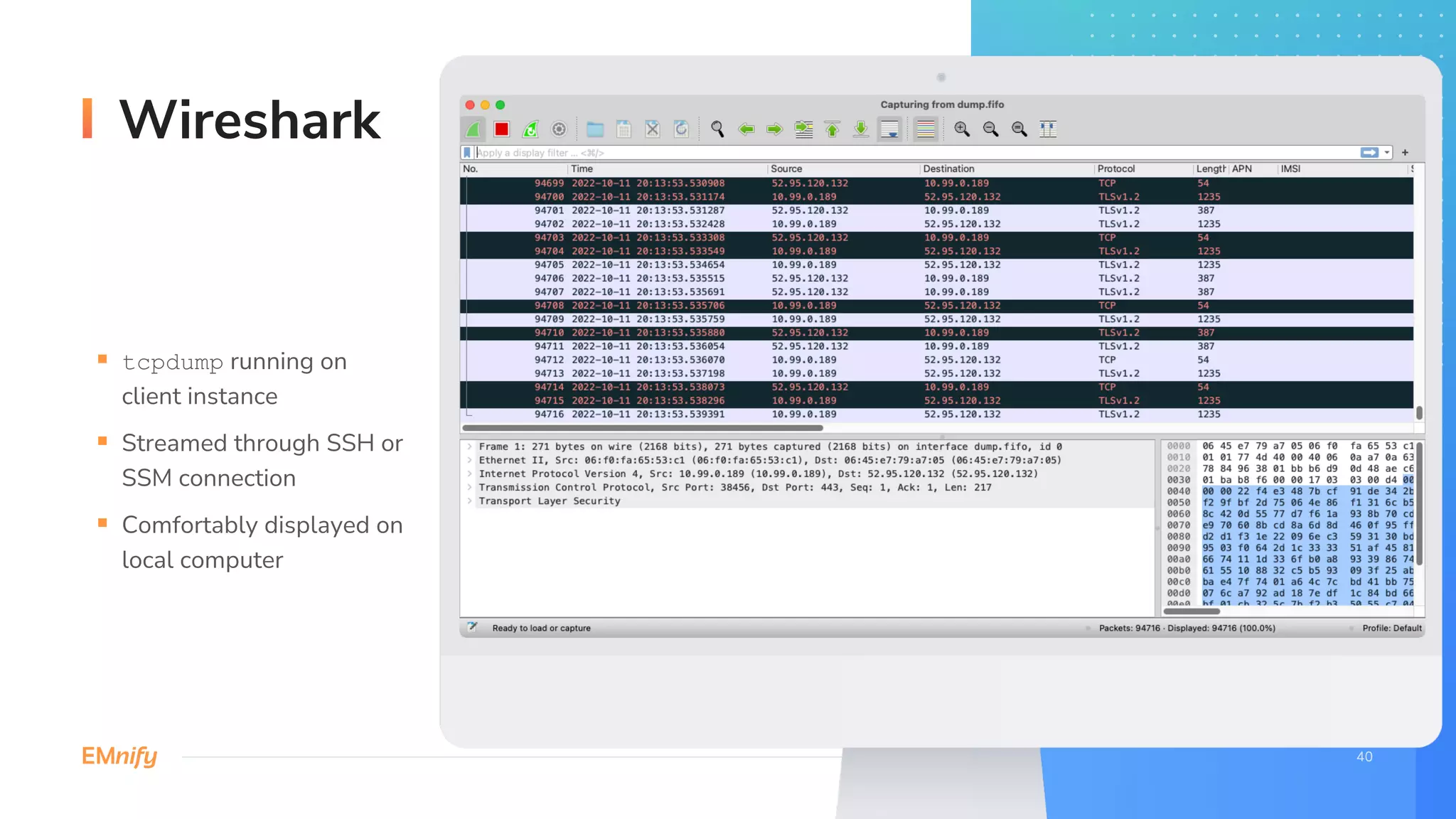

- 40. Wireshark § tcpdump runningon client instance § Streamed through SSH or SSM connection § Comfortably displayed on local computer

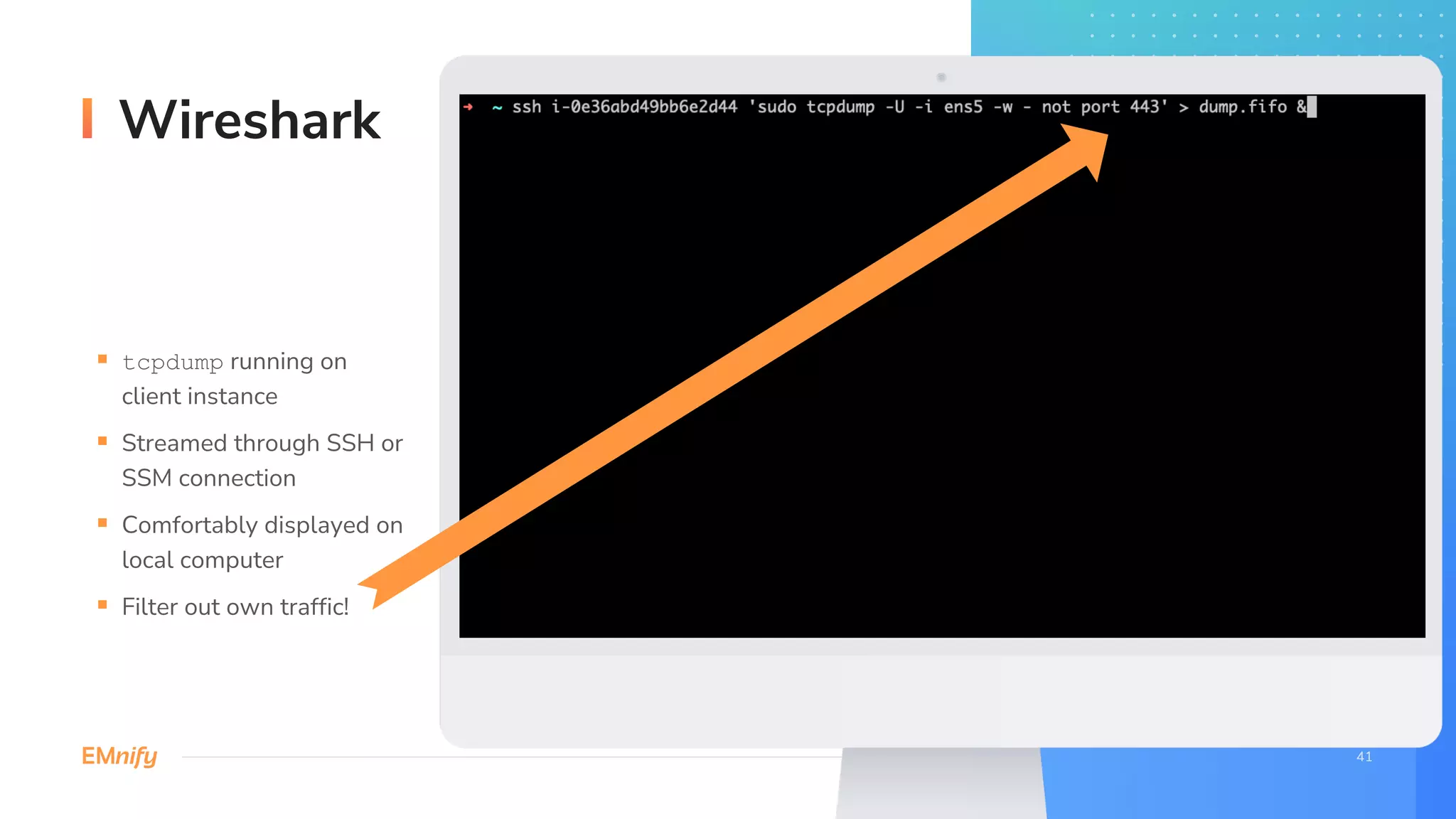

- 41. Wireshark § tcpdump runningon client instance § Streamed through SSH or SSM connection § Comfortably displayed on local computer § Filter out own traffic!

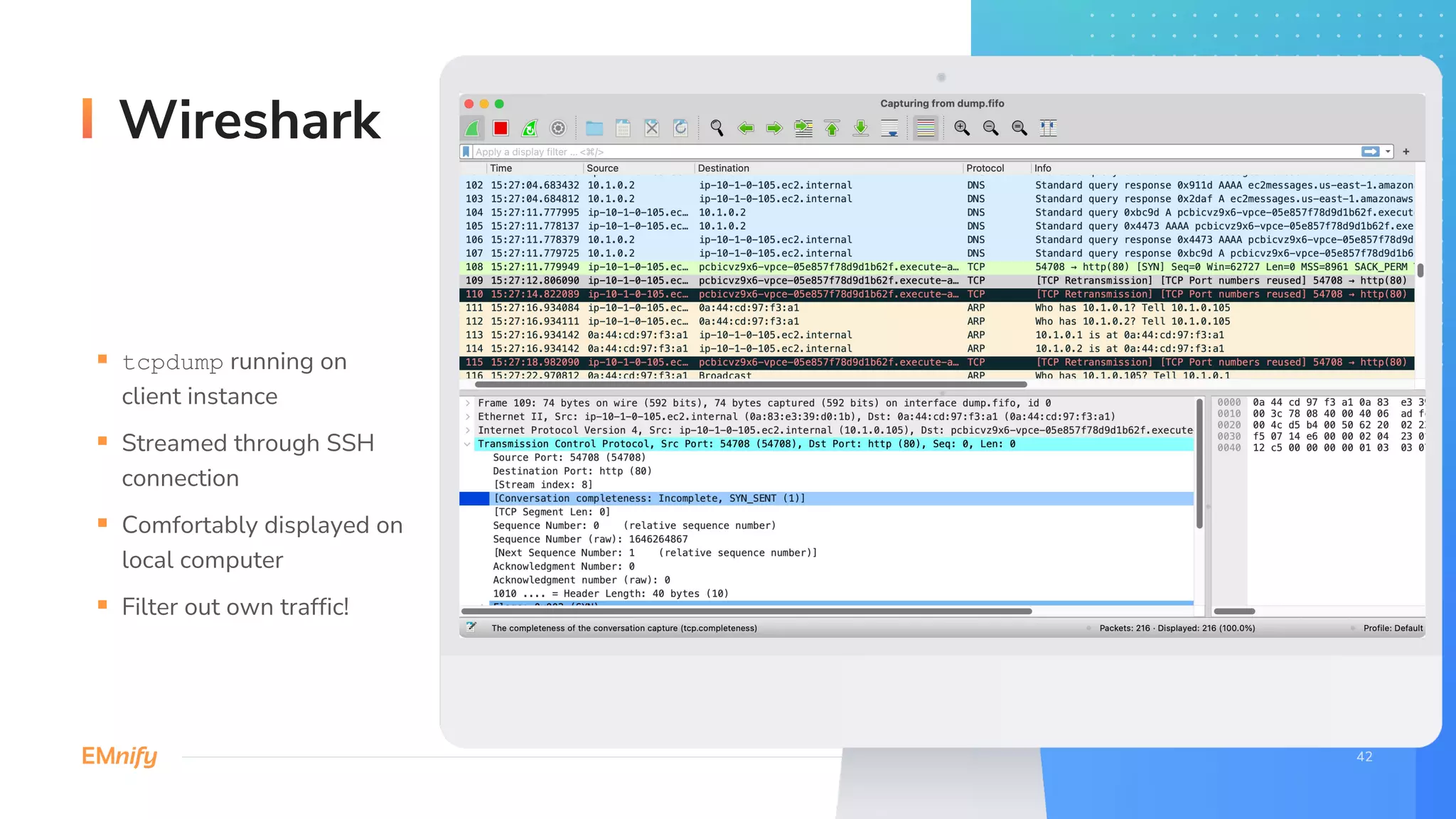

- 42. Wireshark § tcpdump runningon client instance § Streamed through SSH connection § Comfortably displayed on local computer § Filter out own traffic!

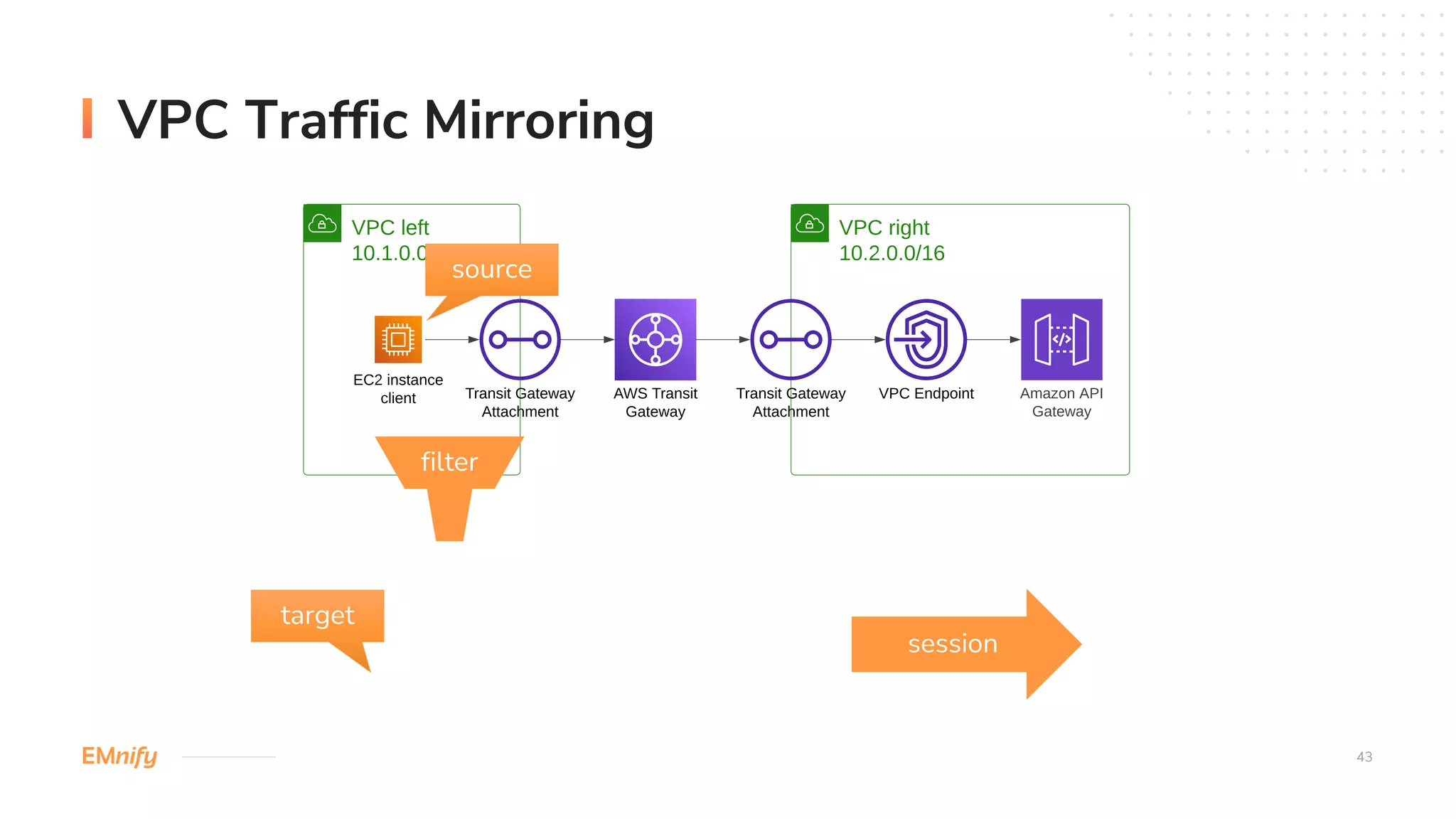

- 43. VPC left 10.1.0.0/16 VPC right 10.2.0.0/16 AWSTransit Gateway EC2 instance client Amazon API Gateway VPC Endpoint Transit Gateway Attachment Transit Gateway Attachment Transit Gateway Attachment VPC capture 10.99.0.0/16 EC2 instance capture-receiver VPC left 10.1.0.0/16 VPC right 10.2.0.0/16 AWS Transit Gateway EC2 instance client Amazon API Gateway VPC Endpoint Transit Gateway Attachment Transit Gateway Attachment VPC Traffic Mirroring 43 source target filter session
- 44. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances
- 45. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances

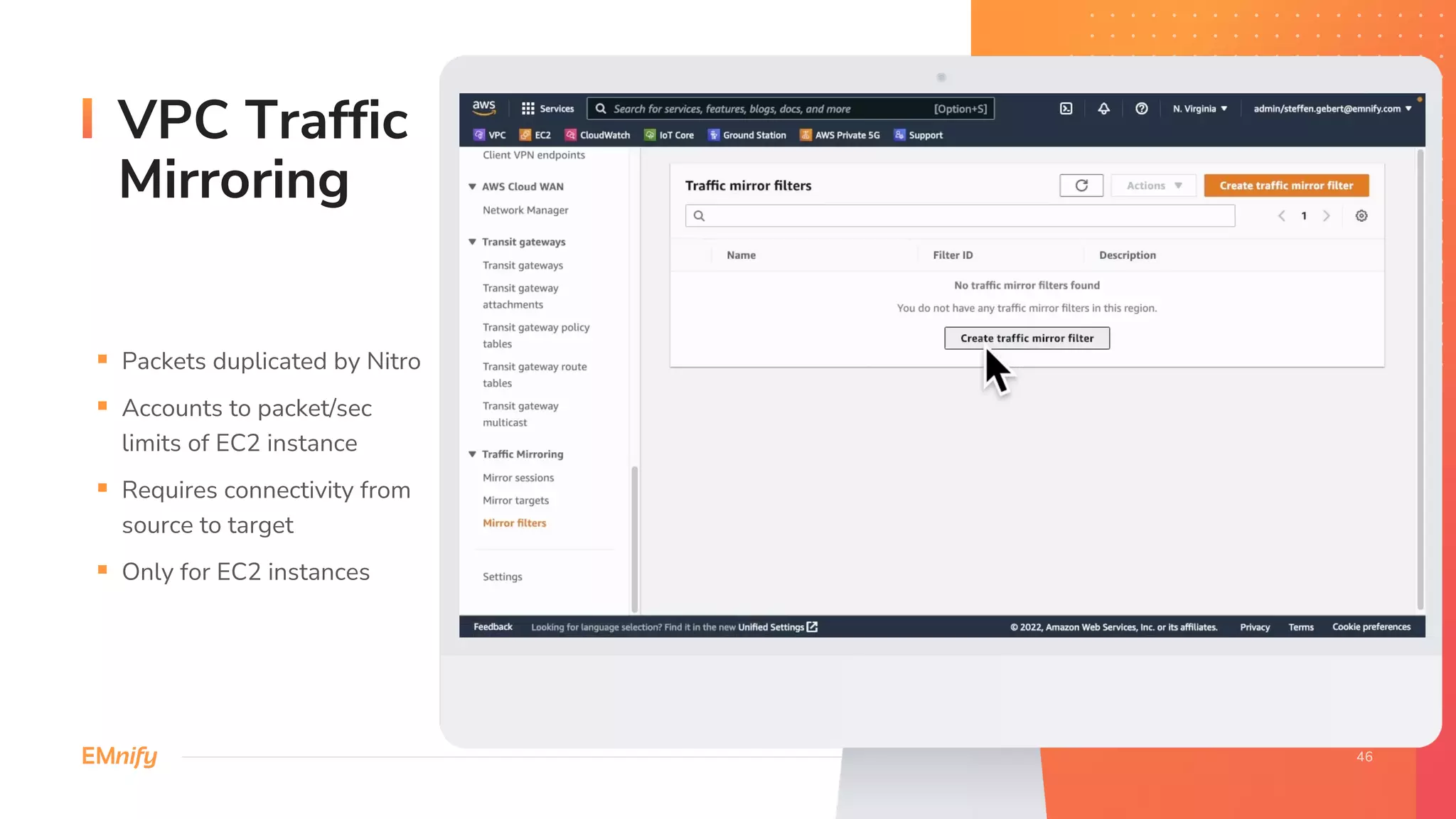

- 46. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances
- 47. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances
- 48. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances

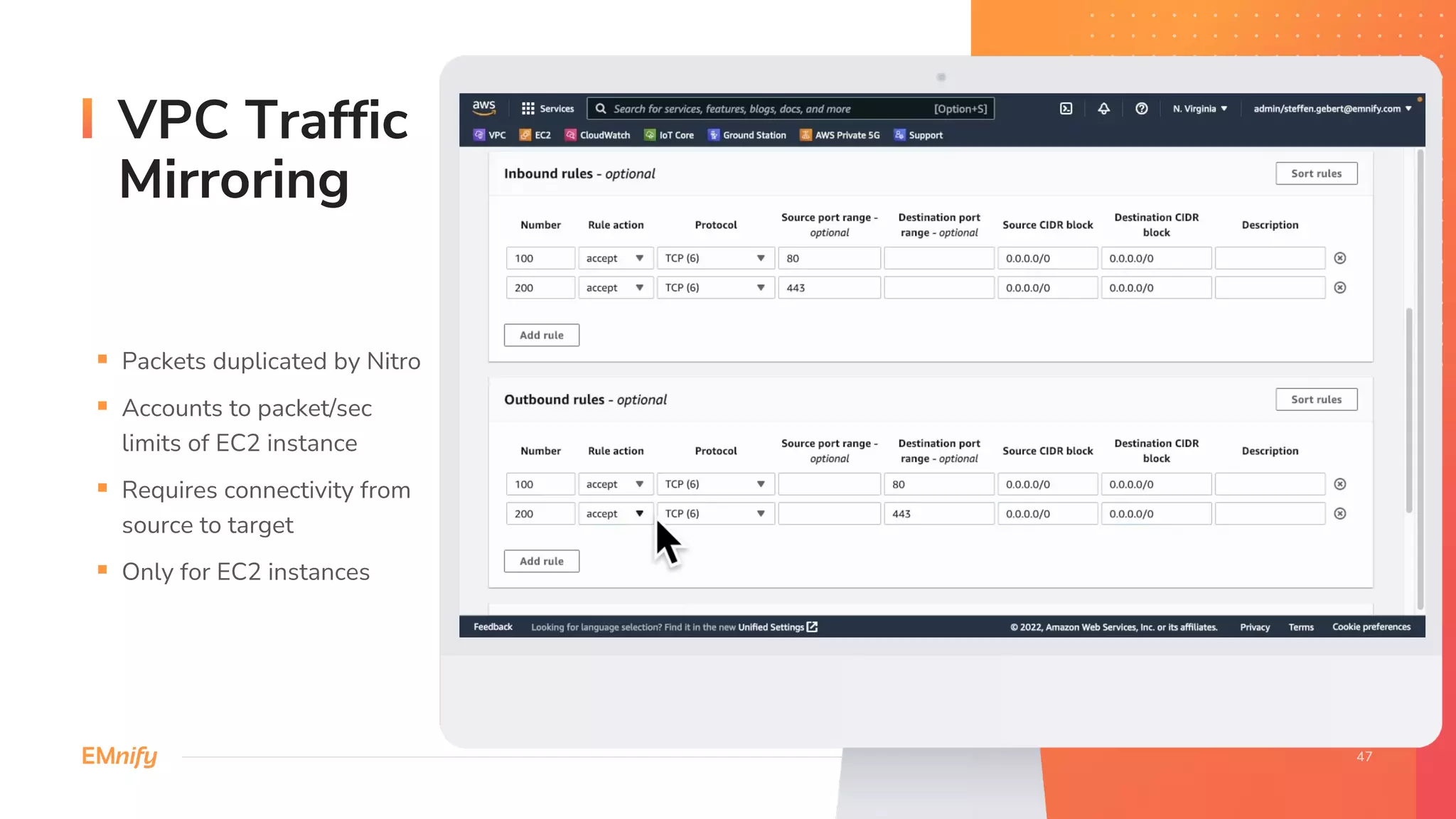

- 49. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances

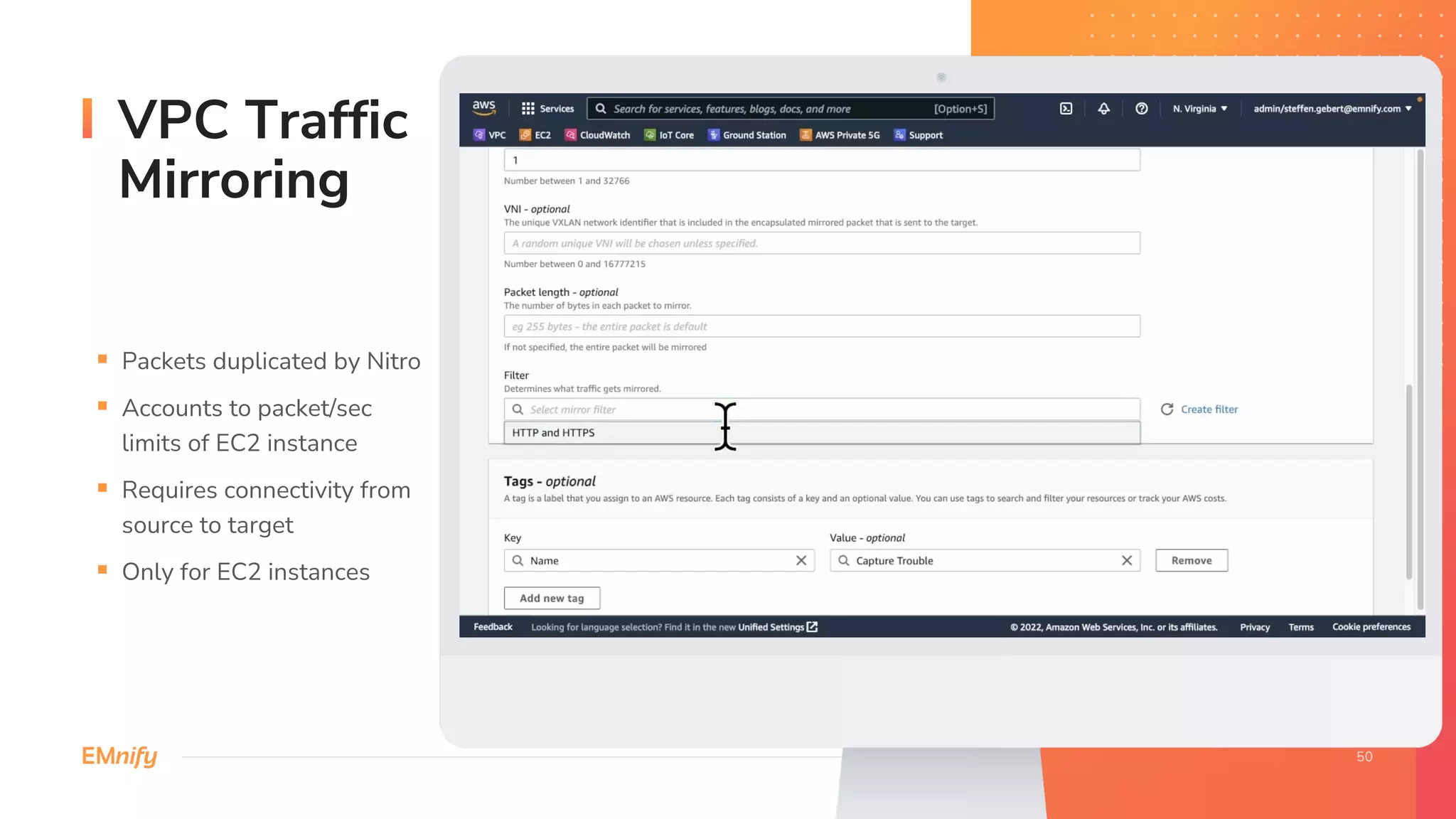

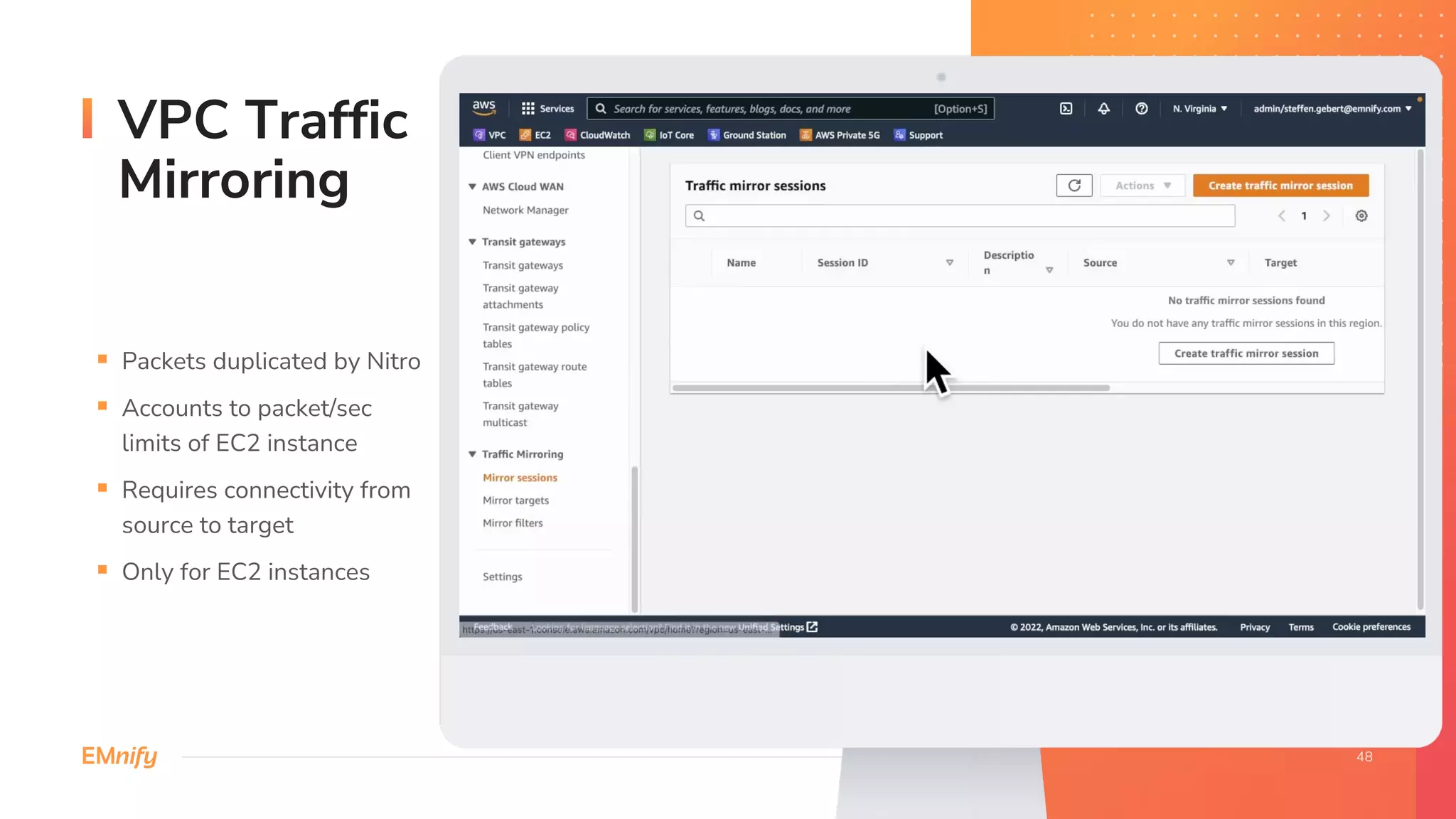

- 50. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances

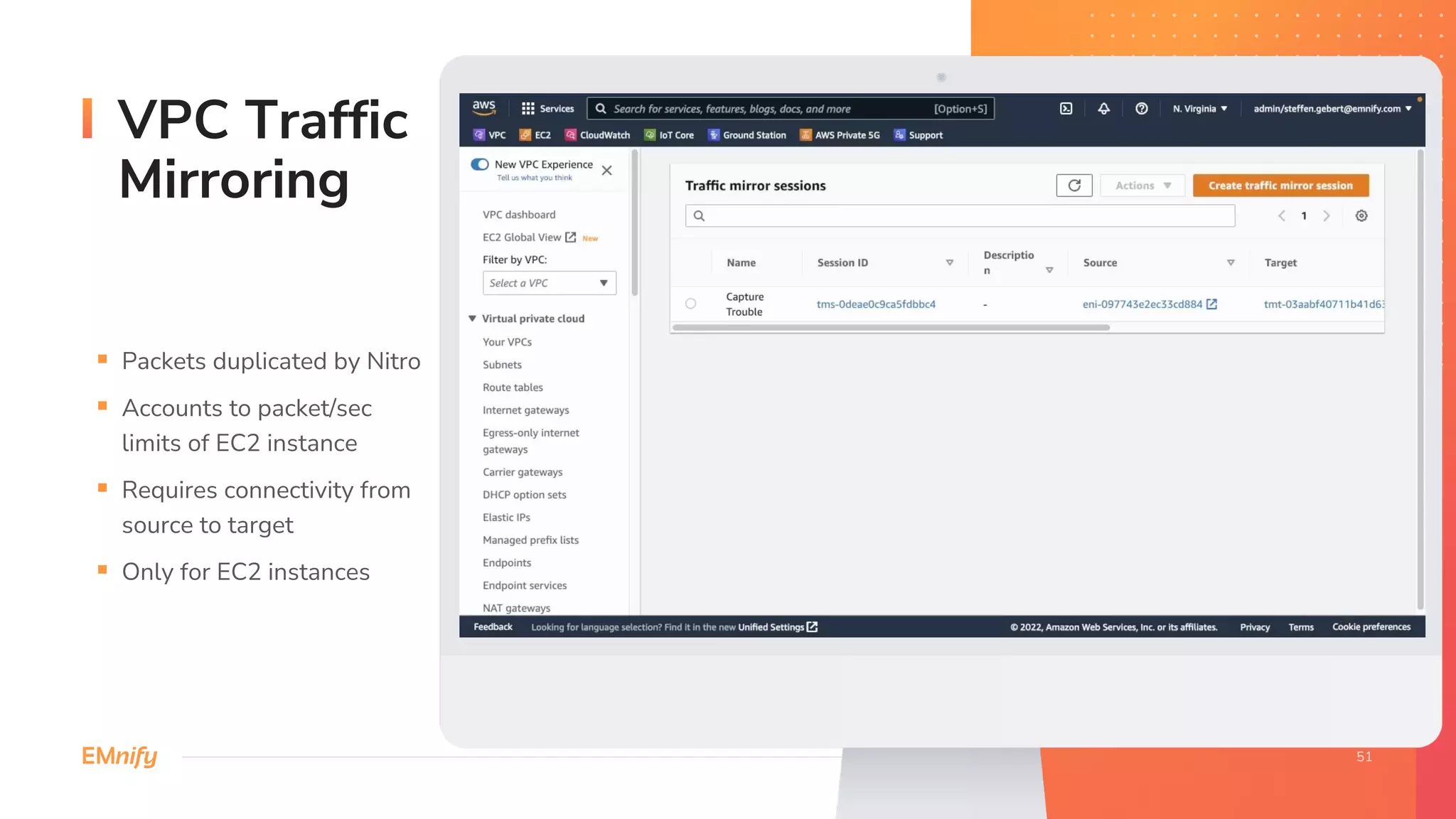

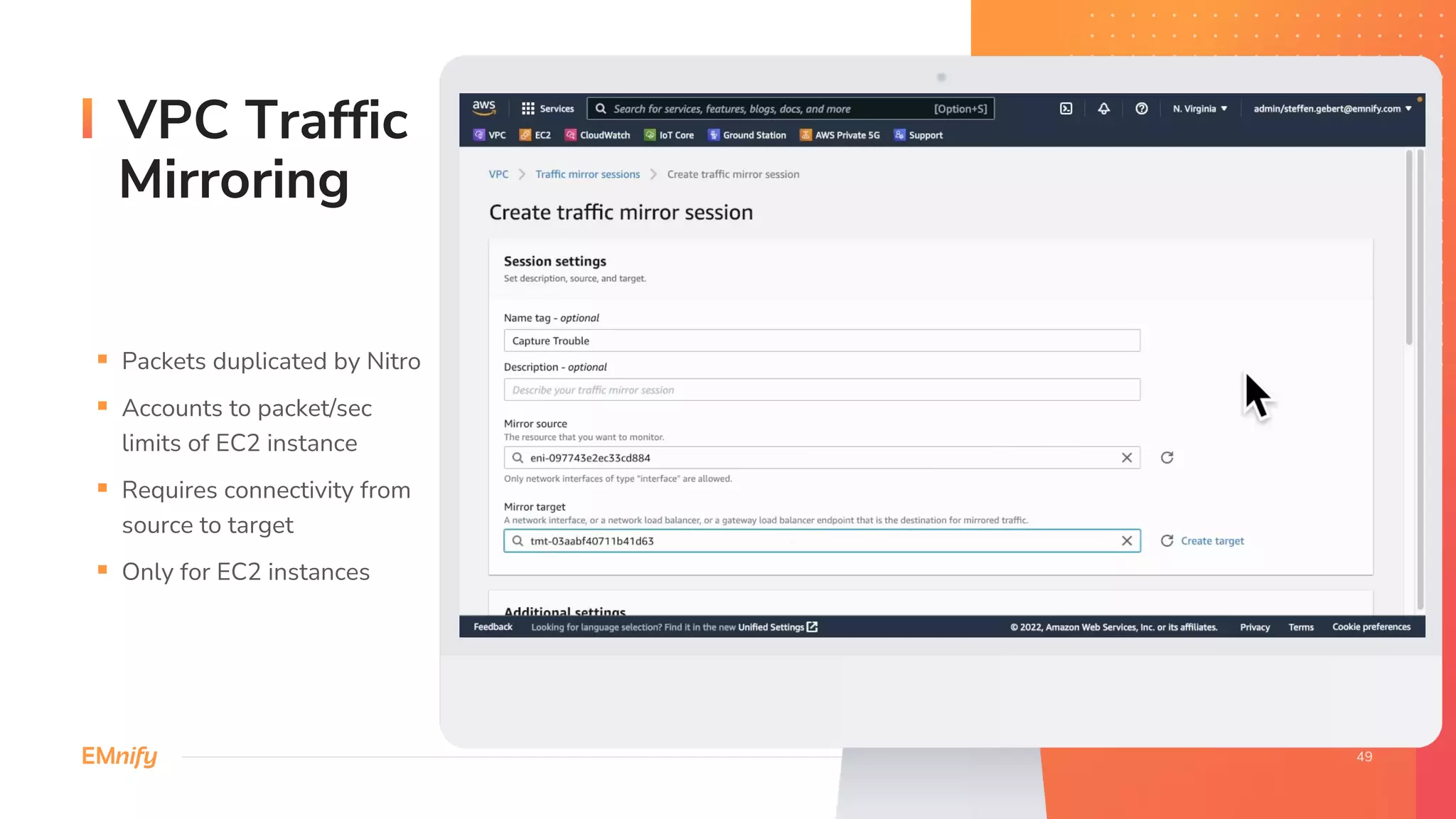

- 51. VPC Traffic Mirroring § Packetsduplicated by Nitro § Accounts to packet/sec limits of EC2 instance § Requires connectivity from source to target § Only for EC2 instances

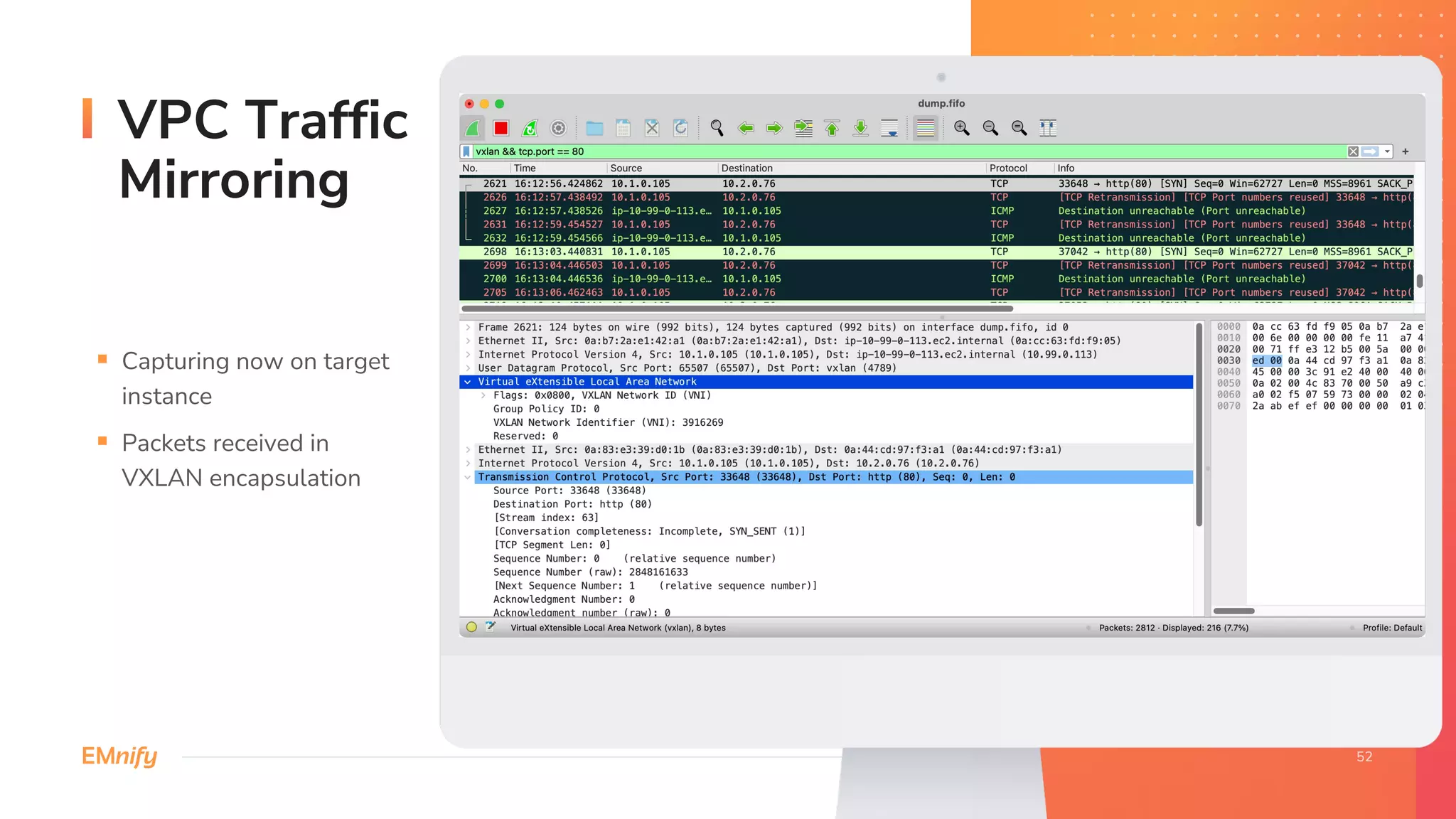

- 52. VPC Traffic Mirroring § Capturingnow on target instance § Packets received in VXLAN encapsulation
- 53. That’s fun! N OB O D Y E V E R D O I N G T H I S 53

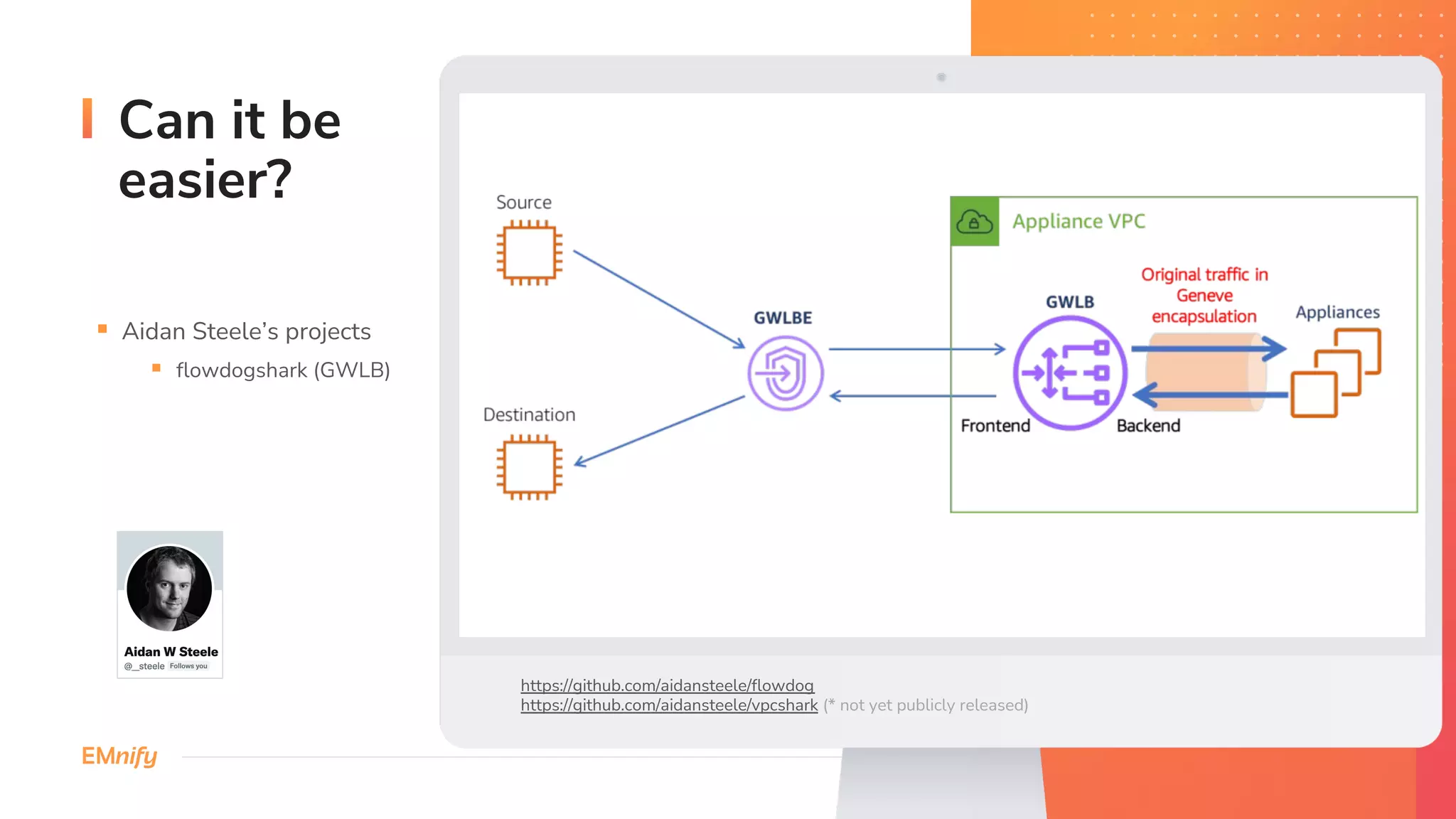

- 54. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)

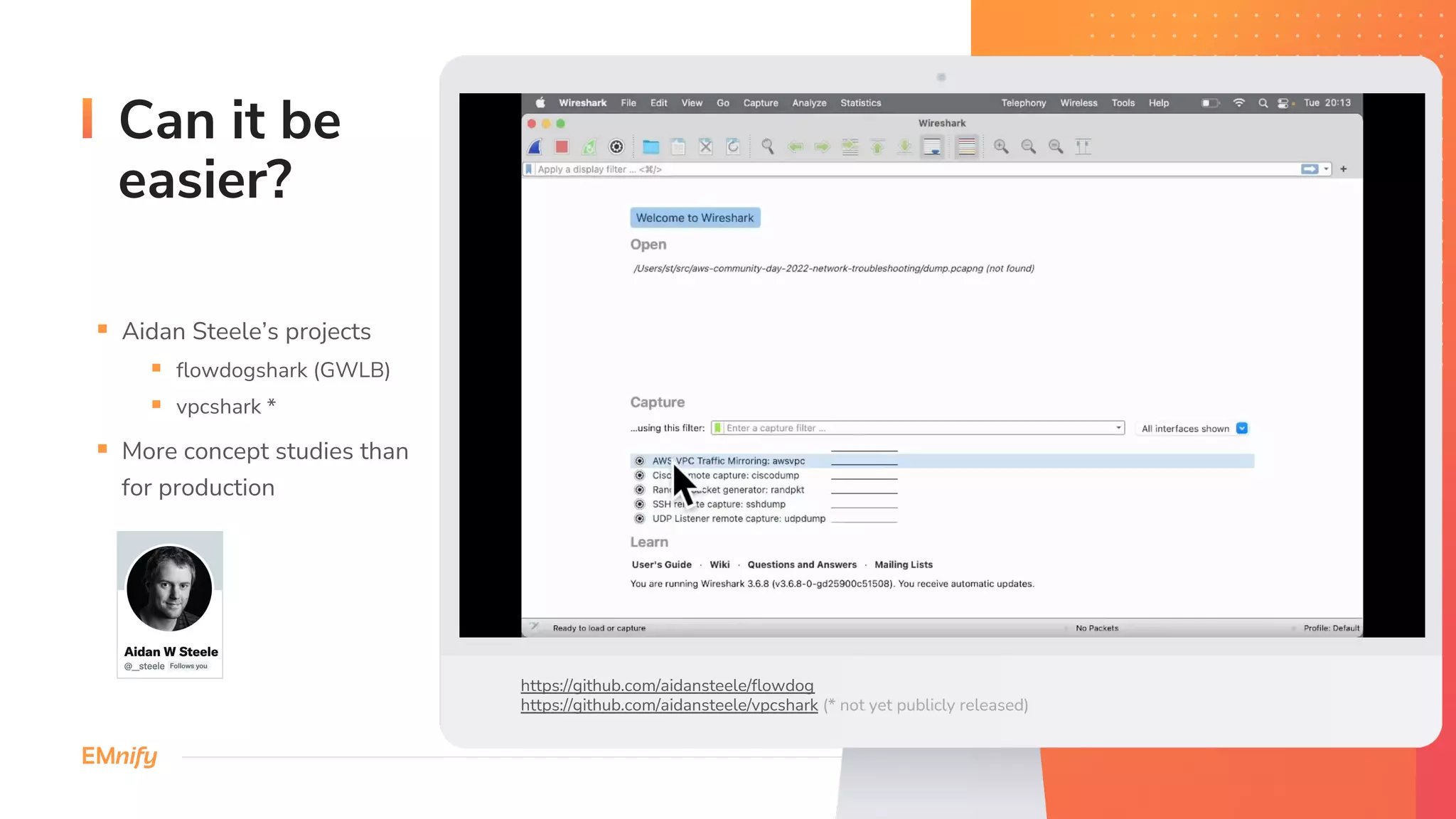

- 55. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)

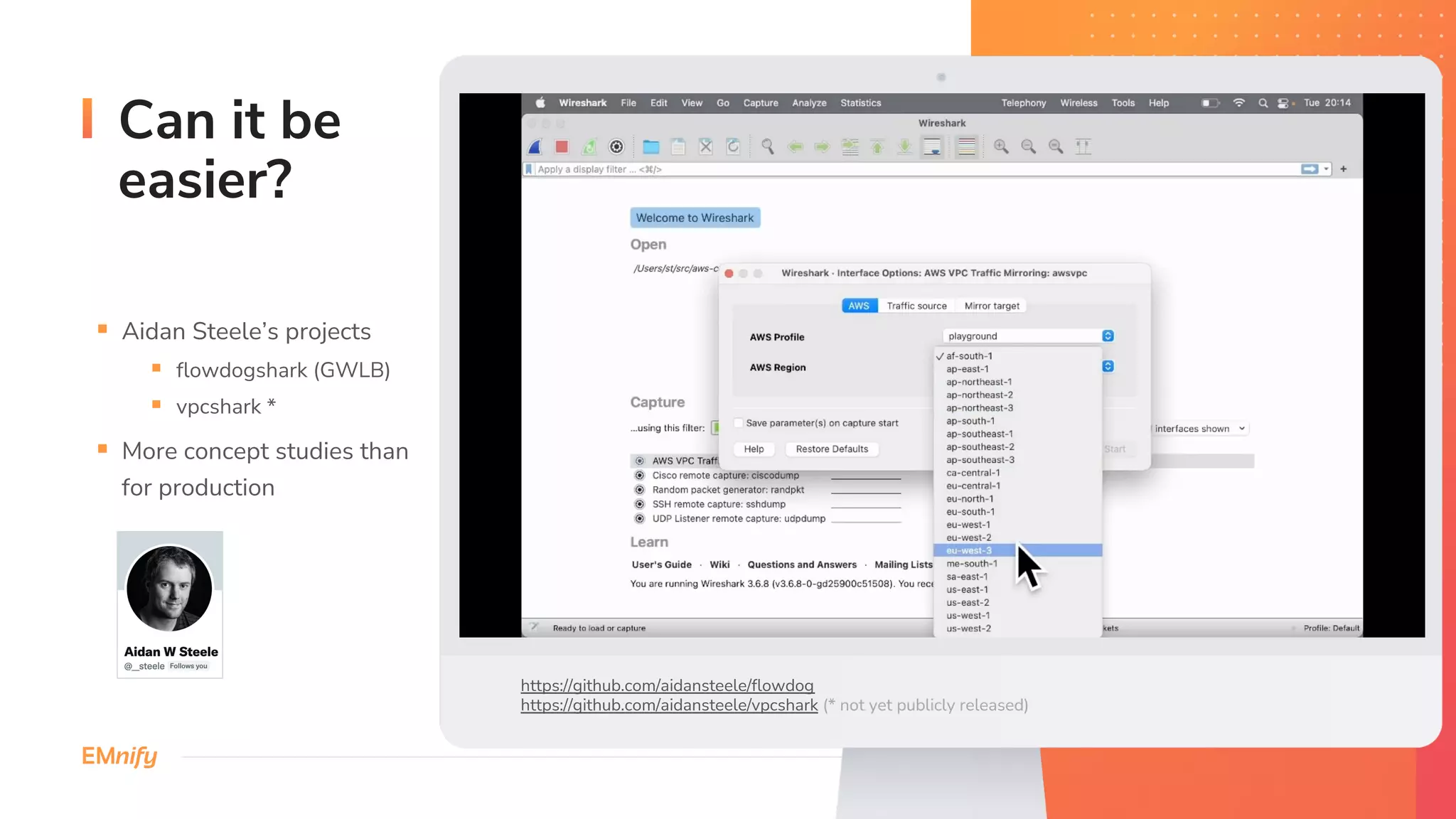

- 56. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)
- 57. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)

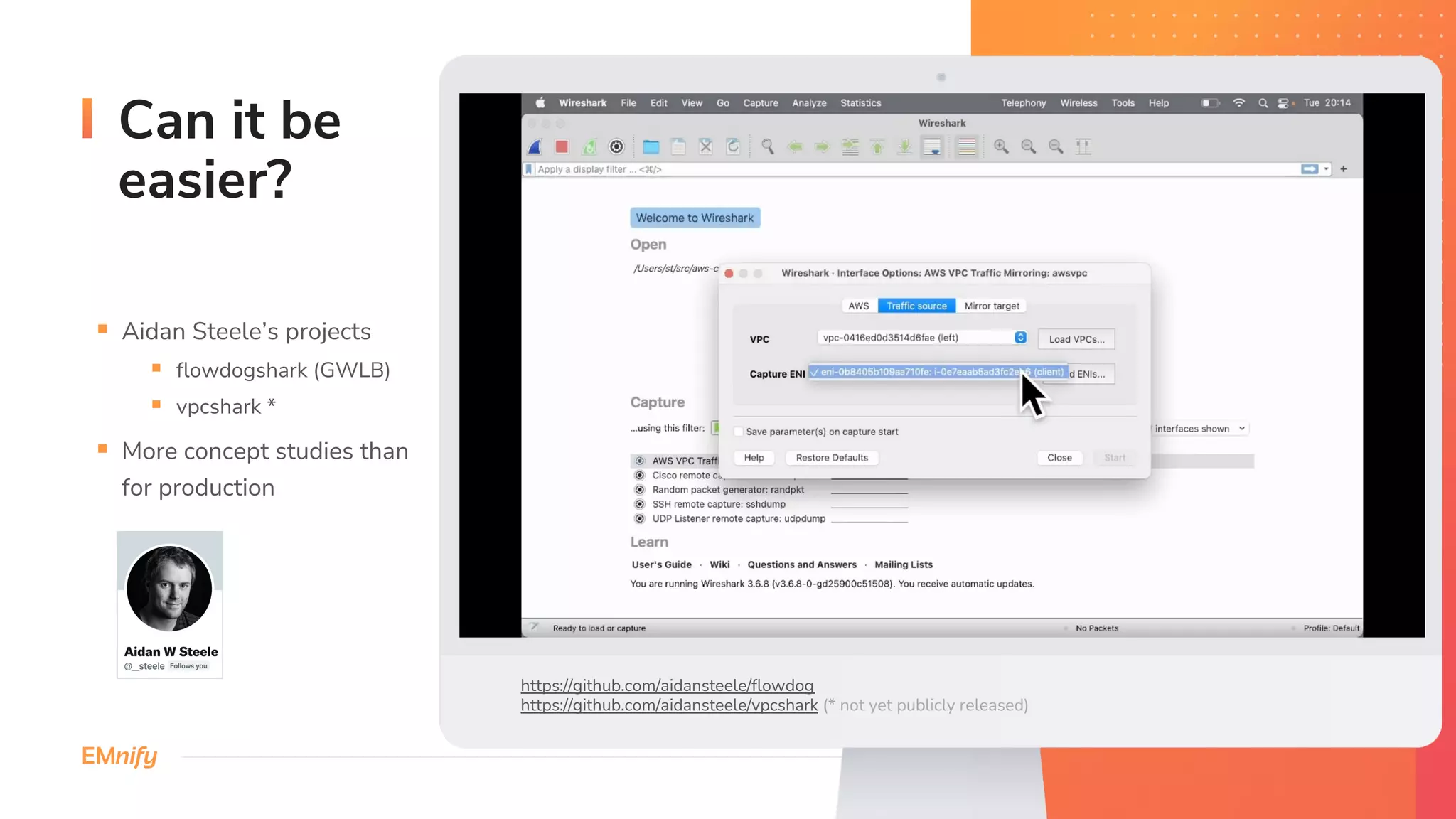

- 58. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)
- 59. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)

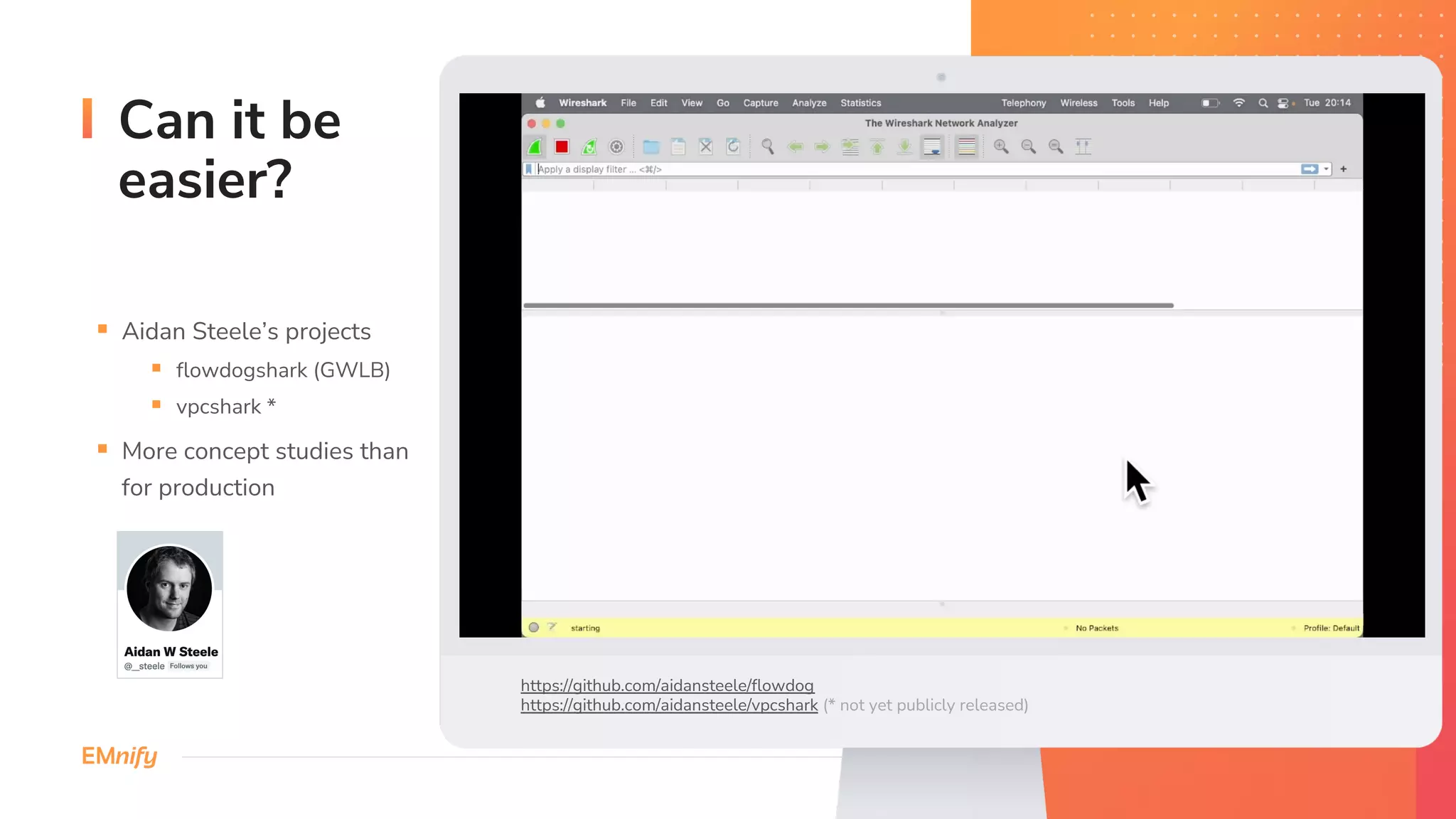

- 60. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)
- 61. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)
- 62. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)
- 63. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)
- 64. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)

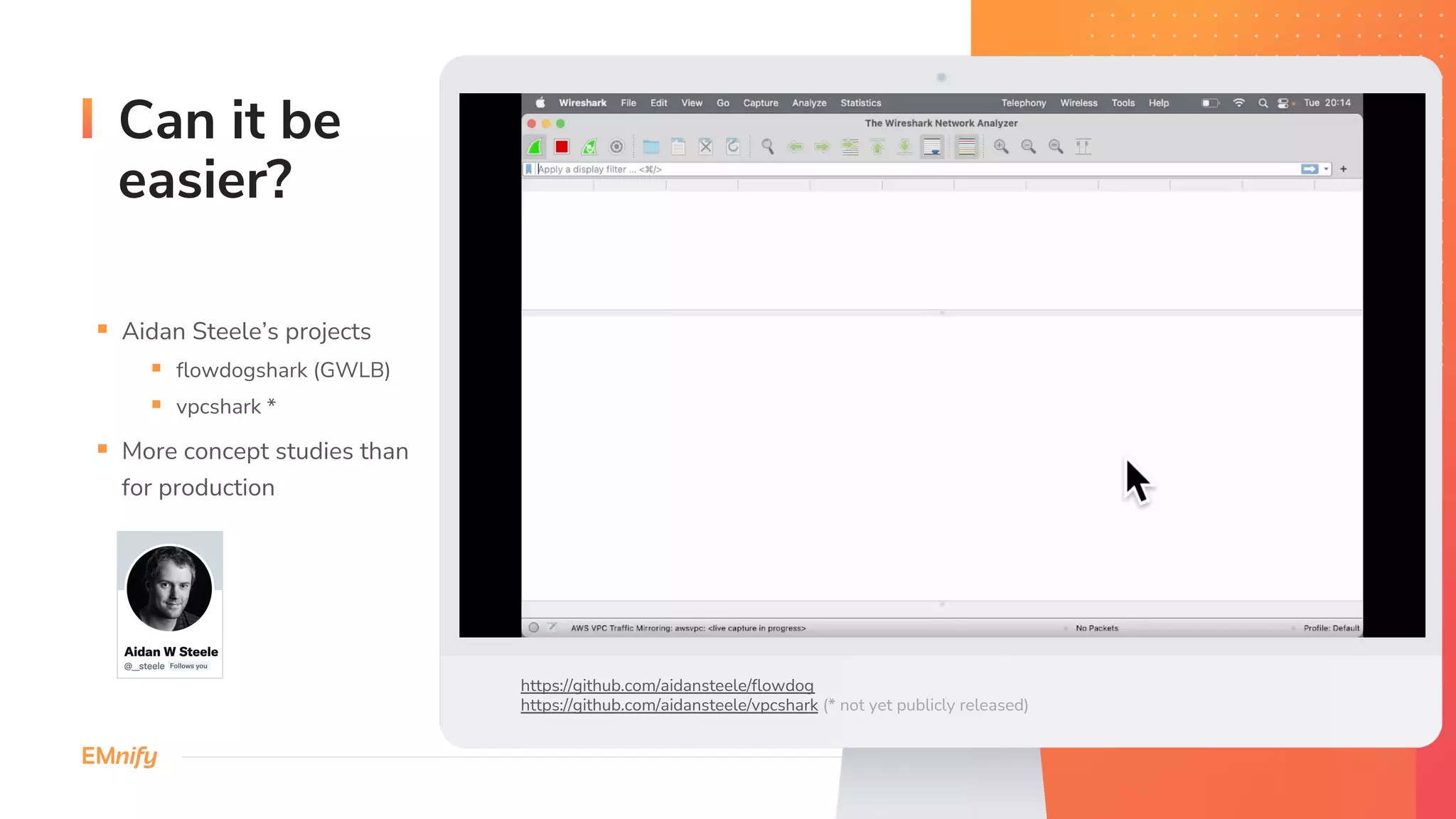

- 65. Can it be easier? §Aidan Steele’s projects § flowdogshark (GWLB) § vpcshark * § More concept studies than for production https://github.com/aidansteele/flowdog https://github.com/aidansteele/vpcshark (* not yet publicly released)
- 66. When nothing helps… Askyour AWS Account Team THANKS Karl!

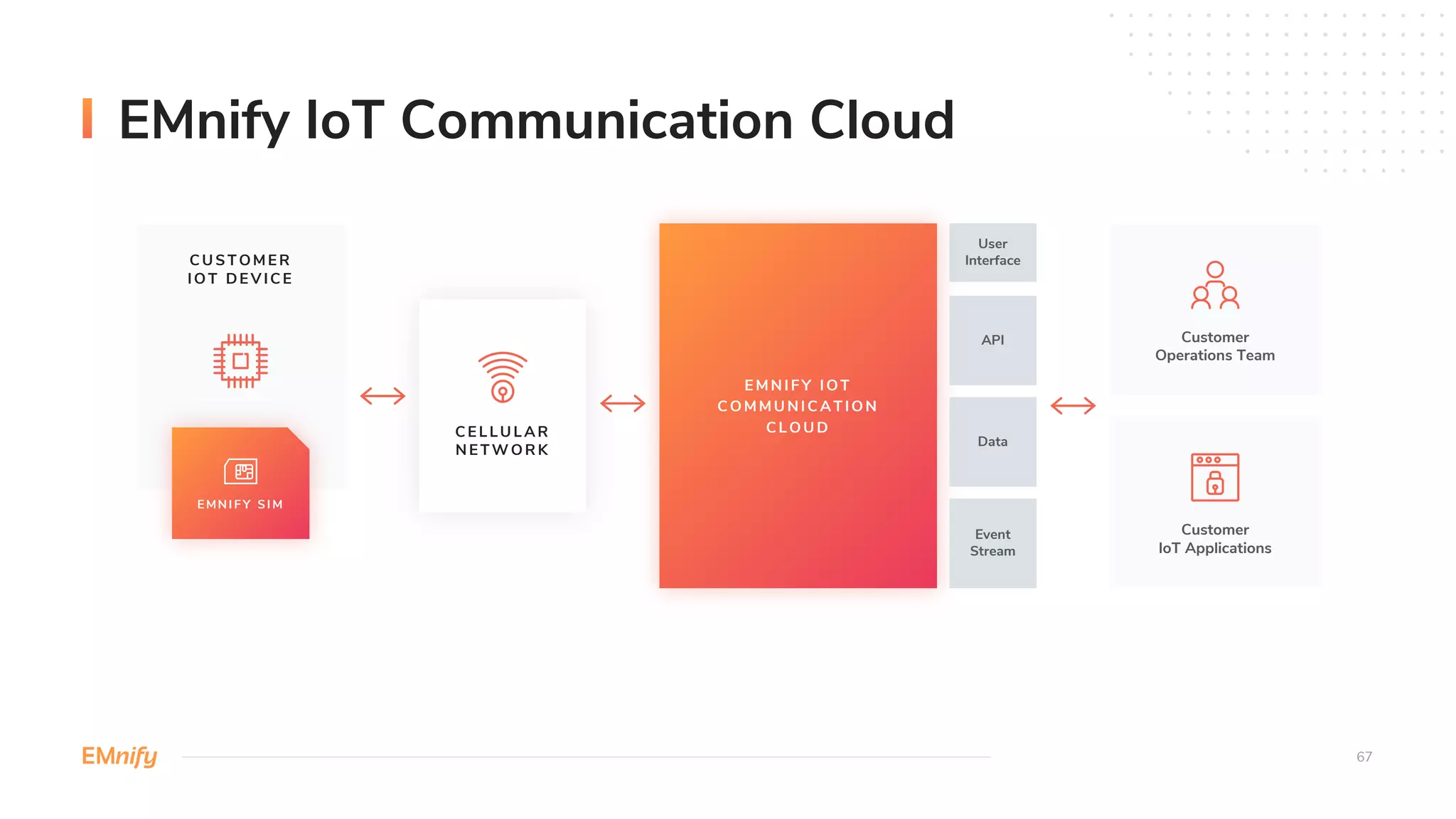

- 67. EMnify IoT CommunicationCloud 67 User Interface EMN IFY IOT COMMU N ICATION CLOU D API Data Event Stream CELLU LAR N ETW OR K Customer IoT Applications Customer Operations Team EMNI F Y SI M CU STOMER IOT DEVICE
- 68. Dr. Steffen GebertWolfgang Schäfer 68 Your Trouble Shooters § Director Technology, Infrastructure § @StGebert § Senior Core Network Engineer § @wo_wue

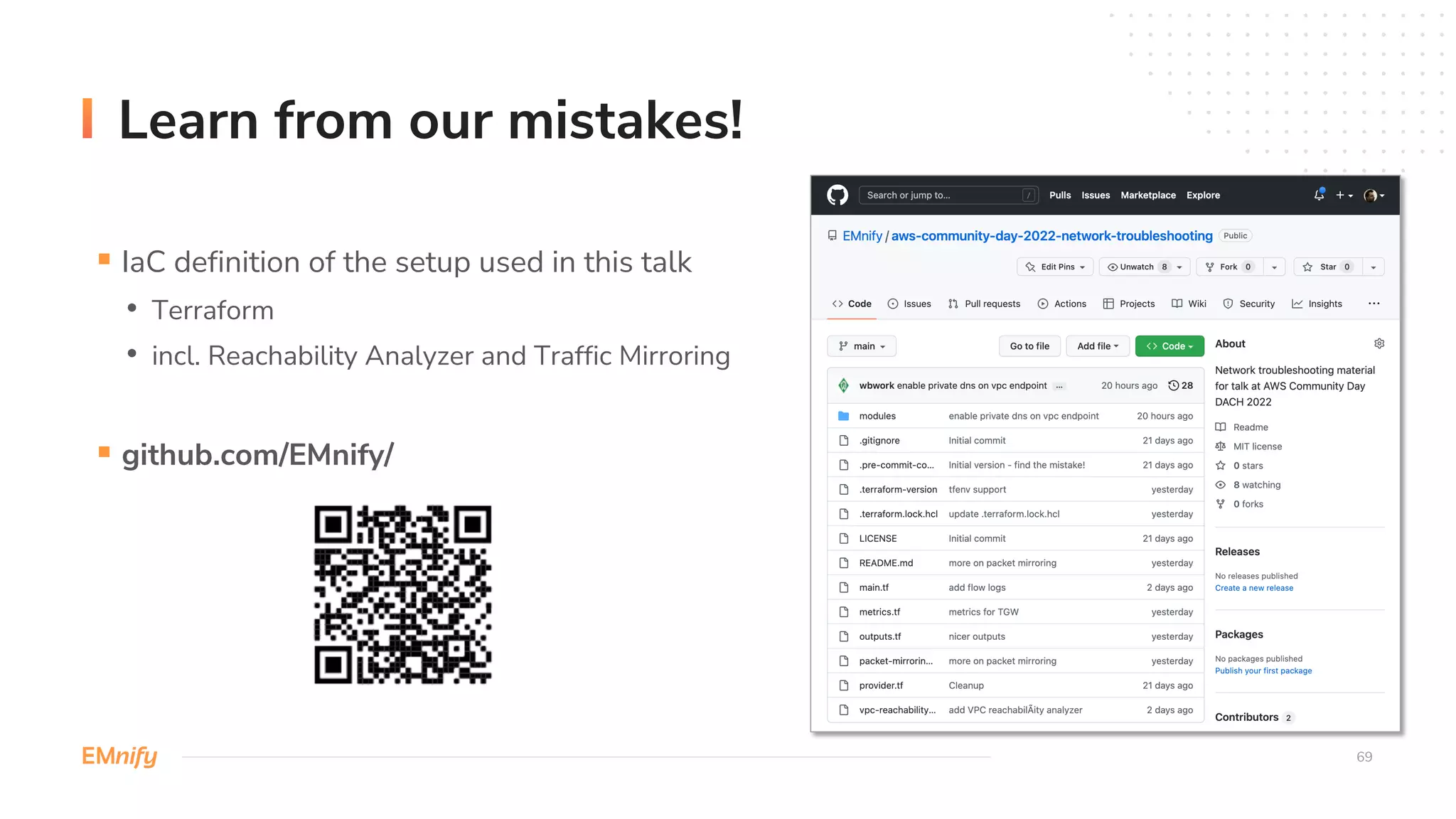

- 69. 69 Learn from ourmistakes! § IaC definition of the setup used in this talk • Terraform • incl. Reachability Analyzer and Traffic Mirroring § github.com/EMnify/

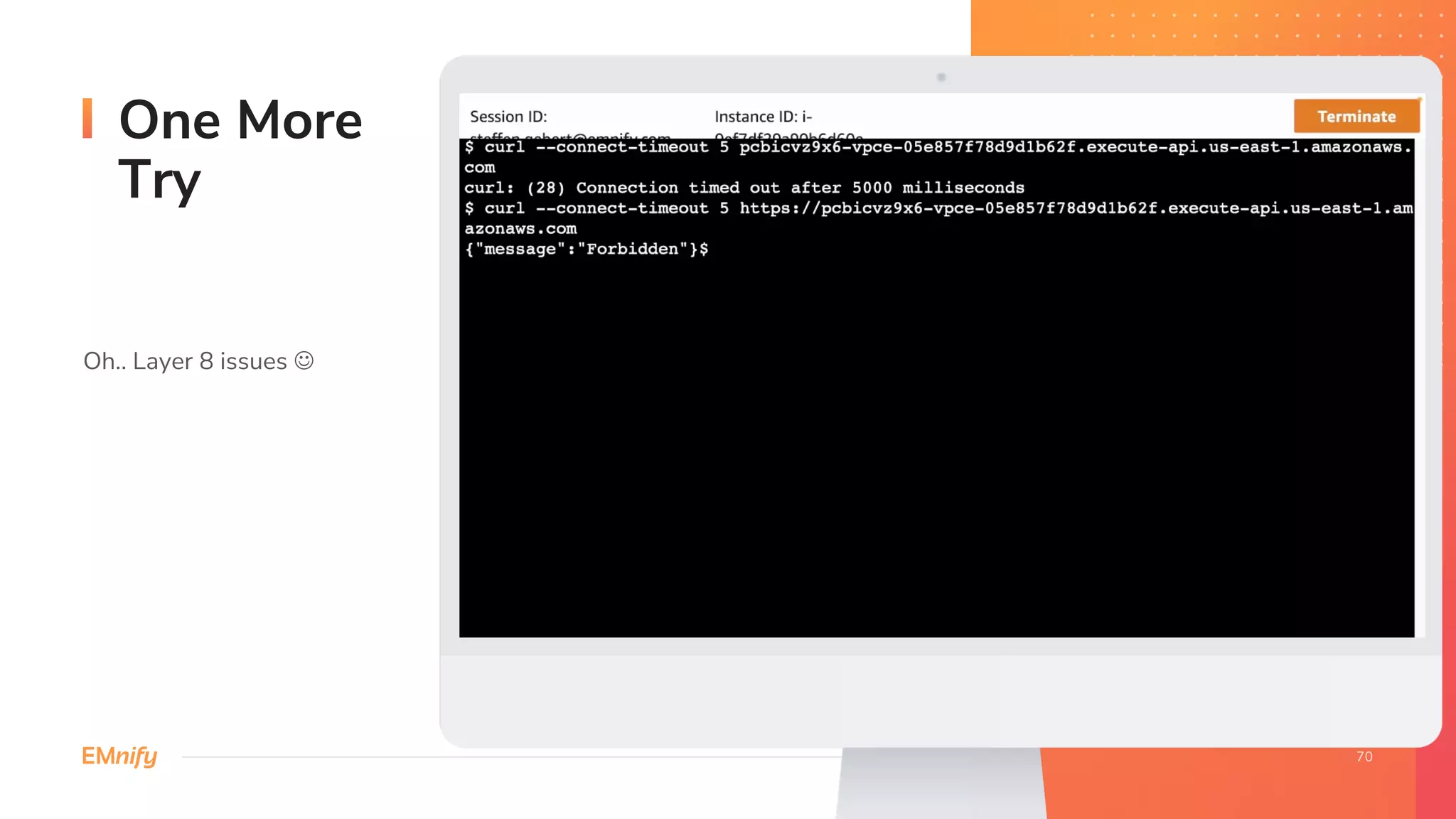

- 70. One More Try Oh.. Layer8 issues J

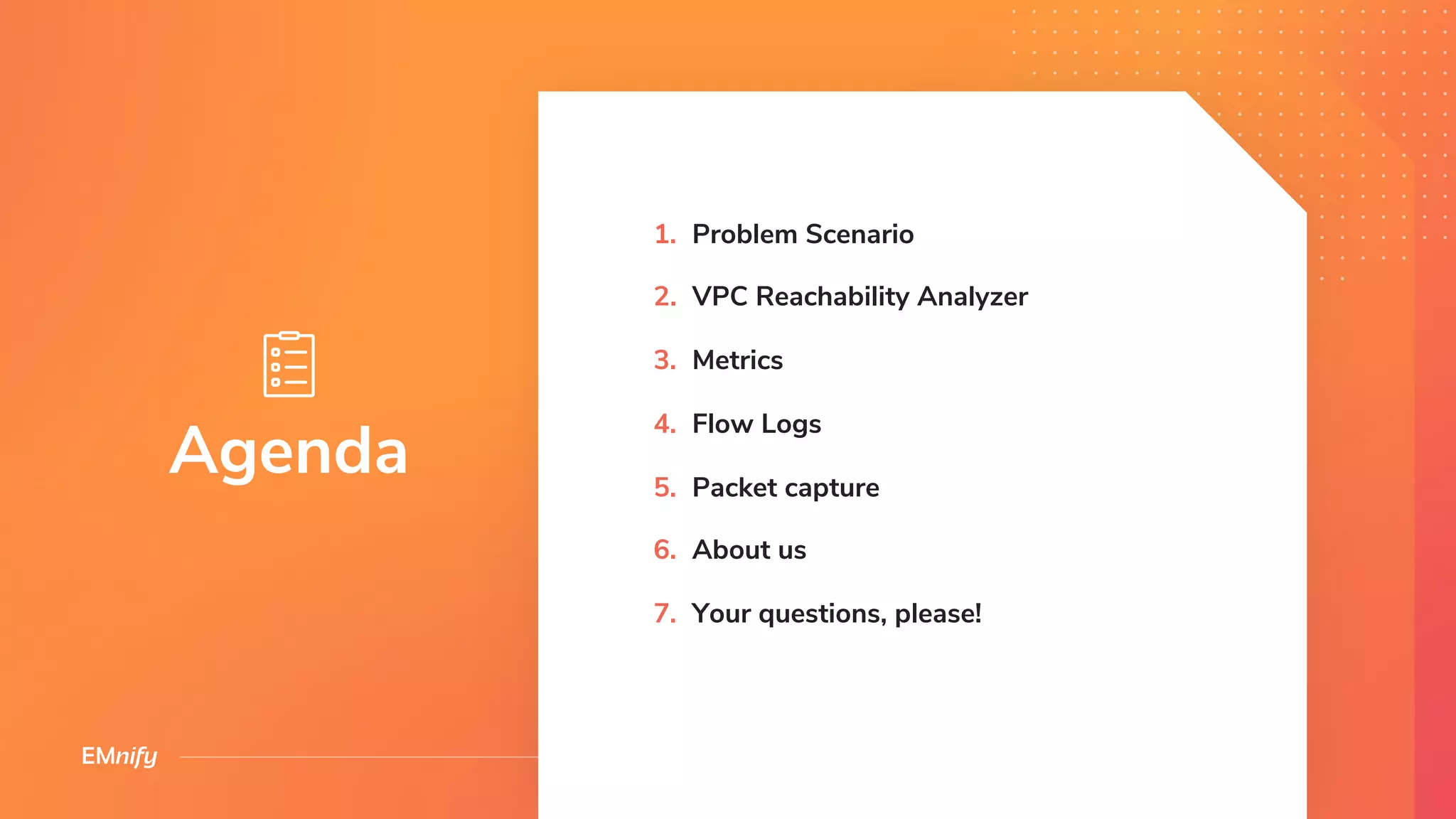

- 71. Agenda 1. Problem Scenario 2.VPC Reachability Analyzer 3. Metrics 4. Flow Logs 5. Packet capture 6. About us 7. Your questions, please!
