DevOpsDays 2018 - Migrating a Cloud Native App to k8s

  1. @gokhansengun Migrating a Cloud Native App Running on AWS to k8s Gökhan Şengün DevOpsDays İstanbul - Sep 2018
  2. DEVOPS Zirvesi 2017 me • Full-Stack Developer with 12 years of experience • Blogging every Monday on Medium • In Turkish and mostly about DevOps related concepts @gokhansengun • Currently working for • Sending random tweets @gokhansengun
  3. @gokhansengun 1. What is this talk about? Replatforming a cloud native app running on Aws to k8s
  4. @gokhansengun 2. How does application look like?
  5. DEVOPS Zirvesi 2017 @gokhansengun • Runs on • 15 services all written with • Heavily using Aws services like • In 3 different Aws regions • Complex integrations with 3rd parties • Not a simple mobile application :-) How does application look like?
  6. @gokhansengun 3. What were customer’s requirements?
  7. DEVOPS Zirvesi 2017 @gokhansengun • Be cloud agnostic • Run on bare metal • Create a new installation by clicking of a button • Improve developer experience • Improve operational experience • Prevent SPOF on vital system components • Make it cost effective • Improve observability and operational measurements • Run hand-to-hand with legacy system to ease migration • Have zero-downtime deployments • Have auto-scale in infrastructure level What were customer’s requirements?
  8. @gokhansengun 4. How did we approach it?
  9. DEVOPS Zirvesi 2017 @gokhansengun • Abstract away creation of compute, network, storage resources • to support becoming cloud agnostic • Apply Immutable Infrastructure and Infrastructure as Code (IaC) • to automate and ease new installations • Containerize and orchestrate services • to create parity between dev, test, prod environments • to build health checks, observability and prevent SPOF • Leave stateful parts out of the first phase’s scope • to run hand-to-hand with legacy system How did we approach it?

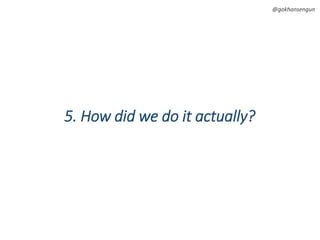

  10. @gokhansengun 5. How did we do it actually?
  11. @gokhansengun 5.1. Creation of Cloud Resources
  12. DEVOPS Zirvesi 2017 @gokhansengun • Used HashiCorp Packer to bake cloud images (ex: ami for Aws) • Packer’s Ansible provisioner is used • This is to use the same Ansible playbooks in on-prem case • Used HashiCorp Terraform to create/provision cloud resources Creation of Cloud Resources
  13. DEVOPS Zirvesi 2017 @gokhansengun Creation of Cloud Resources Cloud Images Ansible Playbooks On-prem Servers
  14. @gokhansengun 5.2. Containerization and Orchestration
  15. DEVOPS Zirvesi 2017 @gokhansengun • Docker was used as the container runtime • Main stream, everybody knows it • People familiar with its CLI • Apps were quickly containerized • Kubernetes is selected as the Container Orchestrator • There are not many choices these days • It is the de facto standard • Preparing k8s definition files were easy too • App already had health check endpoints • Handling signals correctly • Harbor is used for container registry Containerization and Orchestration
  16. @gokhansengun 5.3. Configuration and Secret Mgmt
  17. DEVOPS Zirvesi 2017 @gokhansengun • etcd is used as K/V store • Configuration files are templated • Confd was used to render them • We found konfd not usable/flexible • Configuration values kept installation-based • Same template used for dev, test, staging and every installation • Configuration change • Triggers re-render of the template • Triggers re-deploy of the app w/ no downtime Configuration Management
  18. DEVOPS Zirvesi 2017 @gokhansengun • HashiCorp Vault is used as storage for secrets • Confd renders secrets from template to config • k8s-Vault Integration used for seamless integration • Secrets are visible only inside the container • Used Vault as CA (Certificate Authority) for X.509 Certificates • k8s component certificates generated with it • Used Vault to generate Aws keys for short period of time • Will use Vault to manage SSH access to machines • Except to k8s workers where containers run Secret Management
  19. @gokhansengun 5.4. k8s Cluster Setup
  20. DEVOPS Zirvesi 2017 @gokhansengun • Used kubeadm initially but replaced after a custom setup • Kops and other solutions not possible due to cloud + on-prem support • Control plane services run with systemd • Supports both HA (production) or non-HA (test, staging) mode • Terraform provisioners used to bootstrap the cluster for cloud case • HashiCorp Vault is used for creating and renewing certificates • Allowed easily creating/destroying worker nodes in auto-scaling scenario • cfssl is used for developer box k8s certificates k8s Cluster Setup
  21. @gokhansengun 5.5. CI/CD Pipeline
  22. DEVOPS Zirvesi 2017 @gokhansengun • Jenkins is used to initiate all processes • It is the single point of contact to whole infra • Docker images for services auto-built, tagged and pushed • Tagging scheme selected for the need, details irrelevant • Spinnaker is used to manage the k8s deployments • Workflows and accountability were the reasons of selection • Infrastructure creation/modification is also done through Jenkins • Called GitOps these days • Change on the Terraform source code applied on infra CI/CD Pipeline
  23. @gokhansengun 5.6. Logging, Monitoring, Alarming
  24. DEVOPS Zirvesi 2017 @gokhansengun • Our Motto: “Do not search issues in log files, look into alarms” • If there is a problem but no alarm, think of creating an alarm • Prometheus used to infra and application collect metrics • Still need to generate more operational metrics • Still need to create more alarms based on OM data • Grafana used to visualize collected metrics • Container logs collected on each worker node with syslogd • Logs then collected by existing ELK infrastructure Logging, Monitoring, Alarming
  25. @gokhansengun 5.7. Overall Architectural Look
  26. DEVOPS Zirvesi 2017 @gokhansengun Overall Architectural Look Coordination Environment eu-west installation ap-southeast-2 installation
  27. @gokhansengun 5.8. Developer Box
  28. DEVOPS Zirvesi 2017 @gokhansengun • Every developer has her/his separate environment locally • Including Jenkins/Grafana/Prometheus/ELK • HashiCorp Vagrant is used to orchestrate and provision developer box • Developer may configure any test/staging environments on Aws for stateful parts for his local machine • Best of all – real magic: developer may develop/debug any of the 15 services on her/his host machine with IDE :-) Developer Box
  29. DEVOPS Zirvesi 2017 @gokhansengun Developer Box – Developing Locally Dev Host Box Virtual Box Stateful Components in the Cloud App containers run by k8s Apps running on the host directly Routing Point
  30. DEVOPS Zirvesi 2017 @gokhansengun • GameChanger move: It is possible to change mobile app’s endpoint to route traffic to selected developer box from public internet Developer Box – Connect Mobile App Installation in the Cloud Proxy Tunnel Server Tunnel Client App running locally Tunnel between dev-box and the cloud Mobile App Isolated Network w Firewall/NAT Dev Box
  31. DEVOPS Zirvesi 2017 @gokhansengun • Performance move: Developer box has lots of Docker images, a registry mirror VM is used to cache and speed bootstraping up Developer Box – Registry Mirror Harbor – Private RegistryDev Box Registry Mirror Box Docker Hub etc
  32. @gokhansengun Immutability and Infrastructure as Code (IaC) Tips and Benefits
  33. DEVOPS Zirvesi 2017 @gokhansengun • Not everything is container but everything is immutable • Spinnaker and Harbor have its own VMs and but not containers • Jenkins has its own VM but container • All dependencies are included with version no latest tag • Example: FROM jenkins/jenkins:2.121.1 • Every non-stateful system component is mortal • May be recreated at any time without any data loss • Even the whole cluster (k8s et all) is mortal • Any time a new one could be created and traffic moved over Immutability and IaC - Tips and Benefits
  34. DEVOPS Zirvesi 2017 @gokhansengun • Everything including infrastructure is coded • It allows full-automation • All system component (Harbor, Spinnaker, Jenkins) configurations are also coded • Example: Jenkins is a container • Plugins coded • Job definitions coded and kept in git • Job configurations coded • Job configurations baked into Jenkins during Docker build • When run, Jenkins container becomes ready immediately Immutability and IaC - Tips and Benefits
  35. @gokhansengun Thanks
