OSMC 2018 | Current State of Icinga by Bernd Erk

- Bernd Erk introduced the current state of Icinga including the Icinga stack, core components like Icinga2 and Director, and new products like the x509 and vSphere modules. - Recent updates to Icinga2 focus on stability, namespaces, and syntax highlighting while Director added support for multiple instances and configuration baskets. - Icinga DB is targeted for Q1 2019 and will replace IDO with improved performance, flexibility and a new schema. - The presentation demonstrated the Icinga modules for vSphere and x509 as well as integrating Icinga with Node-RED for IoT use cases.

Software◩
Als PDF, PPTX herunterladen
Current State of Icinga 6th Nov 2018 | OSMC | Nuremberg
Introduction
Introduction Bernd Erk
Responsibilities Contact Personal Strategy, Partnerships and mainly Entertainment bernd.erk@icinga.com or better follow me on Twitter @gethash – No warranty In love with burgers, NETWAYS, Icinga and most other people Bernd Erk Co-Founder and CEO
Introduction Icinga

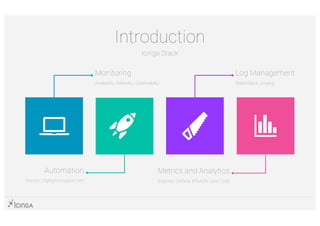

Introduction Icinga Stack Monitoring Availability, Reliability, Observability Log Management ElasticStack, Graylog Automation Director, CfgMgmt-Support, API Metrics and Analytics Graphite, Grafana, InfluxDB, OpenTSDB
Icinga2 Core Scalable infrastructure monitoring icinga.com/docs/icinga2/ Combine high availability clusters with a distributed setup, and you have a best practice scenario for large and complex environments. Monitoring as code with dynamic configurations. Icinga2 Core

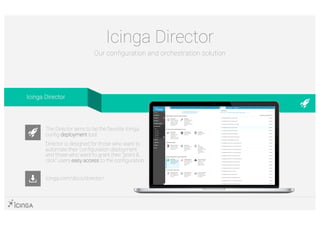

Icinga Director Our configuration and orchestration solution icinga.com/docs/director/ The Director aims to be the favorite Icinga config deployment tool. Director is designed for those who want to automate their configuration deployment and those who want to grant their “point & click” users easy access to the configuration. Icinga Director

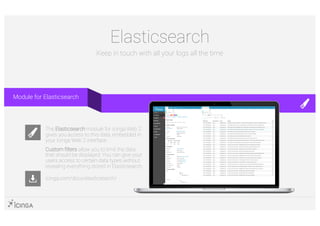

Elasticsearch Keep in touch with all your logs all the time icinga.com/docs/elasticsearch/ The Elasticsearch module for Icinga Web 2 gives you access to this data, embedded in your Icinga Web 2 interface. Custom filters allow you to limit the data that should be displayed. You can give your users access to certain data types without revealing everything stored in Elasticsearch. Module for Elasticsearch

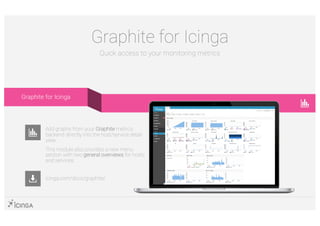

Graphite for Icinga Quick access to your monitoring metrics icinga.com/docs/graphite/ Add graphs from your Graphite metrics backend directly into the host/service detail view. This module also provides a new menu section with two general overviews for hosts and services. Graphite for Icinga
Integrations Support for leading solutions
Ecosystem
Who is using Icinga?
Icinga Users icinga.com/about/customers/ You?
Icinga Partners Services and support around the globe

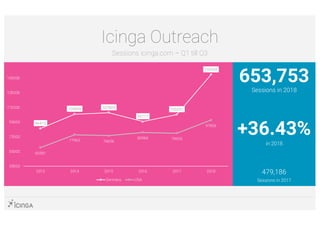

Icinga Outreach Sessions icinga.com – Q1 till Q3 86415 105899 107805 95717 105291 159535 60381 77963 76656 80984 79955 97826 35000 55000 75000 95000 115000 135000 155000 2013 2014 2015 2016 2017 2018 Germany USA 653,753 479,186 Sessions in 2018 Sessions in 2017 +36.43% in 2018
Community
Icinga Meetups Local community groups in 2018 JalandharSalzburgBerlin Zurich icinga.com/events/meetups/
Icinga Camps Upcoming Icinga Camps Tel Aviv 2018 17th December icinga.com/events/ Berlin 2019 14th March Washington 2019
Product Update

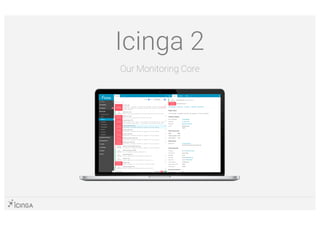

Icinga 2 Our Monitoring Core
01 Stability 03 Namespaces 02 Syntax Highlighting Icinga 2 Latest features from Icinga 2.10 This release adds a dynamic thread connection pool for both, cluster messages and HTTP requests. With the performance boost granted, we’ve also lowered the cluster reconnect interval from 60 to 10 seconds. 2.10 also brings support for namespaces and allows us to keep the “globals” namespace clean. In addition to that, user-defined namespaces are possible and can be imported into the global namespace too Updated the vim syntax highlighting including namespace support. You’ll also recognize that macro strings are now specifically highlighted.

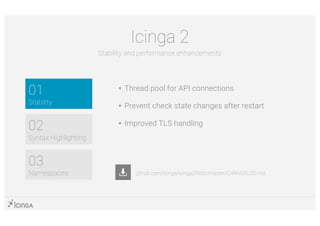

‱ Thread pool for API connections ‱ Prevent check state changes after restart ‱ Improved TLS handling 01 Stability 03 Namespaces 02 Syntax Highlighting Icinga 2 Stability and performance enhancements github.com/Icinga/icinga2/blob/master/CHANGELOG.md

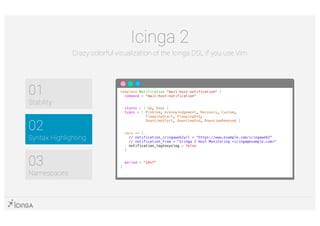

01 Stability 02 Syntax Highlighting Icinga 2 Crazy colorful visualization of the Icinga DSL if you use Vim template Notification "mail-host-notification" { command = "mail-host-notification" states = [ Up, Down ] types = [ Problem, Acknowledgement, Recovery, Custom, FlappingStart, FlappingEnd, DowntimeStart, DowntimeEnd, DowntimeRemoved ] vars += { // notification_icingaweb2url = "https://www.example.com/icingaweb2" // notification_from = "Icinga 2 Host Monitoring <icinga@example.com>" notification_logtosyslog = false } period = "24x7" } 03 Namespaces

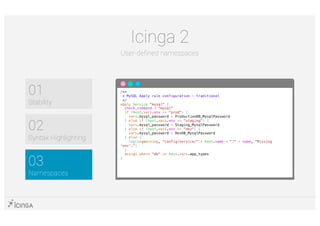

01 Stability 03 Namespaces Icinga 2 User-defined namespaces /** * MySQL Apply rule configuration - traditional */ apply Service "mysql" { check_command = "mysql" if (host.vars.env == "prod") { vars.mysql_password = ProductionDB_MysqlPassword } else if (host.vars.env == "staging") { vars.mysql_password = Staging_MysqlPassword } else if (host.vars.env == "dev") { vars.mysql_password = DevDB_MysqlPassword } else { log(LogWarning, "config/service/" + host.name + "!" + name, "Missing 'env'.") } assign where "db" in host.vars.app_types } 02 Syntax Highlighting
01 Stability 03 Namespaces Icinga 2 User-defined namespaces /** * Namespace configuration */ namespace Production { MysqlPassword = "icingalove" } namespace Staging { MysqlPassword = "monitoringlove" } namespace Development { MysqlPassword = “nolove" } 02 Syntax Highlighting

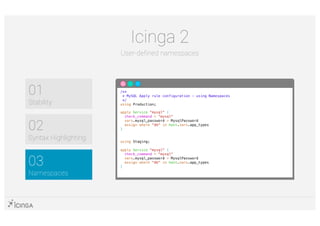

01 Stability 03 Namespaces Icinga 2 User-defined namespaces /** * MySQL Apply rule configuration - using Namespaces */ using Production; apply Service "mysql" { check_command = "mysql" vars.mysql_password = MysqlPassword assign where "db" in host.vars.app_types } using Staging; apply Service "mysql" { check_command = "mysql" vars.mysql_password = MysqlPassword assign where "db" in host.vars.app_types } 02 Syntax Highlighting

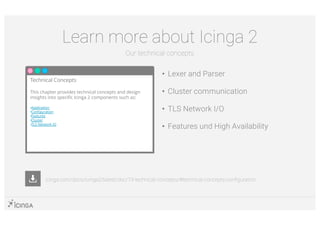

‱ Lexer and Parser ‱ Cluster communication ‱ TLS Network I/O ‱ Features und High Availability Learn more about Icinga 2 Our technical concepts Technical Concepts This chapter provides technical concepts and design insights into specific Icinga 2 components such as: ‱Application ‱Configuration ‱Features ‱Cluster ‱TLS Network IO icinga.com/docs/icinga2/latest/doc/19-technical-concepts/#technical-concepts-configuration

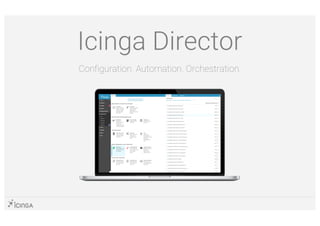

Icinga Director Configuration. Automation. Orchestration.
01 Multiple Instances 03 Config Basket 02 Health Check Icinga Director Latest features from Icinga Director 1.6 This used to be a hidden feature in the former version. Deal with multiple Director instances from a single web frontend. Deploy to completely distinct or to the very same Icinga Cluster. The Director Health Check has been a thing since v1.5. The latest version makes it Multi-Instance-aware and reachable from the Director Dashboard. Snapshot a specific Set of Commands, Templates, Import/Sync definitions and much more at any point time. Download, diff and/or restore to the very same or another Director instance. Perfect for Multi-Stage Setups and/or for sharing Configuration Snippets.

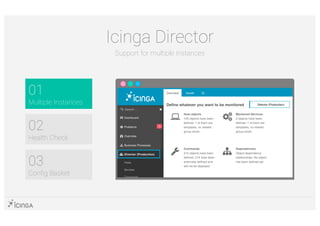

01 Multiple Instances 03 Config Basket 02 Health Check Icinga Director Support for multiple instances

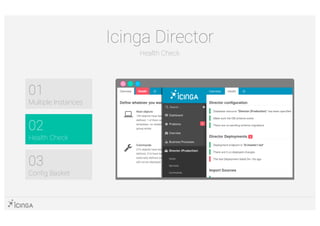

01 Multiple Instances 02 Health Check Icinga Director Health Check 03 Config Basket

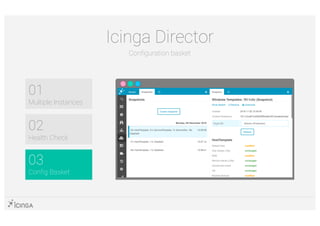

03 Config Basket Icinga Director Configuration basket 02 Health Check 01 Multiple Instances
New Products

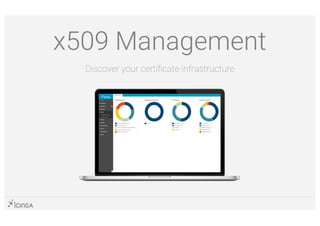

x509 Management Discover your certificate infrastructure

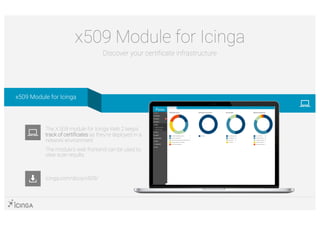

x509 Module for Icinga Discover your certificate infrastructure icinga.com/docs/x509/ The X.509 module for Icinga Web 2 keeps track of certificates as they're deployed in a network environment. The module's web frontend can be used to view scan results. x509 Module for Icinga
Demo

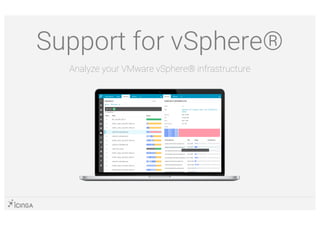

Support for vSphereÂź Analyze your VMware vSphereÂź infrastructure

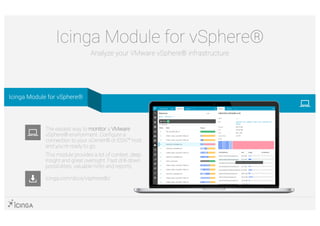

Icinga Module for vSphere¼ Analyze your VMware vSphere¼ infrastructure icinga.com/docs/vspheredb/ The easiest way to monitor a VMware vSphere¼ environment. Configure a connection to your vCenter¼ or ESXiℱ host and you're ready to go. This module provides a lot of context, deep insight and great oversight. Fast drill-down possibilities, valuable hints and reports. Icinga Module for vSphere¼
Demo
Icinga DB

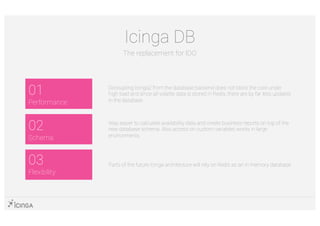

01 Performance 03 Flexibility 02 Schema Icinga DB The replacement for IDO Decoupling Icinga2 from the database backend does not block the core under high load and since all volatile data is stored in Redis, there are by far less updates in the database Way easier to calculate availability data and create business reports on top of the new database schema. Also access on custom variables works in large environments Parts of the future Icinga architecture will rely on Redis as an in memory database

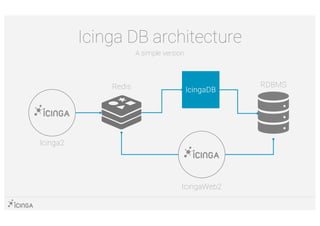

Icinga DB architecture A simple version Icinga2 IcingaDB RDBMSRedis IcingaWeb2
Demo
Playground

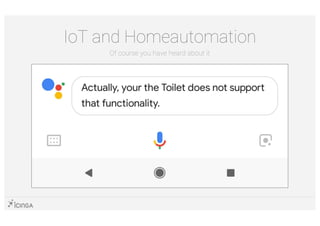

IoT and Homeautomation Of course you have heard about it

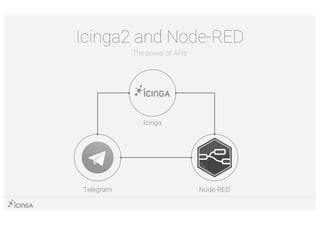

Icinga2 and Node-RED The power of APIs Node-REDTelegram Icinga

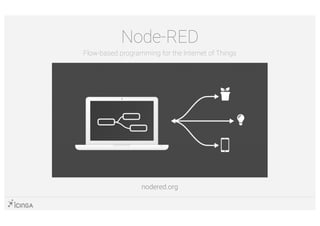

Node-RED Flow-based programming for the Internet of Things nodered.org
Demo
Summary

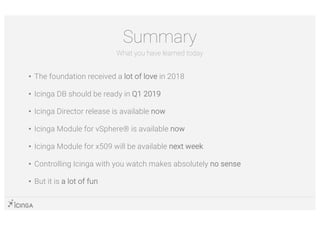

‱ The foundation received a lot of love in 2018 ‱ Icinga DB should be ready in Q1 2019 ‱ Icinga Director release is available now ‱ Icinga Module for vSphere¼ is available now ‱ Icinga Module for x509 will be available next week ‱ Controlling Icinga with you watch makes absolutely no sense ‱ But it is a lot of fun Summary What you have learned today
Thank You bernd.erk@icinga.com @gethash twitter.com/icinga facebook.com/icinga github.com/icinga
