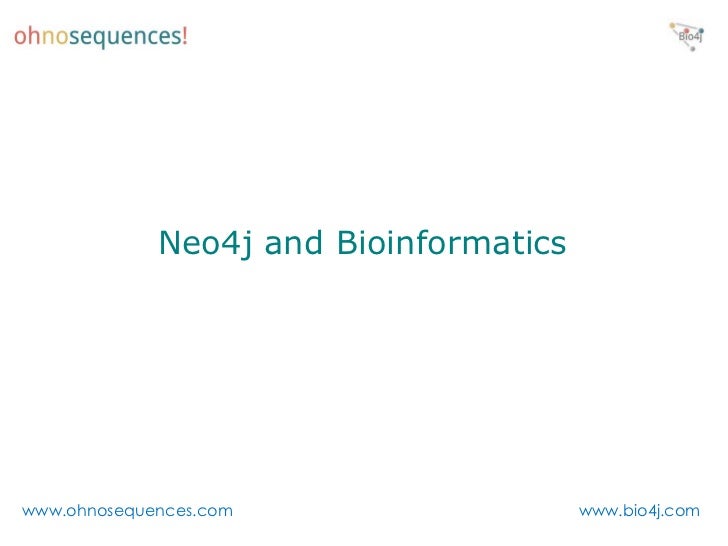

Neo4j and Bioinformaticswww.ohnosequences.com                   www.bio4j.com
But who’s this guy talking here?     I am Currently working as a Bioinformatics consultant/developer/researcher at     Oh ...
In Bioinformatics we have highly interconnected overlapping knowledge spread    throughout different DBswww.ohnosequences....
However all this data is in most cases modeled in relational databases.        Sometimes even just as plain CSV files     ...
With a relational paradigm, the double implication                              Entity  Table         does not go both w...
Life in general and biology in particular are probably not 100% like a graph…                                but one thing...
NoSQL data modelswww.ohnosequences.com        www.bio4j.com
Neo4j is a high-performance, NOSQL graph database with all           the features of a mature and robust database.        ...
What’s Bio4j?     Bio4j is a bioinformatics graph based DB including most data     available in :        Uniprot KB (Swiss...
What’s Bio4j?     It provides a completely new and powerful framework     for protein related information querying and    ...
What’s Bio4j?     Bio4j uses Neo4j technology, a "high-performance graph     engine with all the features of a mature and ...
What’s Bio4j?                        Everything in Bio4j is open source !       released under AGPLv3www.ohnosequences.com...
Bio4j in numbers     The current version (0.7) includes:             Relationships: 530.642.683             Nodes: 76.071....
Let’s dig a bit about Bio4j structure…               Data sources and their relationships:www.ohnosequences.com           ...
Bio4j domain modelwww.ohnosequences.com   www.bio4j.com
The Graph DB model: representation          Core abstractions:             Nodes             Relationships between nodes  ...
How are things modeled?                            Couldn’t be simpler!                 Entities           Associations / ...
Some examples of nodes would be:                                      GO term                  Protein                    ...
We have developed a tool aimed to be used both as a reference manual and    initial contact for Bio4j domain model: Bio4jE...
Entry points and indexing         There are two kinds of entry points for the graph:               Auxiliary relationships...
Retrieving protein info (Bio4jModel Java API)     //--creating manager and node retriever----     Bio4jManager manager = n...
Querying Bio4j with Cypher     Getting a keyword by its ID     START k=node:keyword_id_index(keyword_id_index = "KW-0181")...
A graph traversal language     Get protein by its accession number and return its full name     gremlin> g.idx(protein_acc...
REST Server     You can also query/navigate through Bio4j with the Neo4j REST API !     The default representation is json...
Visualizations (1)  REST Server Data Browser      Navigate through Bio4j data in real time !www.ohnosequences.com        ...
Visualizations (2)  Bio4j GO Toolswww.ohnosequences.com                    www.bio4j.com
Visualizations (3)  Bio4j + Gephi      Get really cool graph visualizations using Bio4j and Gephi visualization and      ...
Bio4j + Cloud     We use AWS (Amazon Web Services) everywhere we can around Bio4j, giving     us the following benefits:  ...
Why would I use Bio4j ?    Massive access to protein/genome/taxonomy… related information    Integration of your own DBs/r...
Community     Bio4j has a fast growing internet presence:            - Twitter: check @bio4j for updates            - Blog...
OK, but why starting all this?   Were you so bored…?!    It all started somehow around our need for massive access to prot...
These processes had to be automated for our (specifically designed for NGS data)  bacterial genome annotation system BG7  ...
BG7 algorithm       • Selection of the specific reference protein set   1       • Prediction of possible genes by BLAST si...
We got used to having massive direct access to all this protein related      information…           So why not adding othe...
Bio4j + MG7 + 48 Blast XML files (~1GB each)     Some numbers:                •   157 639 502 nodes                •   742...
MG7 domain modelwww.ohnosequences.com   www.bio4j.com
What’s MG7?     MG7 provides the possibility of choosing different parameters to fix the     thresholds for filtering the ...
Heat-map Vizwww.ohnosequences.com   www.bio4j.com
Graph Vizwww.ohnosequences.com   www.bio4j.com
MG7 Viewerwww.ohnosequences.com   www.bio4j.com
Mining Bio4j data      Finding topological patterns in Protein-Protein                  Interaction networkswww.ohnosequen...
Finding the lowest common ancestor of a set of NCBI                taxonomy nodes with Bio4jwww.ohnosequences.com         ...
Future directions (1)    Gene flux tool    New tool for bacterial comparative genomics: massive tracing of vertical and   ...
Future directions (2)    Detector of common annotations in gene clusters    Many biological problems are related to the se...
That’s it !                        Thanks for                        your time ;)www.ohnosequences.com                  ww...
