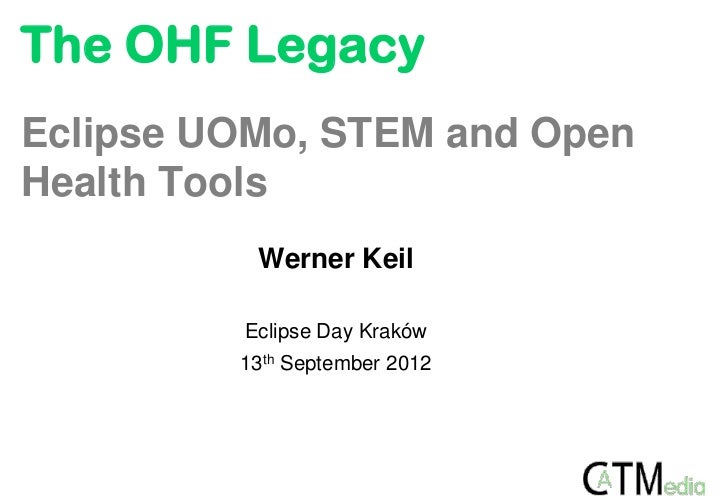

The OHF LegacyEclipse UOMo, STEM and OpenHealth Tools          Werner Keil         Eclipse Day Kraków         13th Septemb...
UOMo         STEM   Open Health Tools2   © 2007-2012 Creative Arts & Technologies          Images based on © Universal Pic...
Overview• Introduction• UOMo       • Type-Safety       • Why do we need it?       • Unit-API, UOMo• Units and Healthcare  ...
Who am I?Werner Keil                 • Consultant – Coach                 • Creative Cosmopolitan                 • Open S...
Type-Safety• Java does not have strongly typed primitive types  (like e.g. Ada language).• For performance reasons most de...
What do these disasters have in common?• Patriot Missile  The cause was an inaccurate calculation of the  time since boot ...
What do these disasters have in common?• Gimli Glider (near disaster)    Fuel loading was miscalculated through misunderst...
NASA “Star Wars” Initiative, 1983                                               23rd March 1983. Ronald Reagan            ...
1985             Mirror on underside of            SDI Experiment:                     shuttle                            ...
1985                                                SDI Experiment:                                                What re...
1985: What happened?11   © 2007-2012 Creative Arts & Technologies
Unit Tests wouldn„t find these…  Despite their name• All previous example illustrate three categories of  errors difficult...
Causes of Conversion Errors• Ambiguity on the unit       • Gallon Dry / Gallon Liquid       • Gallon US / Gallon UK       ...
Eclipse UOMo  One Small Step…
Unit-API | Operations   Results with   Same Dimension               Different Dimension   Binary Operations            Bin...
Eclipse UOMo          Bundles          • UOMo currently consists of                    • UOMo Core                        ...
Eclipse UOMo          Bundles (2)                    • UOMo Units                              • Based on Units of Measure...
UOMo UCUM          Unified Code for Units of Measure          The Unified Code for Units of Measure is inspired by        ...
HL7 DSL     def mySegment = ...                                    // assignment to another     NK1 segment instance     d...
UOMo Examples  DEMO
STEM is Open Sourcehttp://www.eclipse.org/stem/downloads.php
STEM is a Framework  Epidemiological Compartment Models    Standard SEIR model                         Standard SIR model ...
The Many Vectors of Infectious Disease     Human Flu                  Swine Flu                 “Mixing Cell
US Counties (3109) Edges                             Common                           Border Edges                        ...
Goal: Evaluation of Public Health Policies                                                         Masks                  ...
Simulations Based on ICDC Influenza Dataas initial condition
Recent H1N1 Outbreak
STEM in Action  DEMO
VISION OF OPEN HEALTH TOOLSVision:To enable a ubiquitous ecosystem where members ofthe Health and IT professions can colla...
OHT | Stakeholder Communities                            Community of Health                            Professionals   Co...
OHT | Approach to Standards    Strategy:     ■   Adopt recognized industry standards and best practices in services.     ...
OHT | Clinical Application Layers            Business Use Case           Clinical Use Case          Clinical Content Model...
OHT | Based upon Eclipse Experience                                                                            The Eclipse...
OHT | Communities                                               Open Health Tools                                         ...
Let„s talkQ&A
Links   Eclipse – Project UOMo   http://www.eclipse.org/uomo/   Units of Measurement API   http://www.unitsofmeasurement.o...
Links (2)   Eclipse STEM   http://www.eclipse.org/stem   Open Health Tools   http://www.openhealthtools.org/   OpenHealth ...
Contact          werner@catmedia.us                   or          uomo@catmedia.us          Twitter: @wernerkeil          ...
